Product Descriptions

The 74LVC04A is a high-performance, low-power, low-voltage, Si-gate CMOS device and superior to most advanced CMOS compatible TTL families.

Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in a mixed 3.3 V/5 V environment.

The 74LVC04A provides six inverting buffers.

Product Features

• Wide supply range of 1.2V to 3.6V

• Complies with JEDEC standard no. 8-1A

• Inputs accept voltages up to 5.5V

• CMOS low power consumption

• Direct interface with TTL levels

• 5-volt tolerant inputs, for interfacing with 5-volt logic

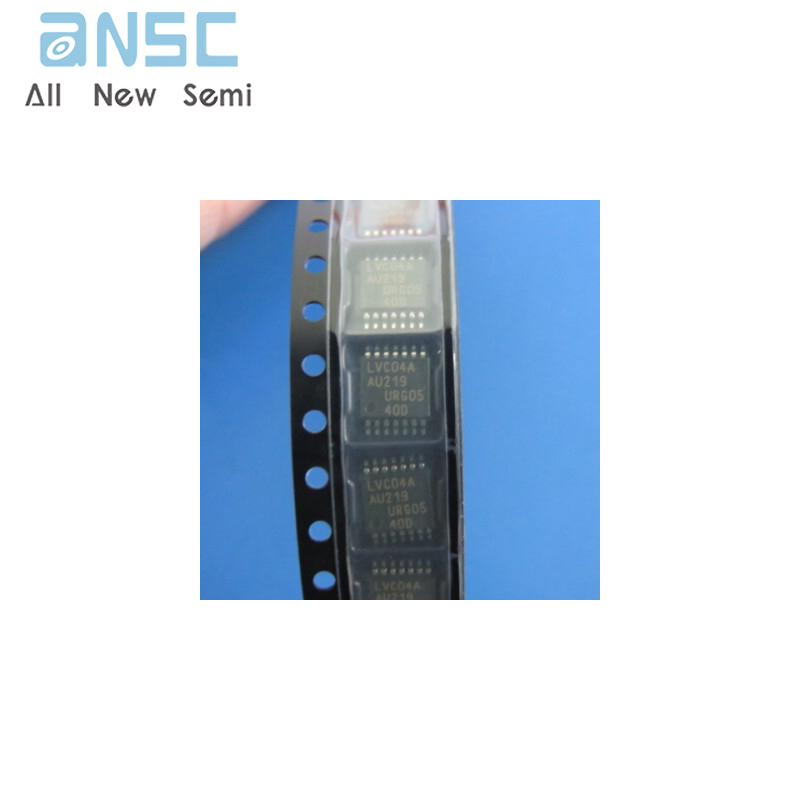

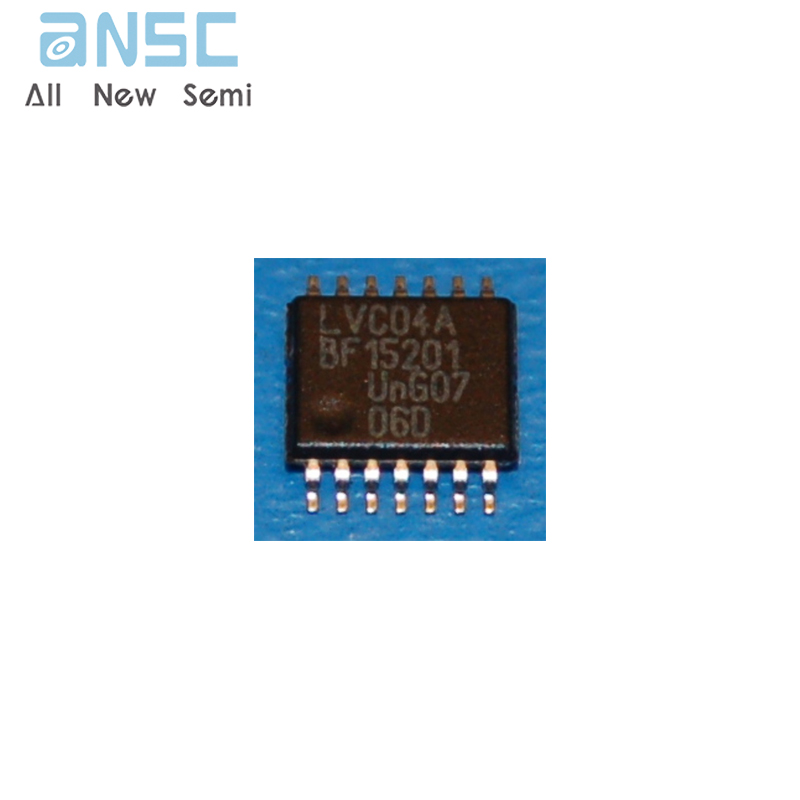

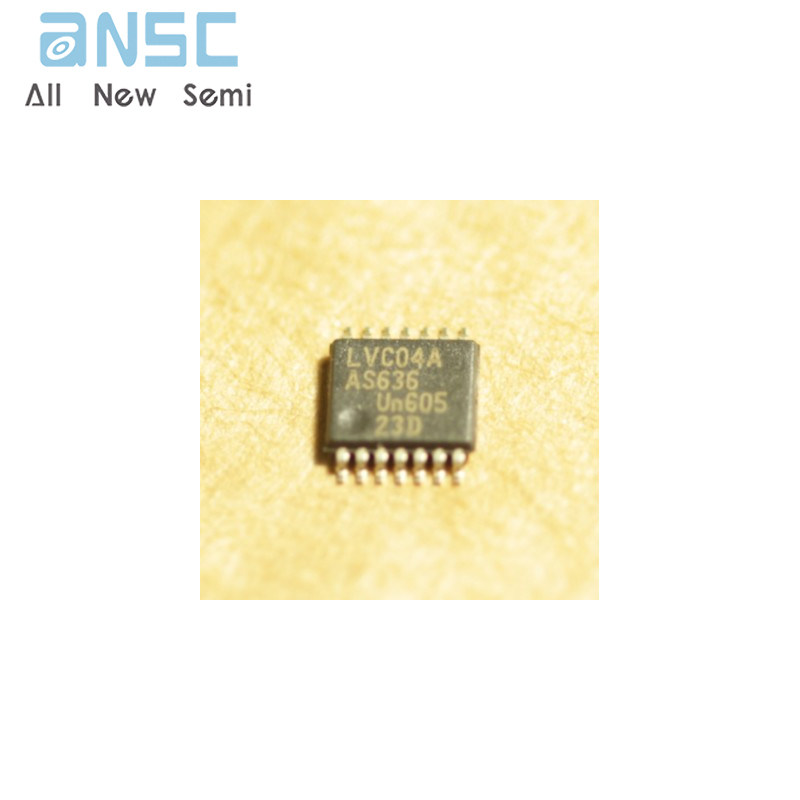

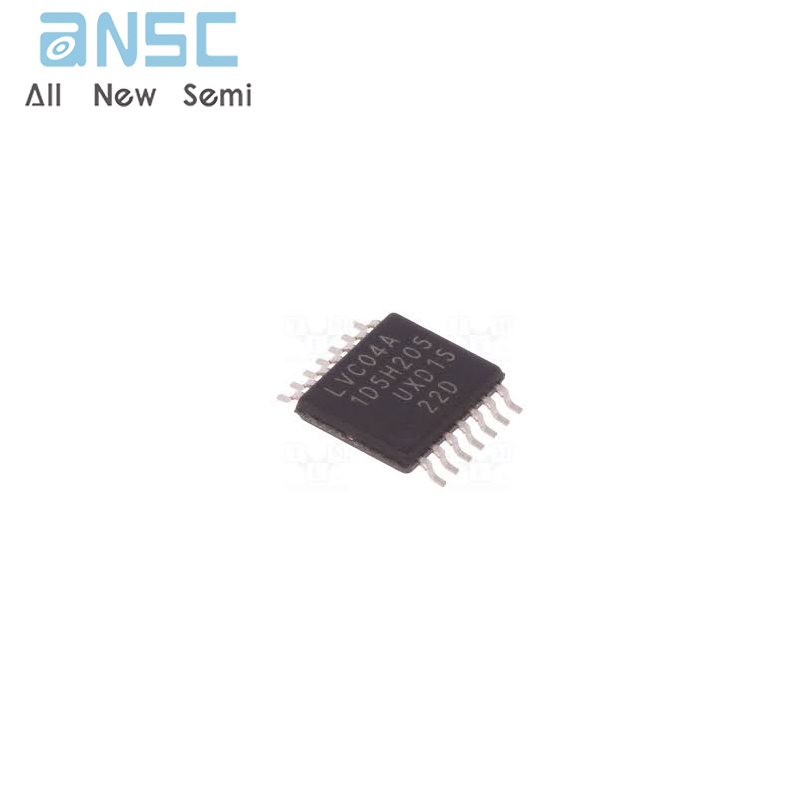

Product Photos

For more product information, please download the PDF
