Product Descriptions
The LC03-6 transient voltage suppressor is designed to protect components which are connected to high speed telecommunication lines from voltage surges caused by lightning, electrostatic discharge (ESD), cable discharge events (CDE), and electrical fast transients (EFT).
TVS diodes are ideal for use as board level protection of sensitive semiconductor components. The LC03-6 combines a TVS diode with a rectifier bridge to provide transient protection in both common and differential mode with a single device. The capacitance of the device is minimized (< 25pF) to ensure correct signal transmission on high speed lines . The LC03-6 meets the short-haul (intra-building) transient immunity requirements of Bellcore 1089 for telecommunications applications.
The SO-8 surface mount package allows flexibility in the design of crowded PC boards.
Product Features
2000 watts peak pulse power (tp = 8/20µs)
Transient protection for high-speed data lines to Bellcore 1089 (Intra-Building) 100A (2/10µs)
ITU K.20 IPP=40A (5/310µs)
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 100A (8/20µs)
Protects two lines in common and differential mode
Low capacitance for high-speed interfaces
Low clamping and operating voltage
Integrated structure saves board space and
increases reliability
Solid-state silicon avalanche technology
Product Applications
T1/E1 Line Cards
T3/E3 and DS3 Interfaces
STS-1 Interfaces
ISDN S/T-Interfaces
ISDN U-Interfaces
10/100 Ethernet
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LC03-6.TBT |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Voltage - Breakdown (Min) | 6.8V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse (10/1000µs) | 100A (8/20µs) |
| Power - Peak Pulse | 2000W (2kW) |
| Power Line Protection | Yes |
| Applications | Ethernet |
| Capacitance @ Frequency | 16pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | LC03 |

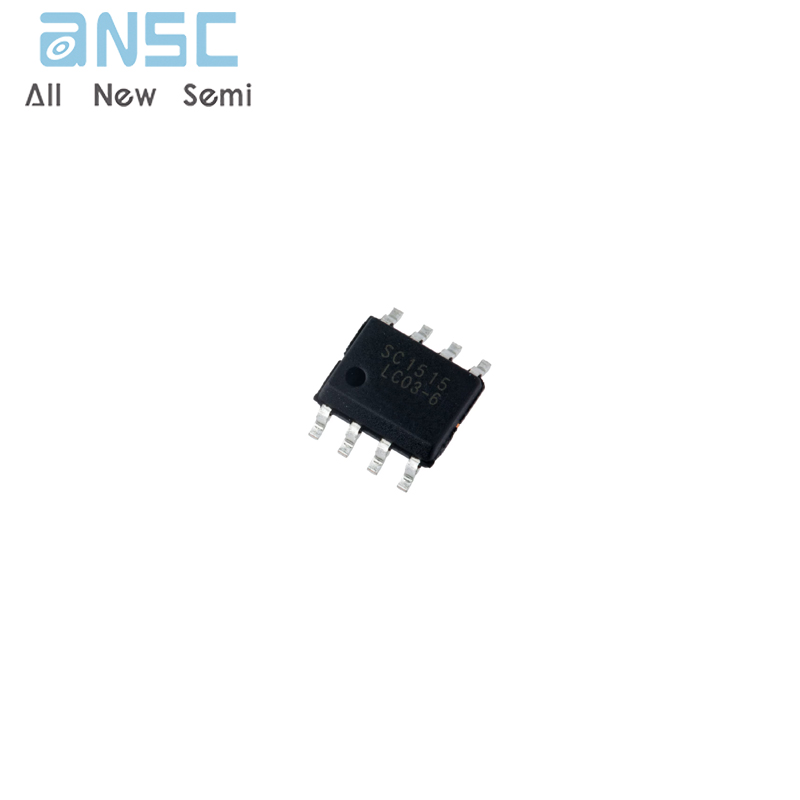

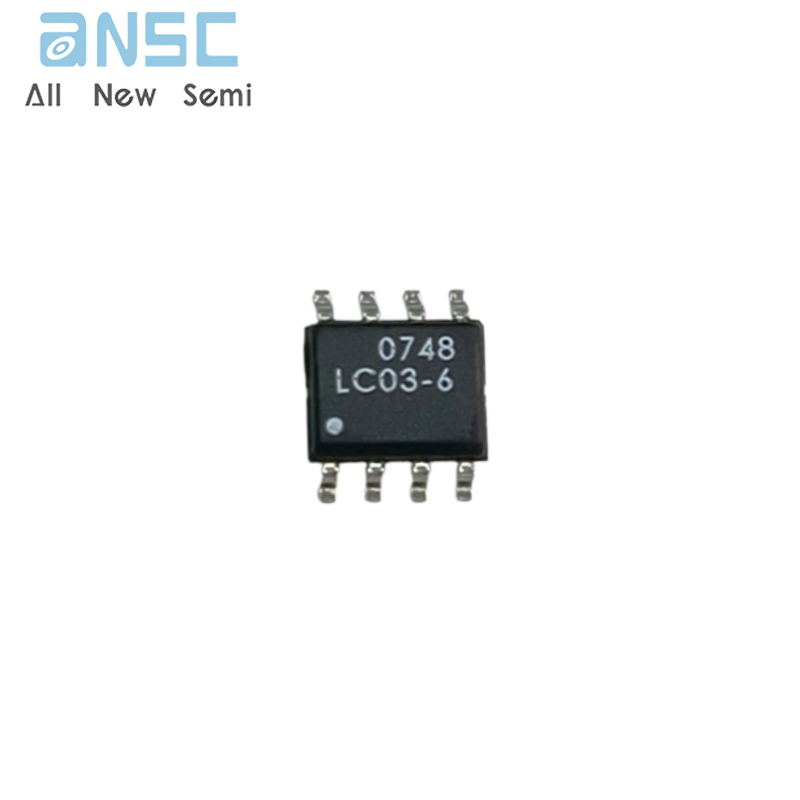

Product Photos
For more product information, please download the PDF
