Product Descriptions

The TQM7M9050 is a fully matched multimode multiband Power Amplifier Module that supports Quad-band Linear GSM/EDGE, W/CDMA & LTE Bands 1, 2, 3/4, 5,& 8. The GSM PA output power is controlled by the input power coming from the transceiver in both GMSK and 8PSK modes. The 2- Gain state WCDMA PA operates in LPM and HPM to maximize talk time over the entire range of operating conditions. It also includes a coupler and built-in regulator, ideal for today’s extremely small data enabled phones.

The TQM7M9050 is designed on TriQuint’s GaAs HBT technology with CuFlip® assembly offering state of the art reliability, temperature stability and ruggedness. RF performance meets the stringent linearity requirements for multi-mode operation.

Product Features

• Quad-Band Linear GSM/EDGE

• UMTS B1,2,3/4 and B5,8

• Input power controlled – GMSK and 8PSK

• GSM has 2 modes – HPM, LPM

• W/CDMA has 2 modes – HPM, LPM

• HBT / CuFlip® PA Technology

• Integrated coupler and Band distribution switches

• Built-in voltage regulator

• 50Ω input and Output Impedance

• Lead-free 260°C / RoHS / Halogen-free

• 42 Pin 5x7x1.0 mm Package

Product Applications

• GSM/EDGE/WCDMA/LTE Applications

• PB WCDMA + QB EDGE Applications

• HSDPA/HSUPA/HSPA+ Applications

• LTE Applications / EVDO rev A/B

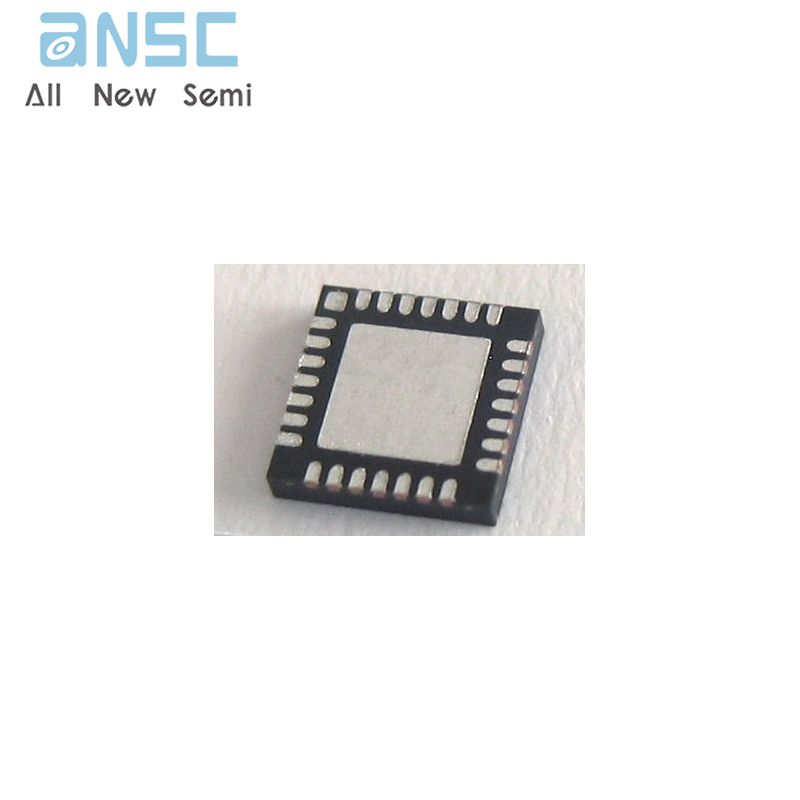

Product Photos

For more product information, please download the PDF
