Product Descriptions
The ’HC594 devices contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Separate clocks and direct overriding clear (RCLR, SRCLR) inputs are provided on both the shift and storage registers. A serial (QH′ ) output is provided for cascading purposes.
Both the shift register (SRCLK) and storage register (RCLK) clocks are positive edge triggered. If both clocks are connected together, the shift register always is one count pulse ahead of the storage register.
The parallel (QA−QH) outputs have high-current capability. QH′ is a standard output.
Product Features
Wide Operating Voltage Range of 2 V to 6 V
High-Current Outputs Can Drive Up To 15 LSTTL Loads
Low Power Consumption, 80-µA Max ICC
Typical tpd = 15 ns
±6-mA Output Drive at 5 V
Low Input Current of 1 µA Max
8-Bit Serial-In, Parallel-Out Shift Registers With Storage
Independent Direct Overriding Clears on Shift and Storage Registers
Independent Clocks for Both Shift and Storage Registers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HC594DWR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Shift Registers | |
| Manufacturer | - |
| Series | 74HC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Shift Register |
| Output Type | Push-Pull |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Function | Serial to Parallel |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74HC594 |

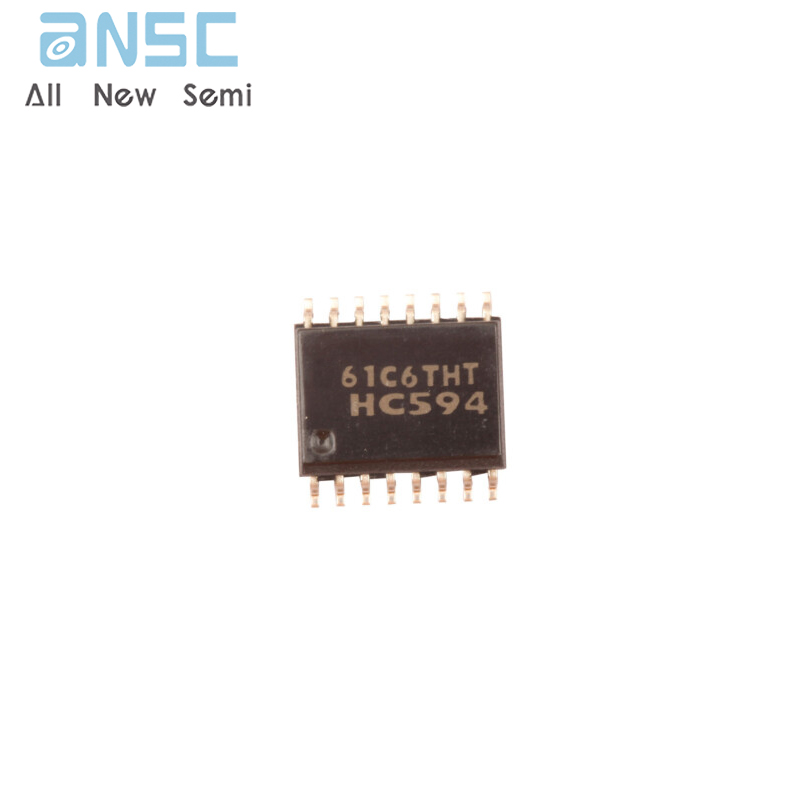

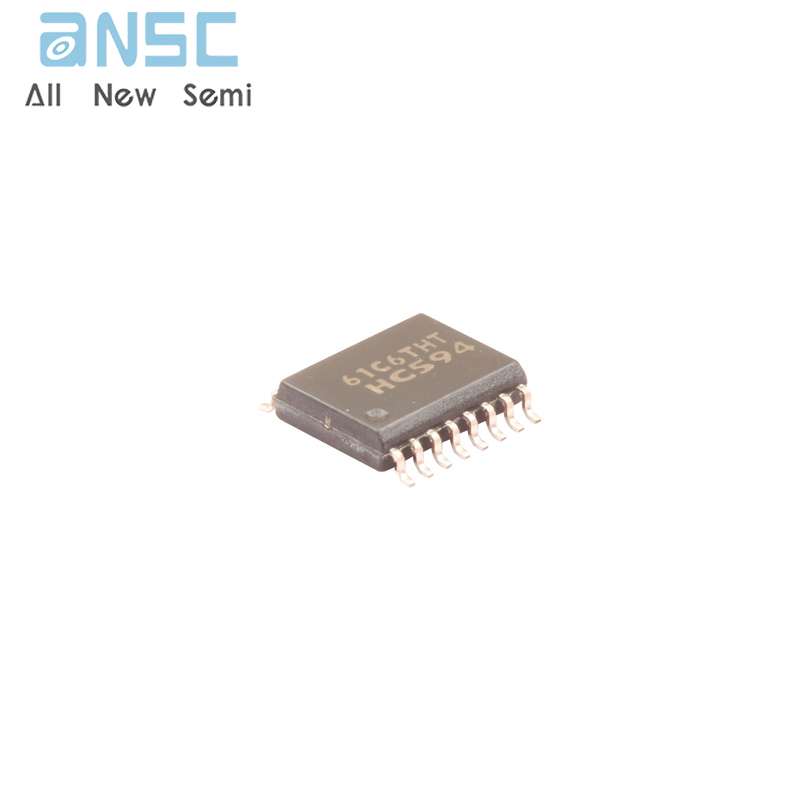

Product Photos
For more product information, please download the PDF
