Product Descriptions

These devices have been especially designed to protect new high voltage, as well as classical SLICs, against transient overvoltages.

Positive overvoltages are clamped by 2 diodes. Negative surges are suppressed by 2 thyristors, their breakdown voltage being referenced to -VBAT through the gate.

These components present a very low gate triggering current (IGT) in order to reduce the current consumption on printed circuit board during the firing phase.

Product Features

■ Dual programmable transient suppressor

■ Wide negative firing voltage range:

VMGL = -150 V max.

■ Low dynamic switching voltages:

VFP and VDGL

■ Low gate triggering current: IGT = 5 mA max

■ Peak pulse current: IPP = 30 A (10/1000 µs)

■ Holding current: IH = 150 mA min

■ Low space consuming package

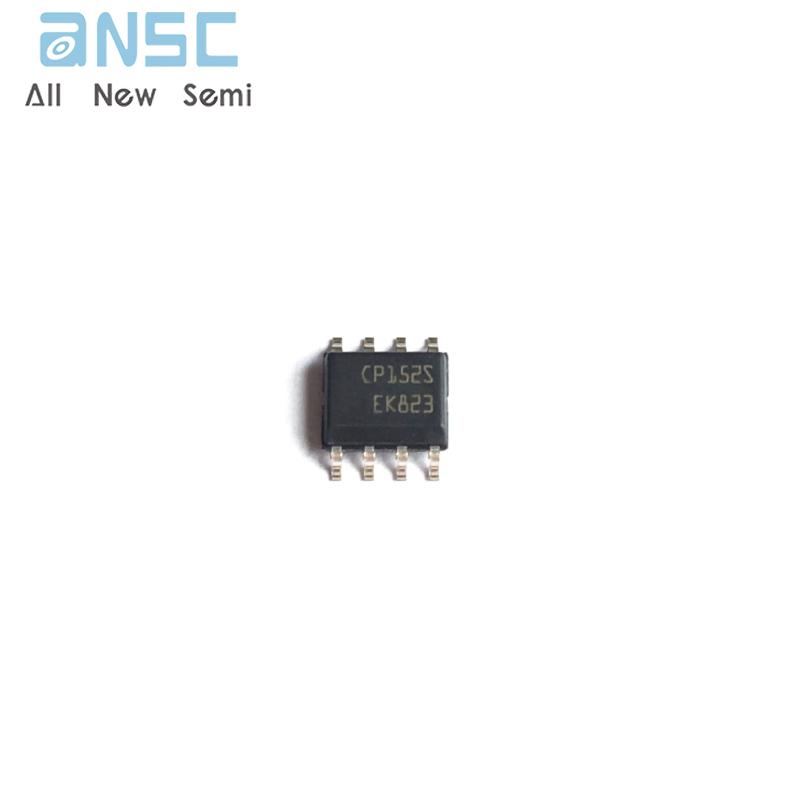

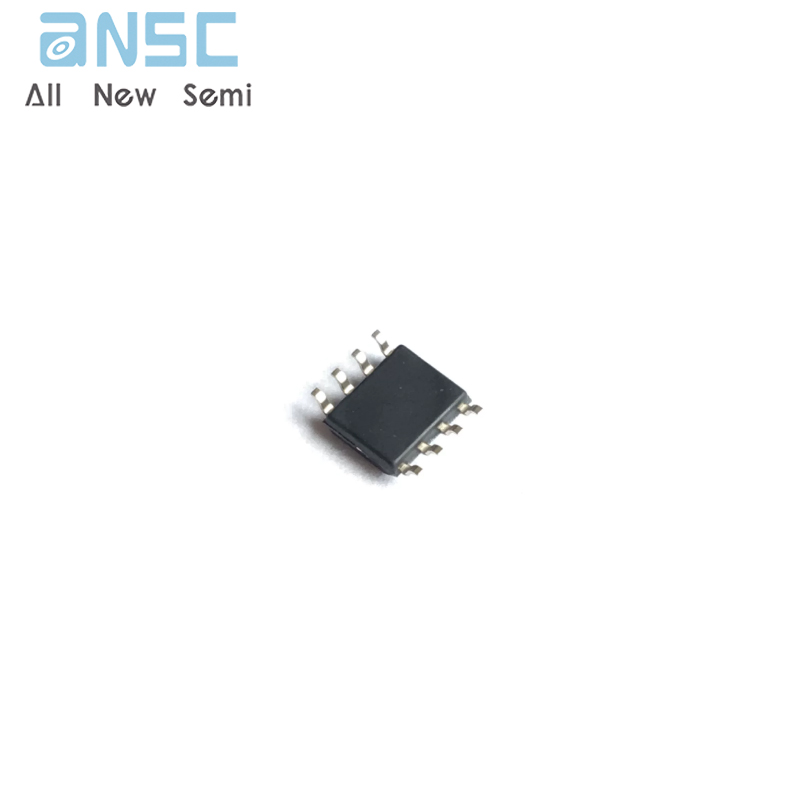

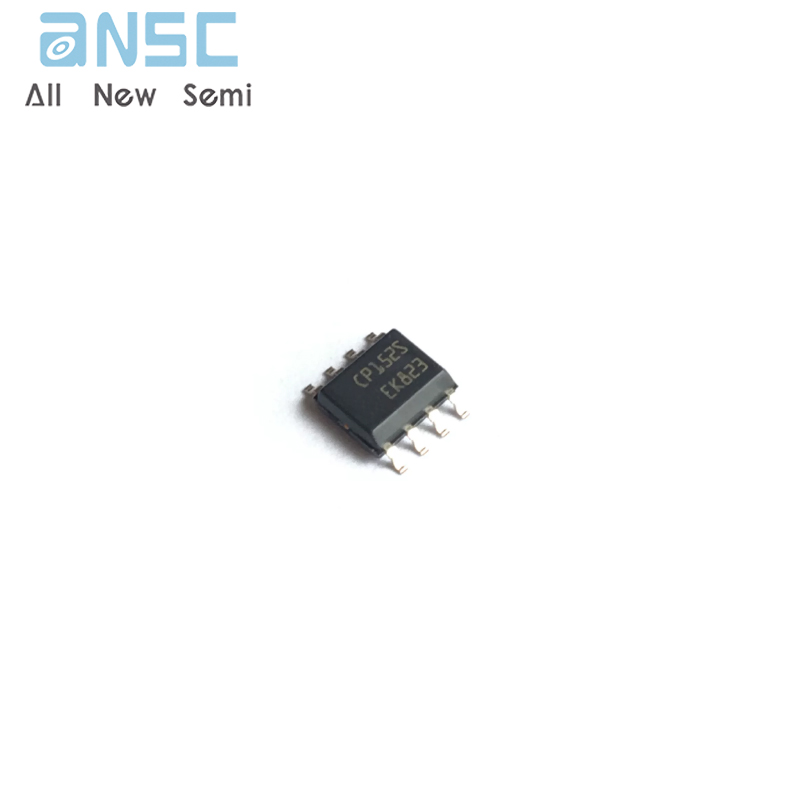

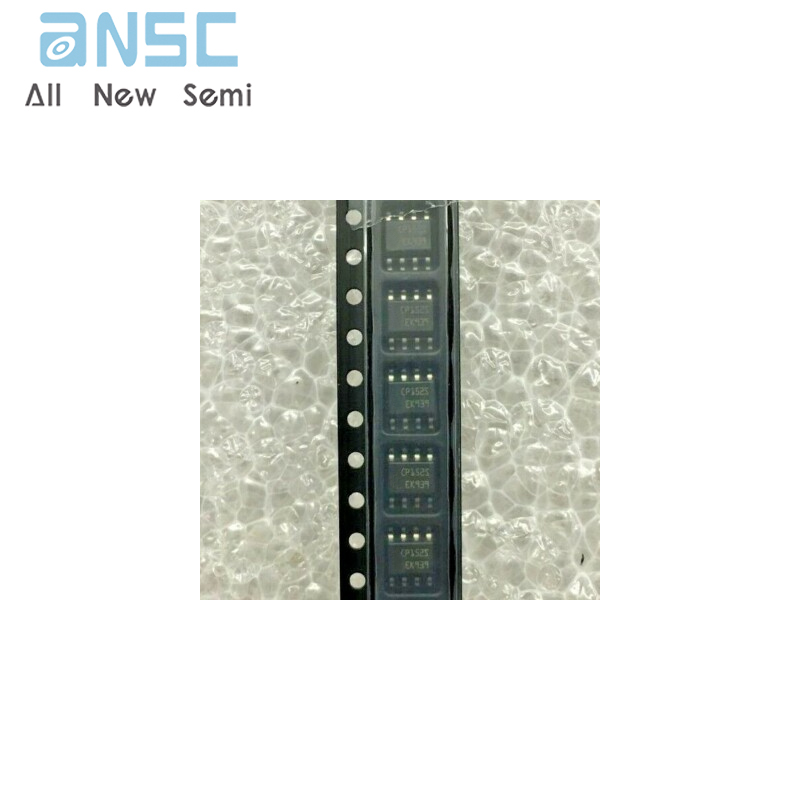

Product Photos

For more product information, please download the PDF
