Product Descriptions
The ADV202 is a single-chip JPEG2000 codec targeted for video and high bandwidth image compression applications that can benefit from the enhanced quality and feature set provided by the JPEG2000 (J2K)—ISO/IEC15444-1 image compression standard. The part implements the computationally intensive operations of the JPEG2000 image compression standard as well as providing fully compliant code-stream generation for most applications.
The ADV202’s dedicated video port provides glueless connection to common digital video standards such as ITU.R-BT656, SMPTE125M, SMPTE293M (525p), ITU.R-BT1358 (625p), SMPTE274M (1080i), or SMPTE296M (720p). A variety of other high speed, synchronous pixel and video formats can also be supported using the programmable framing and validation signals.
Product Features
Complete single-chip JPEG2000 compression and
decompression solution for video and still images
Patented SURF® (spatial ultra-efficient recursive filtering)
technology enables low power and low cost waveletbased compression
Supports both 9/7 and 5/3 wavelet transforms with up to
6 levels of transform
Programmable tile/image size with widths up to 2048 pixels in
3-component 4:2:2 interleaved mode, and up to 4096 pixels
in single-component mode
Maximum tile/image width: 4096 pixels
Video interface directly supporting ITU.R-BT656,
SMPTE125M PAL/ NTSC, SMPTE274M, SMPTE293M (525p),
ITU.R-BT1358 (625p) or any video format with a maximum
input rate of 65 MSPS for irreversible mode or 40 MSPS for
reversible mode
Two or more ADV202s can be combined to support fullframe SMPTE274M HDTV (1080i) or SMPTE296M (720p)
Flexible asynchronous SRAM-style host interface allows
glueless connection to most 16-/32-bit microcontrollers and ASICs
Product Applications
Networked video and image distribution systems
Wireless video and image distribution
Image archival/retrieval
Digital CCTV and surveillance systems
Digital cinema systems
Professional video editing and recording
Digital still cameras
Digital camcorders
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADV202BBCZ-150 |
| Category | Integrated Circuits (ICs) |
| Interface | |
| CODECS | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Obsolete |
| Type | Video, JPEG2000 |
| Resolution (Bits) | 16 b |
| Sigma Delta | No |
| Voltage - Supply, Analog | 1.5V, 3.3V |
| Voltage - Supply, Digital | 1.5V, 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 144-BGA, CSPBGA |
| Supplier Device Package | 144-CSPBGA (13x13) |
| Base Product Number | ADV202 |

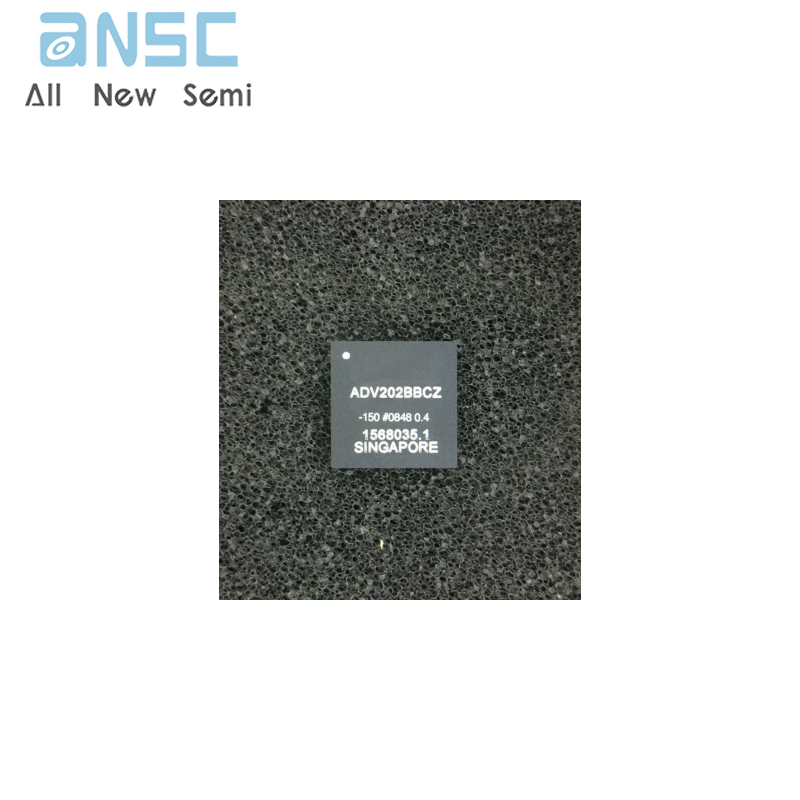

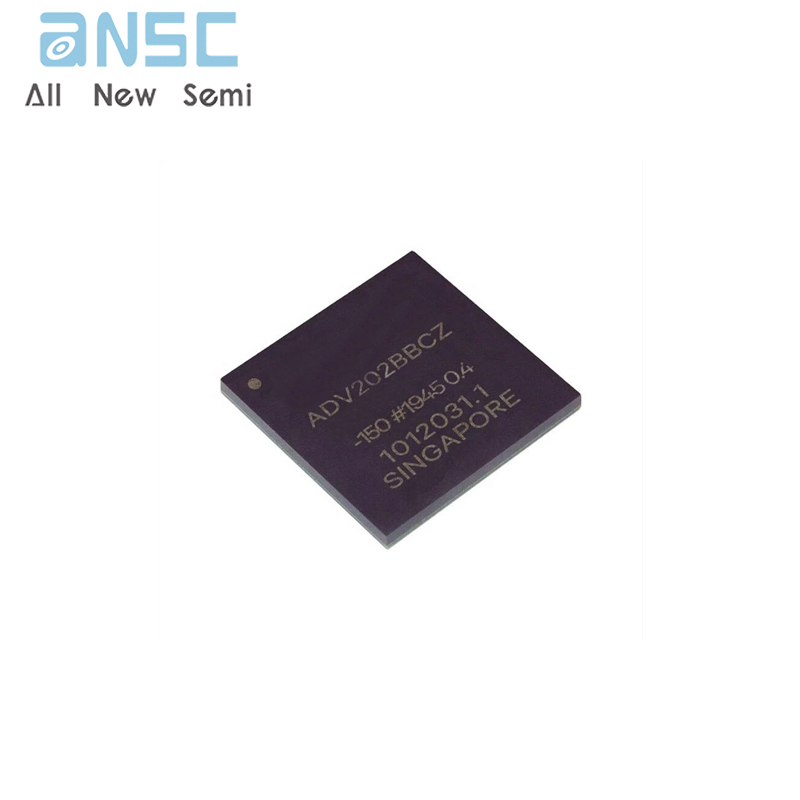

Product Photos
