Product Features

• Board Controller for up to

– 32 ISDN or 64 analog subscribers (PEB 2055)

– 16 ISDN or 32 analog subscribers (PEB 2054)

• Non-blocking switch for

– 128 channels (PEB 2055)

– 64 channels (PEB 2054)

• Switching of 16-, 32-, or 64-kbit/s channels

• Two consecutive 64-kbit/s channels can be switched as a single 128-kbit/s channel

• Freely programmable time slot assignment for all subscribers

• Two serial interfaces (PCM and CFI) programmable over a wide data range (128 -8192 kbit/s)

• Data rates of PCM and configurable interface independent from each other (data rate adaptation)

• PCM-interface

– Tristate control signals for external drivers

– Programmable clock shift

– Single or double data clock

• Configurable interface

– Configurable for IOM-, SLD- and PCM-applications

– High degree of flexibility for datastream adaptation

– Programmable clockshift

– Single or double data clock

• Synchronous µP-access to two selected channels

Handling of Layer-1 Functions

• Change detection for C/I-channel (IOM-configuration) or feature control (SLD-configuration)

• Double last-look logic for C/I-channel (IOM-2 analog configuration)

• Additional last-look logic for feature control (SLD-configuration)

• Buffered monitor (IOM-configuration) or signaling channel (SLD-configuration)

Product Specification

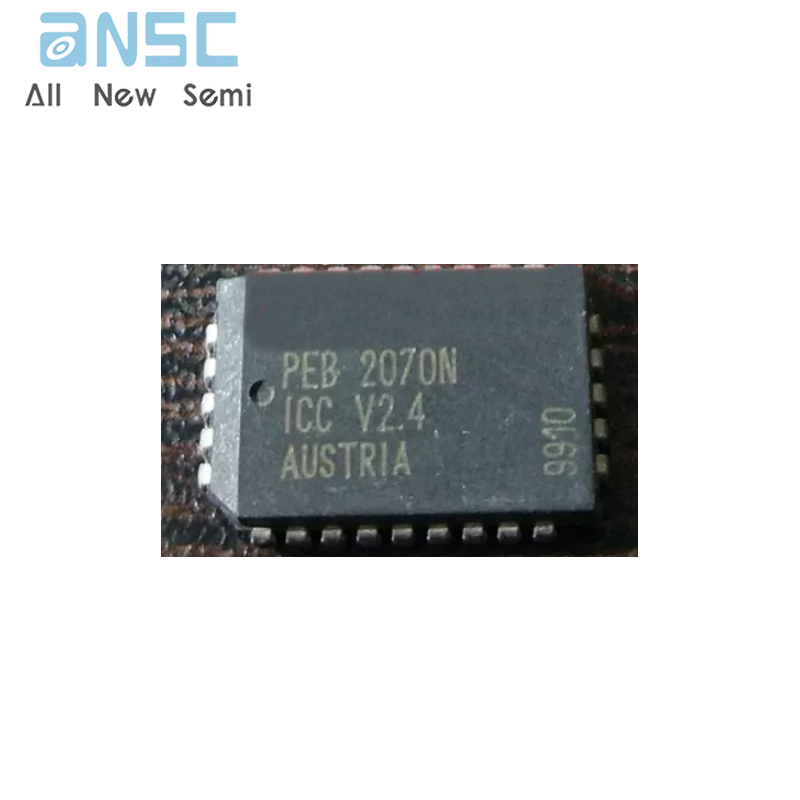

Product Photos

For more product information, please download the PDF
