Product Descriptions

The SN65C1167E and SN65C1168E consist of dual drivers and dual receivers with ±15kV ESD (Human Body Model [HBM]) and ±8-kV ESD (IEC61000-4-2 Air-Gap Discharge and Contact Discharge) for RS-422 bus pins. The devices meet the requirements of TIA/EIA-422-B and ITU recommendation V.11.

The SN65C1167E combines dual 3-state differential line drivers and 3-state differential line receivers, both of which operate from a single 5V power supply. The driver and receiver have active-high and activelow enables, respectively, which can be connected together externally to function as direction control.

SN65C1168E drivers have individual active-high enables.

Product Features

• Meet or exceed standards TIA/EIA-422-B and ITU recommendation V.11

• Operate from single 5V power supply

• ESD Protection for RS-422 bus pins

– ±15kV Human-body model (HBM)

– ±8kV IEC 61000-4-2, Contact discharge

– ±8kV IEC 61000-4-2, Air-gap discharge

• Low supply-current requirements: 9mA maximum

• Low pulse skew

• Receiver input impedance: 17kΩ (Typical)

• Receiver input sensitivity: ±200mV

• Receiver common-mode input voltage range of –7V to +7V

• Glitch-free power-up and power-down protection

• Receiver 3-state outputs active-low enable (SN65C1167E only)

Product Applications

• AC and servo motor drives

• Factory automation and control

• Wireless infrastructure

Product Specification

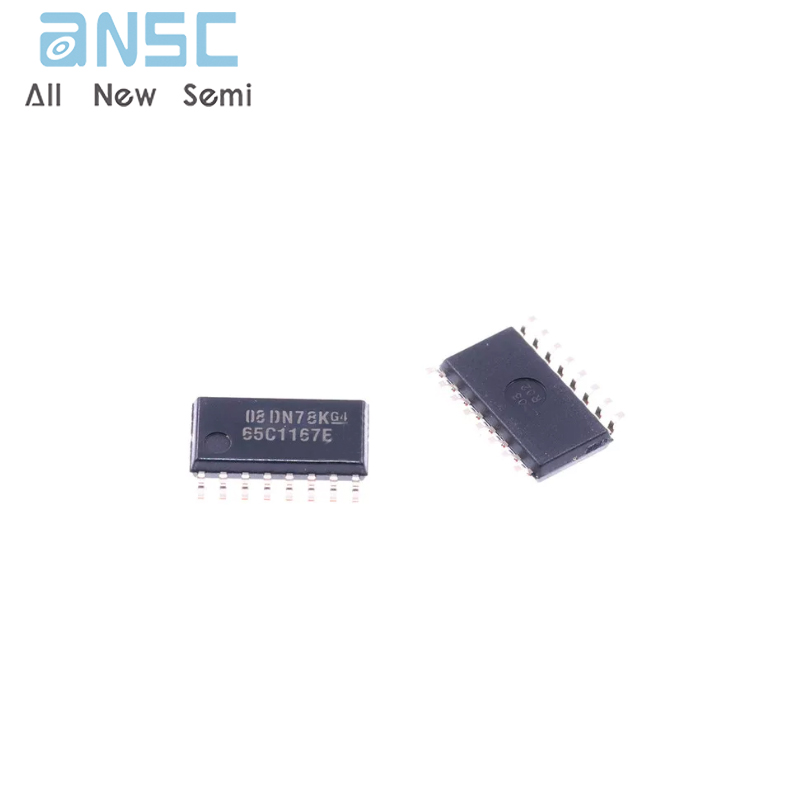

Product Photos

For more product information, please download the PDF
