Product Features
Outputs Source/Sink 24 mA
ACT04 Has TTL Compatible Inputs
These are Pb−Free Devices
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC74ACT04DR2 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74ACT |
| Packaging | Bulk |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 8.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74ACT04 |

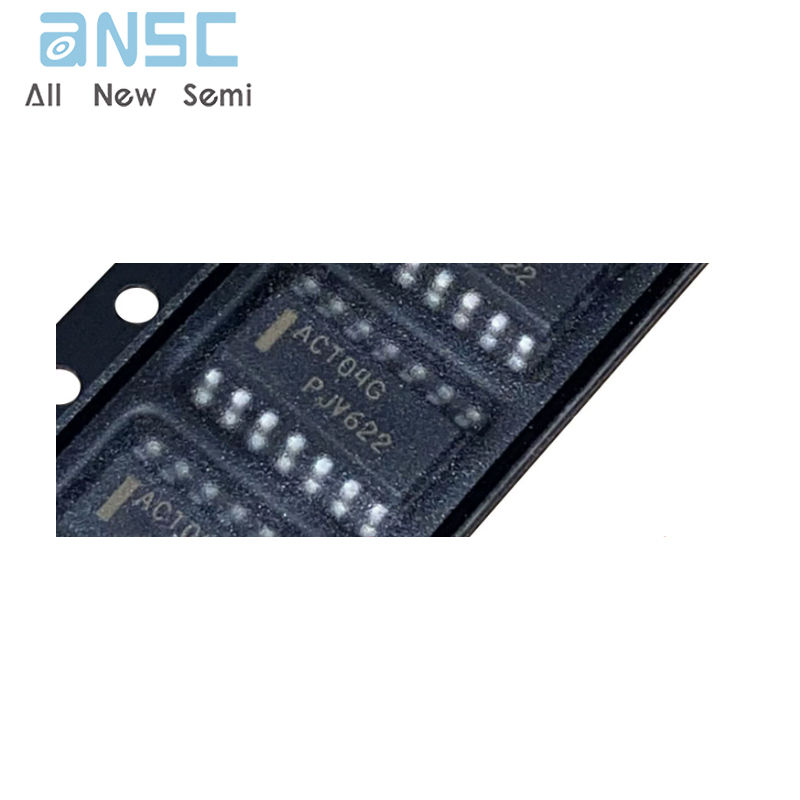

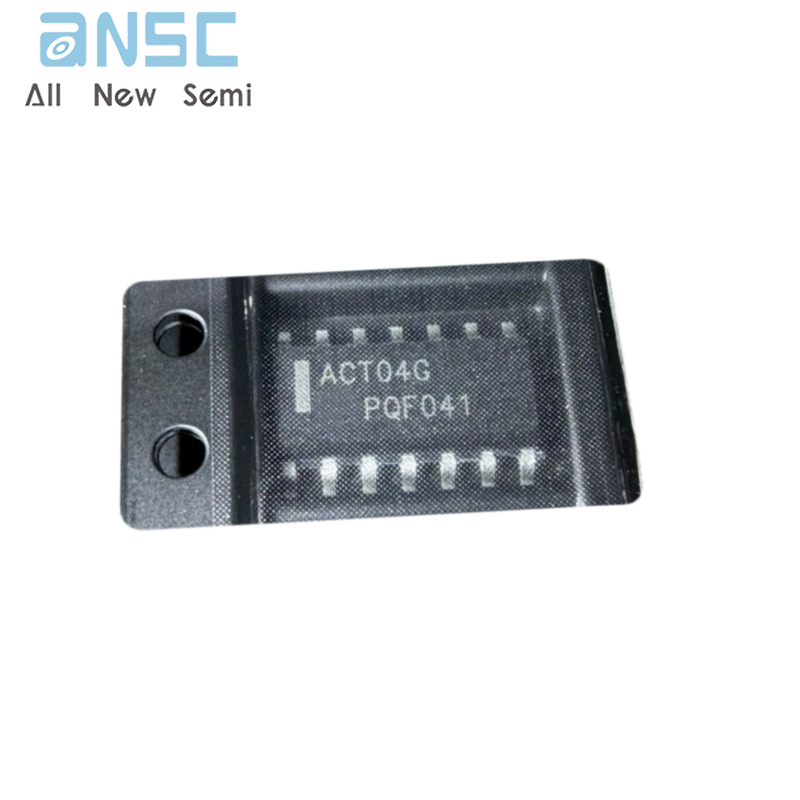

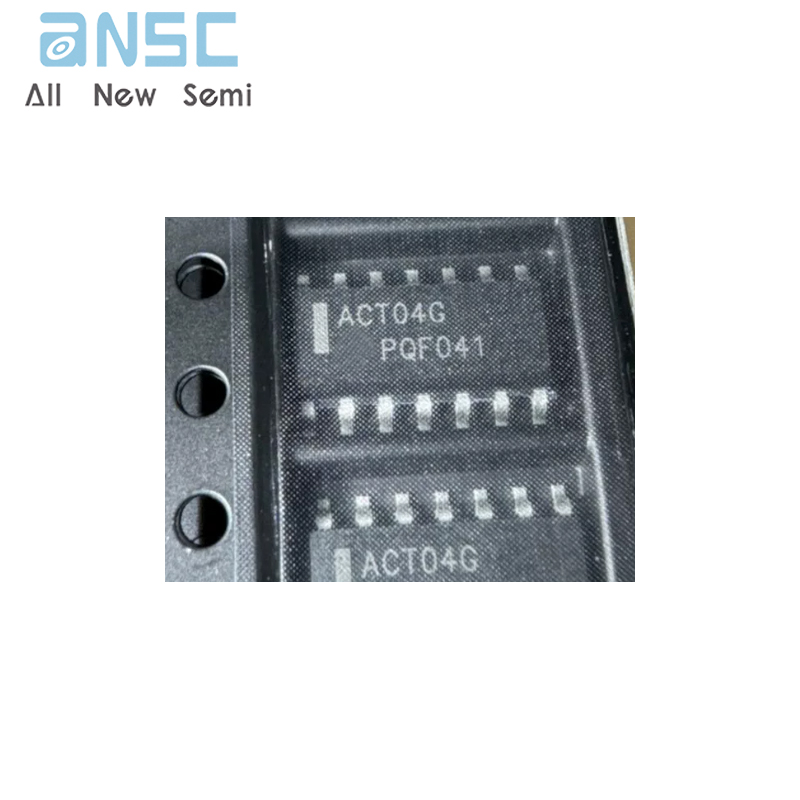

Product Photos
For more product information, please download the PDF
