Product Descriptions

The AD7871 and AD7872 are fast, complete, 14-bit analog-todigital converters. They consist of a track/hold amplifier, successive-approximation ADC, 3 V buried Zener reference and versatile interface logic. The ADC features a self-contained, laser trimmed internal clock, so no external clock timing components are required. The on-chip clock may be overridden to synchronize ADC operation to the digital system for minimum noise.

The AD7871 offers a choice of three data output formats: a single, parallel, 14-bit word; two 8-bit bytes or a 14-bit serial data stream. The AD7872 is a serial output device only. The two parts are capable of interfacing to all modern microprocessors and digital signal processors.

The AD7871 and AD7872 operate from ±5 V power supplies, accept bipolar input signals of ±3 V and can convert full power signals up to 41.5 kHz.

In addition to the traditional dc accuracy specifications, the AD7871 and AD7872 are also fully specified for dynamic performance parameters including distortion and signal-to-noise ratio.

Both devices are fabricated in Analog Devices’ LC2 MOS mixed technology process. The AD7871 is available in 28-pin plastic DIP and PLCC packages. The AD7872 is available in a 16-pin plastic DIP, hermetic DIP and 16-lead SOIC packages.

Product Features

Complete Monolithic 14-Bit ADC

2s Complement Coding

Parallel, Byte and Serial Digital Interface

80 dB SNR at 10 kHz Input Frequency

57 ns Data Access Time

Low Power—50 mW typ

83 kSPS Throughput Rate

16-Lead SOIC (AD7872)

Product Applications

Digital Signal Processing

High Speed Modems

Speech Recognition and Synthesis

Spectrum Analysis

DSP Servo Control

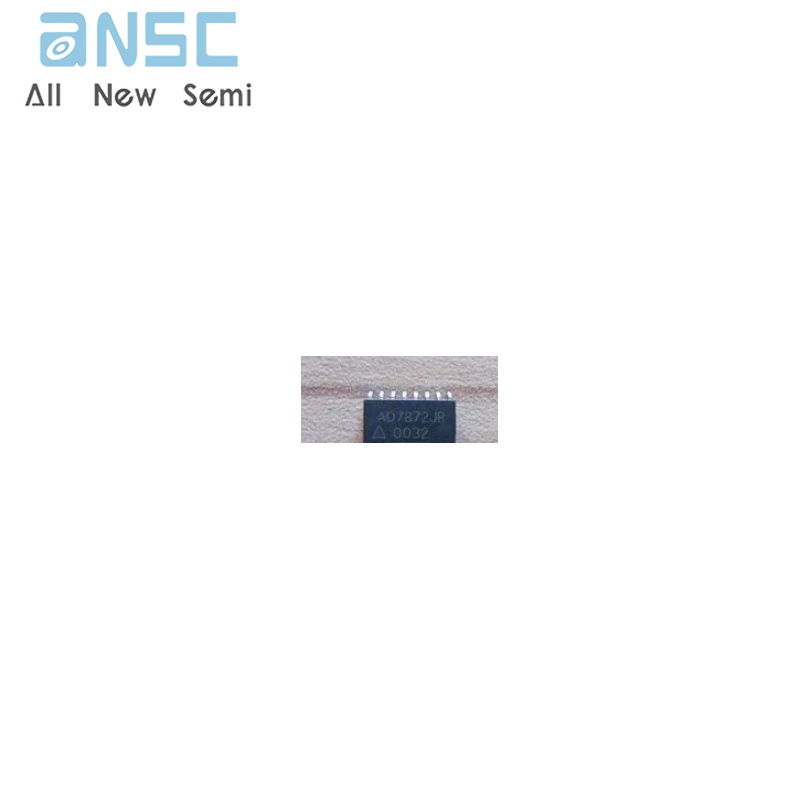

Product Photos

For more product information, please download the PDF
