Product Descriptions
The HI-301 and HI-303 series of switches are monolithic devices fabricated using CMOS technology and the Intersil dielectric isolation process. These switches feature break before-make switching, low and nearly constant ON resistance over the full analog signal range, and low power dissipation, (a few mW for the Hl-301 and HI-303).
The HI-301 and HI-303 are TTL compatible and have a logic “0” condition with an input less than 0.8V and a logic “1” condition with an input greater than 4V. (See pinouts for switch conditions with a logic “1” input.)
Product Features
• Analog Signal Range (±15V Supplies) . . . . . . . . . . ±15V
• Low Leakage at 25oC . . . . . . . . . . . . . . . . . . . . . . . 40pA
• Low Leakage at 125oC . . . . . . . . . . . . . . . . . . . . . . . 1nA
• Low On Resistance at 25oC . . . . . . . . . . . . . . . . . . . 35Ω
• Break-Before-Make Delay . . . . . . . . . . . . . . . . . . . . 60ns
• Charge Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . 30pC
• TTL, CMOS Compatible
• Symmetrical Switch Elements
• Low Operating Power (Typ) . . . . . . . . . . . . . . . . . . . . 1.0mW
Product Applications
• Sample and Hold (i.e., Low Leakage Switching)
• Op Amp Gain Switching (i.e., Low On Resistance)
• Portable, Battery Operated Circuits
• Low Level Switching Circuits
• Dual or Single Supply Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HI9P0301-5 |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Active |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 50Ohm |
| Voltage - Supply, Single (V+) | 44V |
| Voltage - Supply, Dual (V卤) | ±22V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| Channel Capacitance (CS(off), CD(off)) | 16pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |

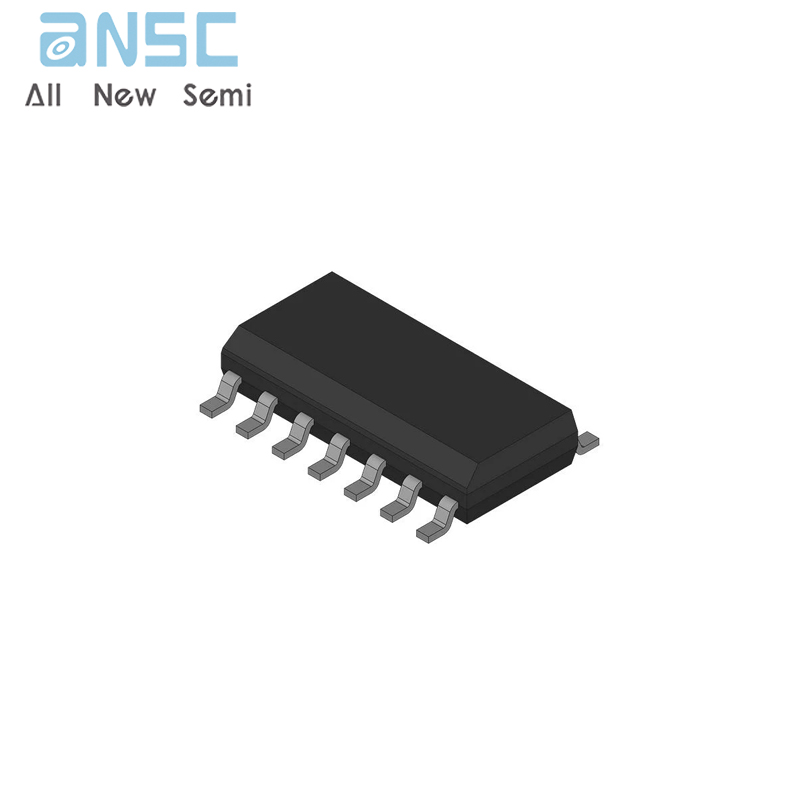

Product Photos
