Product Descriptions
The MCT5211 is a optocoupler with a high efficiency AIGaAs LED optically coupled to a NPN phototransistor. The high performance LED makes operation at low input currents practical. The coupler is housed in a six pin DIP package. Isolation test voltage is 5300 VRMS.
Because these parts have guaranteed CTRs at 1 mA and 3 mA, they are ideally suitable for interfacing from CMOS to TTL or LSTTL to TTL. They are also ideal for telecommunications applications such as ring or off-hook detection.
Product Features
• Saturation CTR - MCT5211, > 100 percent at IF = 1.6 mA
• High isolation voltage, 5300 VRMS
• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Product Applications
• UL1577, file no. E52744 system code H, double protection
• BSI IEC 60950; IEC 60065
• DIN EN 60747-5-2 (VDE 0884)/DIN EN 60747-5-5 (pending), available with option 1
• CSA 93751
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MCT5211 |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 150% @ 1.6mA |
| Turn On / Turn Off Time (Typ) | 20µs, 20µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 30V |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 40 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Base Product Number | MCT52 |

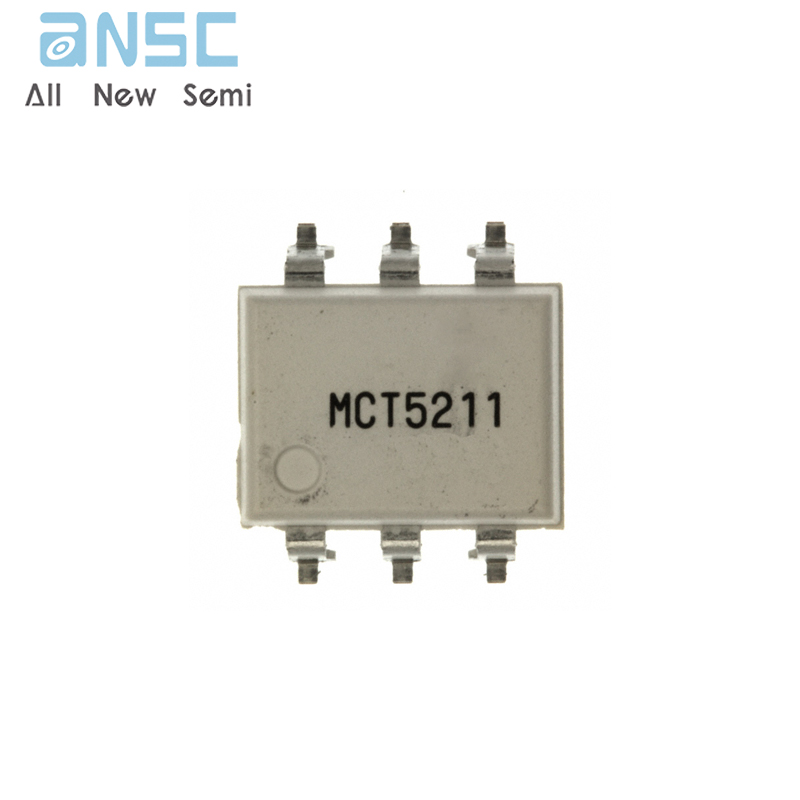

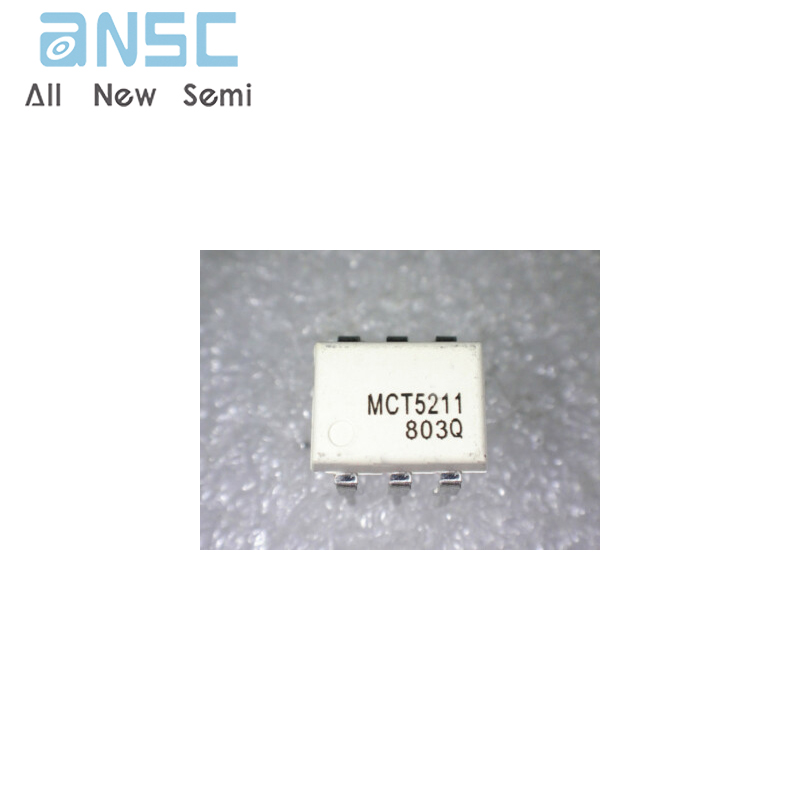

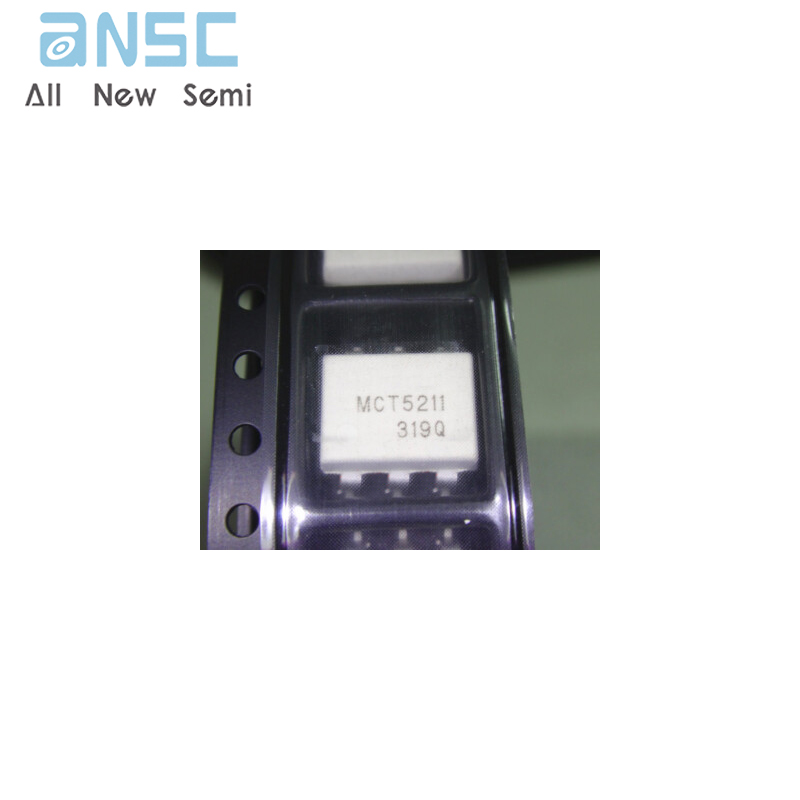

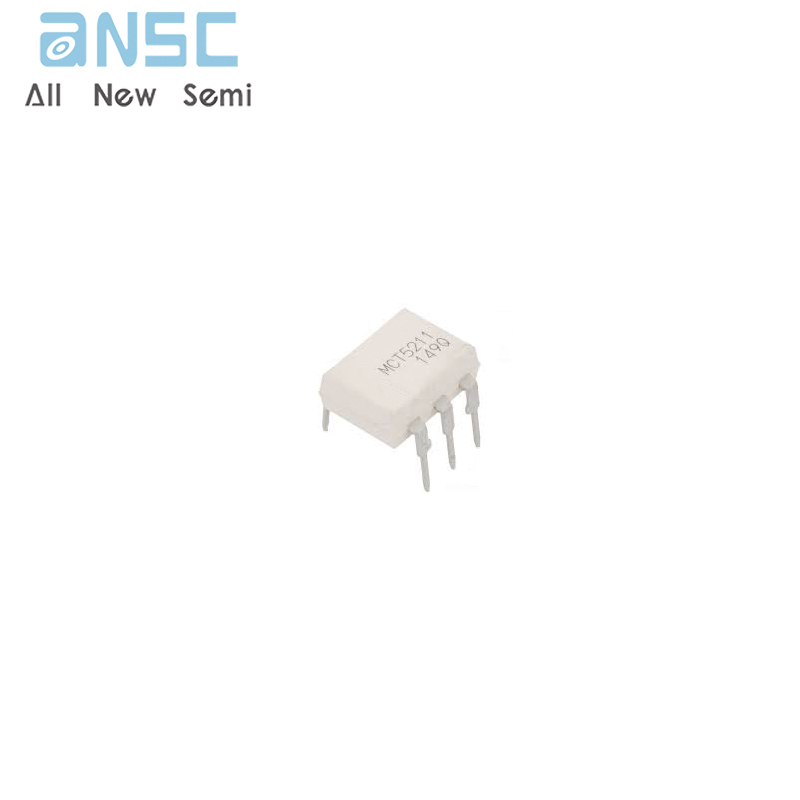

Product Photos
For more product information, please download the PDF
