Product Descriptions
The MJE802 and MJE803 are silicon epitaxial-base NPN transistors in monolithic Darlington configuration and are mounted in Jedec SOT-32 plastic package.They are intended for use in medium power linear and switching applications.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MJE802 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 4A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 1.5A, 3V |
| Power - Max | 40 W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-225AA, TO-126-3 |
| Supplier Device Package | SOT-32 |
| Base Product Number | MJE802 |

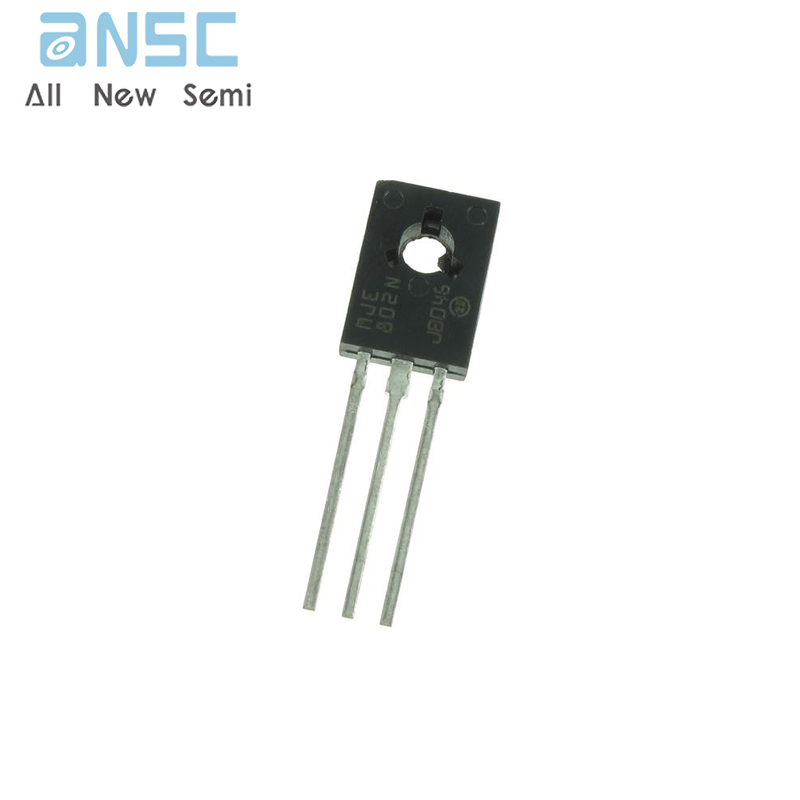

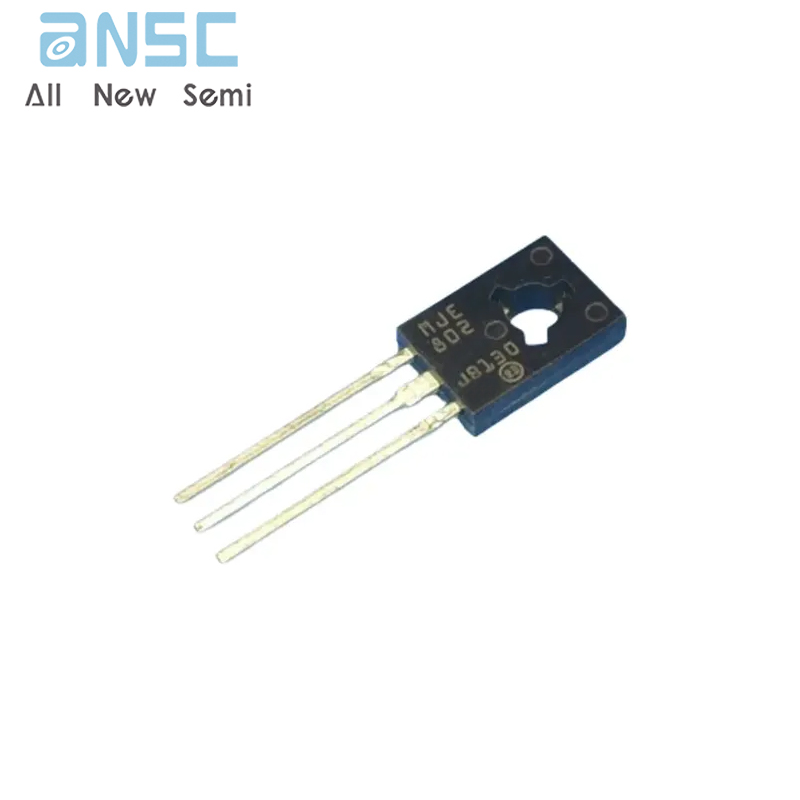

Product Photos
