Product Features

• Five independent 16-bit counters

• High speed counting rates

• Up/down and binary/BCD counting

• Internal oscillator frequency source

• Tapped frequency scaler

• Programmable frequency output

• 8-bit or 16-bit bus interface

• Time-of-day option

• Alarm comparators on counters 1 and 2

• Complex duty cycle outputs

• One-shot or continuous outputs

• Programmable count/gate source selection

• Programmable input and output polarities

• Programmable gating functions

• Retriggering capability

• +5 volt power supply

• Standard 40-pin package

• SMD/DESC qualified

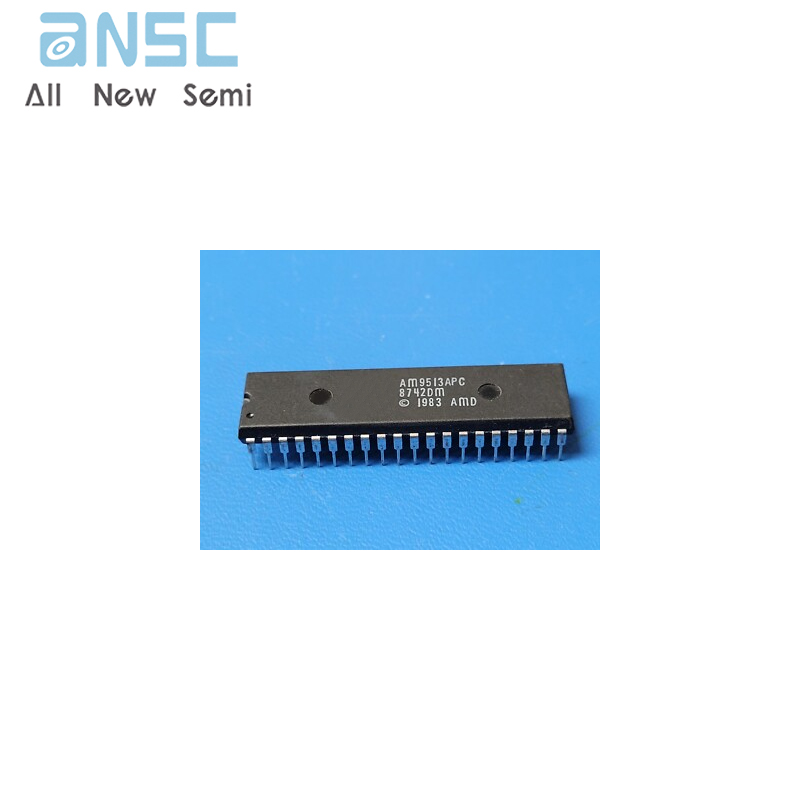

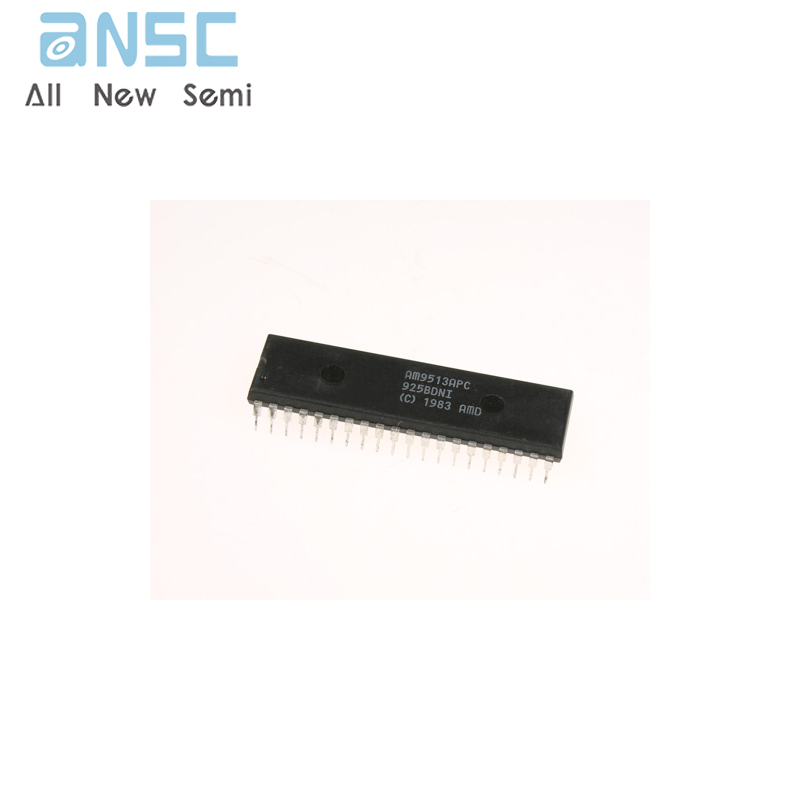

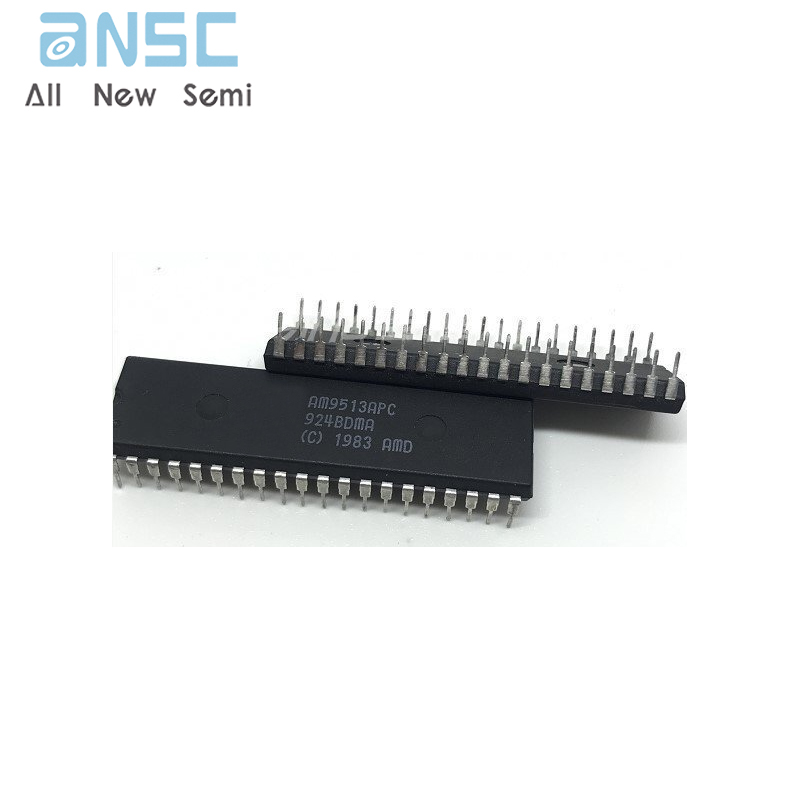

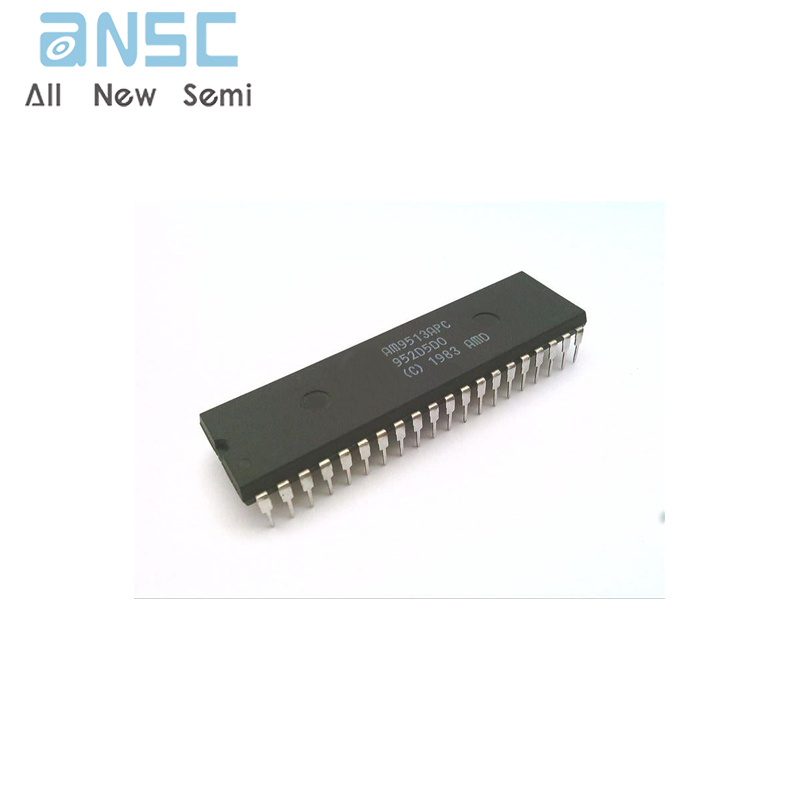

Product Photos

For more product information, please download the PDF
