Product Descriptions

The M5M51008CP,FP,VP,RV,KV,KR are a 1048576-bit CMOS static RAM organized as 131072 word by 8-bit which are fabricated using high-performance quadruple-polysilicon and double metal CMOS technology. The use of thin film transistor (TFT) load cells and CMOS periphery result in a high density and low power static RAM.

They are low standby current and low operation current and ideal for the battery back-up application.

The M5M51008CVP,RV,KV,KR are packaged in a 32-pin thin small outline package which is a high reliability and high density surface mount device(SMD). Two types of devices are available. M5M51008CVP,KV(normal lead bend type package), M5M51008CRV,KR(reverse lead bend type package).Using both types of devices, it becomes very easy to design a printed circuit board.

Product Features

Low stand-by current 0.1µA (typ.)

Directly TTL compatible : All inputs and outputs

Easy memory expansion and power down by S1,S2

Data hold on +2V power supply

Three-state outputs : OR - tie capability

OE prevents data contention in the I/O bus

Common data I/O

Product Applications

Small capacity memory units

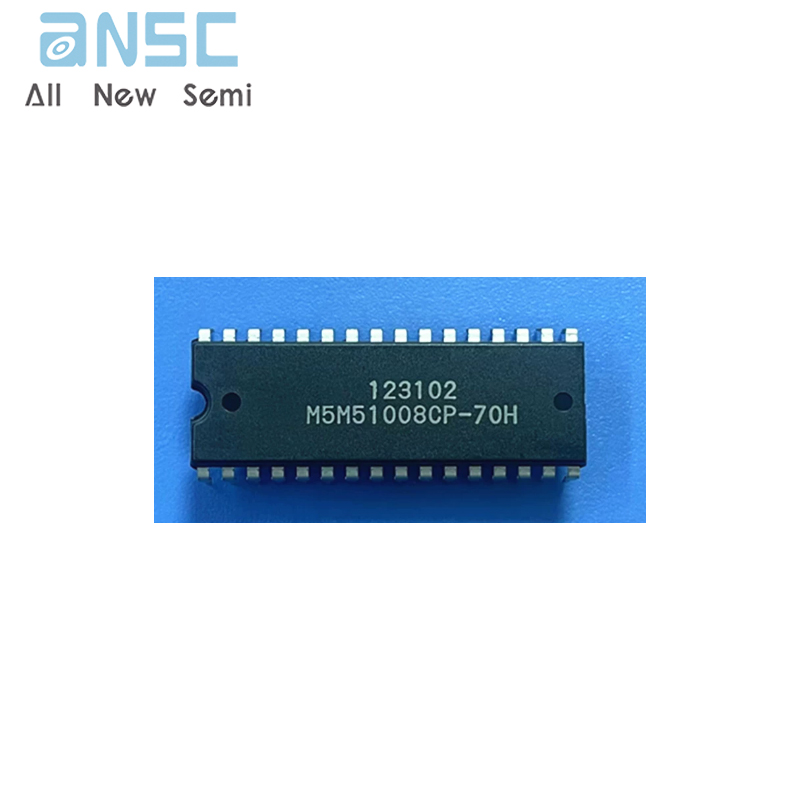

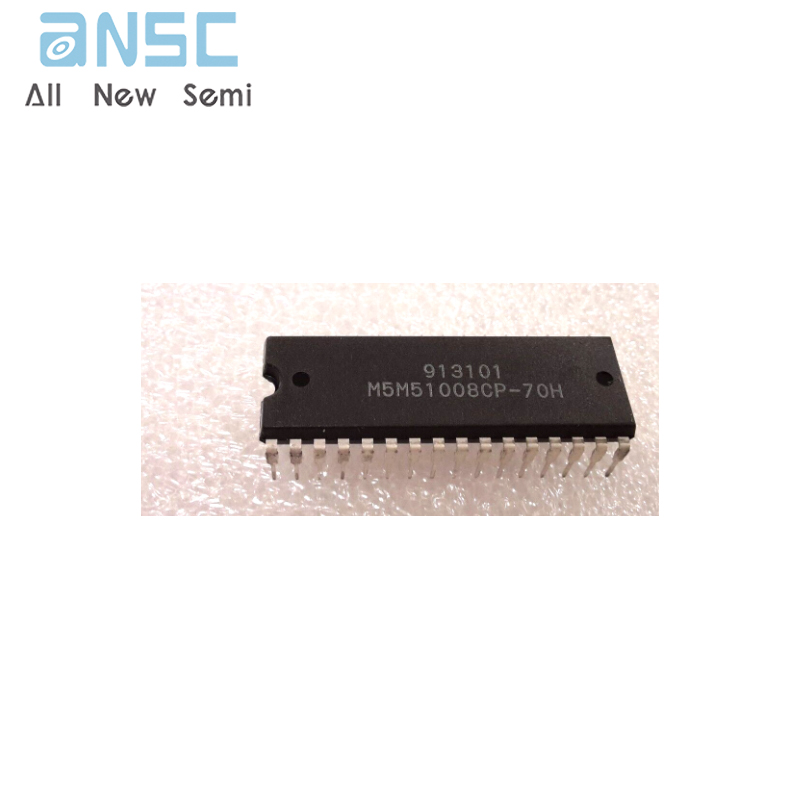

Product Photos

For more product information, please download the PDF
