Product Features
Trimmed Offset Voltage:
TLC27M7 . . . 500 µV Max at 25°C,VDD = 5 V
Input Offset Voltage Drift ...Typically 0.1 µV/Month, Including the First 30 Days
Wide Range of Supply Voltages Over
Specified Temperature Ranges:
0°C to 70°C . . . 3 V to 16 V
−40°C to 85°C . . . 4 V to 16 V
−55°C to 125°C . . . 4 V to 16 V
Single-Supply Operation
Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix Types)
Low Noise ...Typically 32 nV/√Hz at f = 1 kHz
Low Power ...Typically 2.1 mW at 25°C, VDD = 5 V
Output Voltage Range Includes Negative Rail
High Input impedance . . . 1012 Ω Typ
ESD-Protection Circuitry
Small-Outline Package Option Also Available in Tape and Reel
Designed-In Latch-Up Immunity
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLC27M2IP |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | LinCMOS™ |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Slew Rate | 0.62V/µs |
| Gain Bandwidth Product | 635 kHz |
| Current - Input Bias | 0.7 pA |
| Voltage - Input Offset | 1.1 mV |
| Current - Supply | 285µA (x2 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | TLC27M2 |

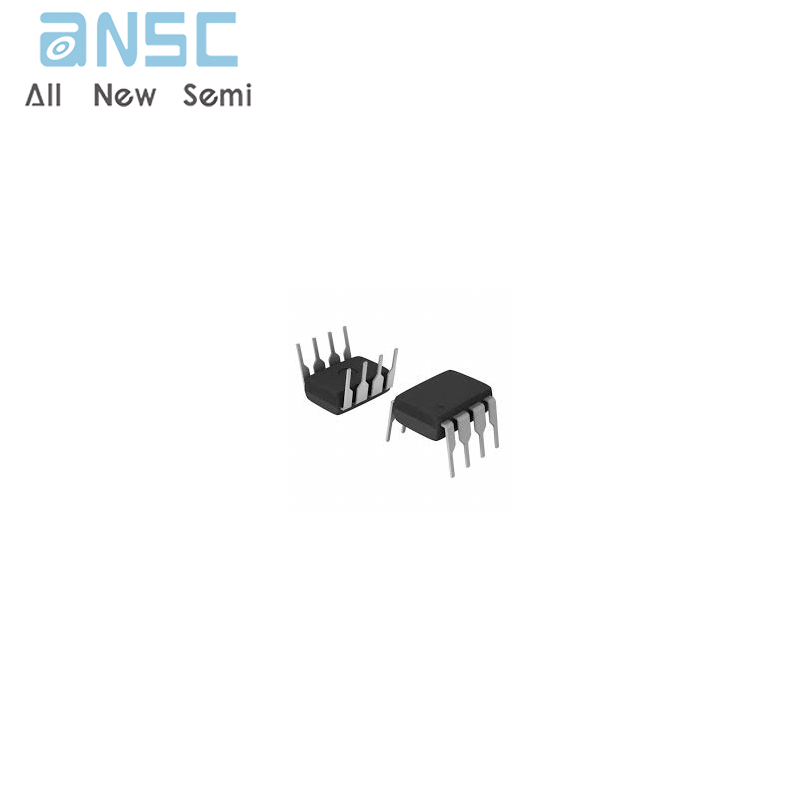

Product Photos
