Product Descriptions

The MC14501UB is constructed with MOS P–channel and N–channel enhancement mode devices in a single monolithic structure. These complementary MOS logic gates find primary use where low power dissipation and/or high noise immunity is desired.

Product Features

• Diode Protection on All Inputs

• Supply Voltage Range = 3.0 Vdc to 18 Vdc

• Logic Swing Independent of Fanout

• Capable of Driving Two Low–Power TTL Loads or One Low–Power

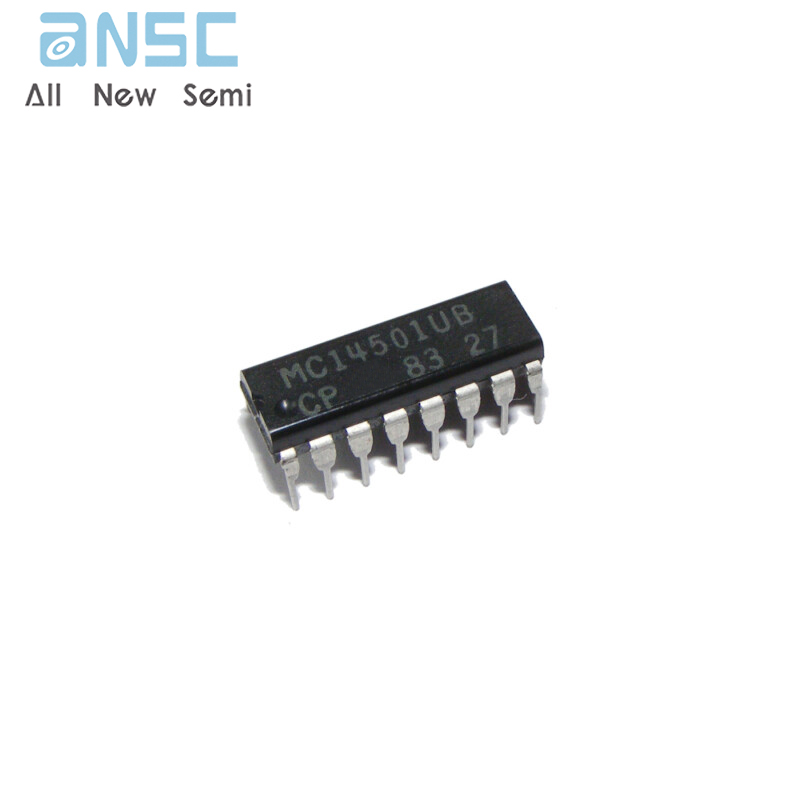

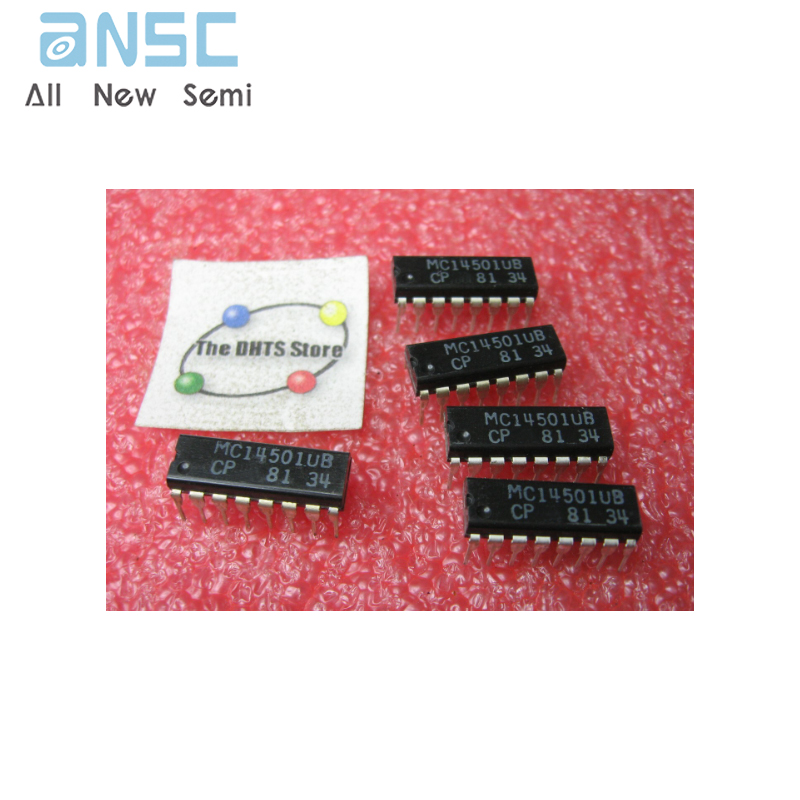

Product Photos

For more product information, please download the PDF
