Product Descriptions

The µA741 is a general-purpose operational amplifier featuring offset-voltage null capability.

The high common-mode input voltage range and the absence of latch-up make the amplifier ideal for voltage-follower applications. The device is short-circuit protected and the internal frequency compensation ensures stability without external components. A low value potentiometer may be connected between the offset null inputs to null out the offset voltage as shown in Figure 2.

The µA741C is characterized for operation from 0°C to 70°C. The µA741I is characterized for operation from –40°C to 85°C.The µA741M is characterized for operation over the full military temperature range of –55°C to 125 °C

Product Features

Short-Circuit Protection

Offset-Voltage Null Capability

Large Common-Mode and Differential Voltage Ranges

No Frequency Compensation Required

Low Power Consumption

No Latch-Up

Designed to Be Interchangeable With Fairchild uA741

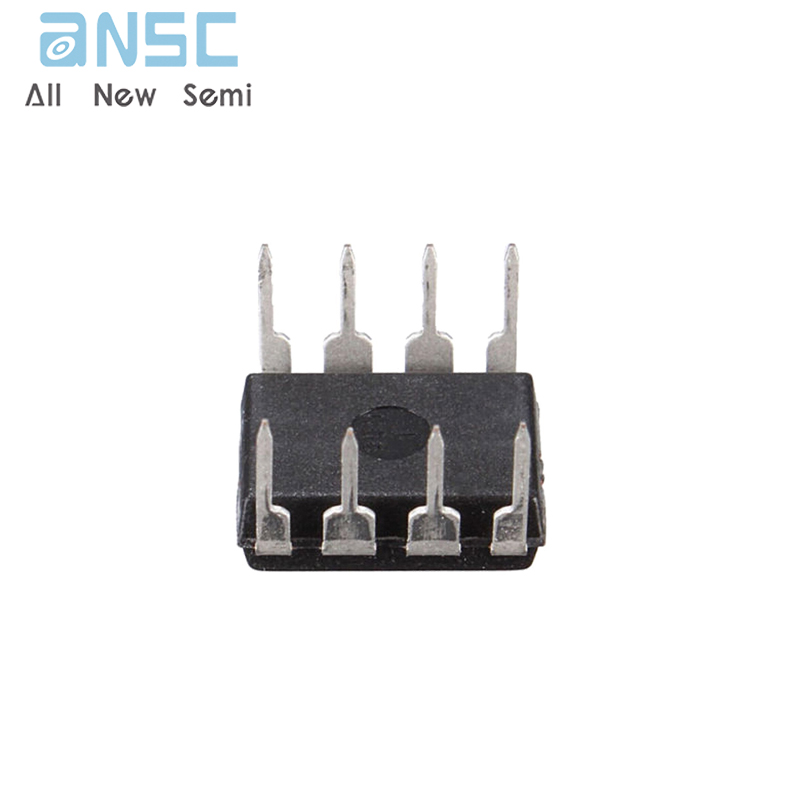

Product Photos

For more product information, please download the PDF
