Product Descriptions

The XR-215A is a highly versatile monolithic phaselocked loop (PLL) system designed for a wide variety of applications in both analog and digital communication systems. It is especially well suited for FM or FSK demodulation, frequency synthesis and tracking filter applications. The XR-215A can operate over a large choice of power supply voltages ranging from 5V to 26V and a wide frequency band of 0.5Hz to 25MHz. It can accommodate analog signals between 300mV and 3V.

Product Features

Wide Frequency Range: 0.5Hz to 25MHz

Wide Supply Voltage Range: 5V to 26V

Wide Dynamic Range: 300uV to 3V, nominally

ON-OFF Keying and Sweep Capability

Wide Tracking Range: Adjustable from +1 percent to +50 percent

High-Quality FM Detection: Distortion 0.15 percent Signal/Noise 65dB

Product Applications

FM Demodulation

Frequency Synthesis

FSK Coding/Decoding (MODEM)

Tracking Filters

Signal Conditioning

Tone Decoding

Data Synchronization

Telemetry Coding/Decoding

FM, FSK and Sweep Generation

Crystal-Controlled PLL

Wideband Frequency Discrimination

Voltage-to-Frequency Conversion

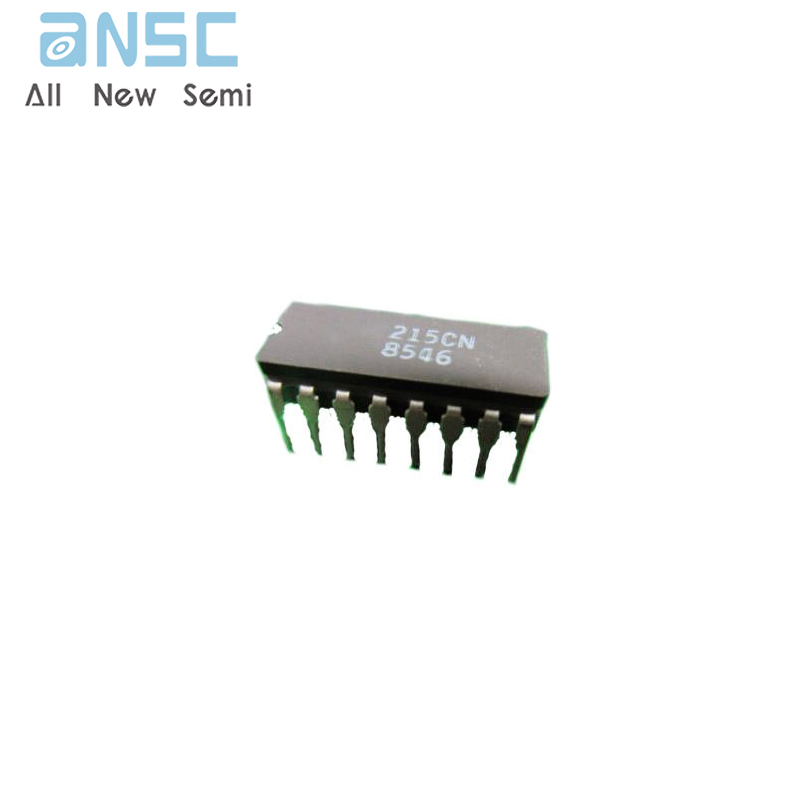

Product Photos

For more product information, please download the PDF
