Product Descriptions

The JFET-input TL070 operational amplifier is designed as the lower-noise version of the TL080 amplifier with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL070 ideally suited for high-fidelity and audio preamplifier applications. This amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.

The TL070C device is characterized for operation from 0°C to 70°C. The TL070I device is characterized for operation from – 40°C to 85°C. The TL070M device is characterized for operation from –55°C to 125°C.

Product Features

Low Power Consumption

Wide Common-Mode and Differential Voltage Ranges

Low Input Bias and Offset Currents

Output Short-Circuit Protection

Low Total Harmonic Distortion 0.003 percent Typ

Low Noise

Vn = 18 nV/√Hz Typ at f = 1 kHz

High Input Impedance... JFET Input Stage

Common-Mode Input Voltage Range Includes VCC+

Latch-Up-Free Operation

High Slew Rate . . . 13 V/µs Typ

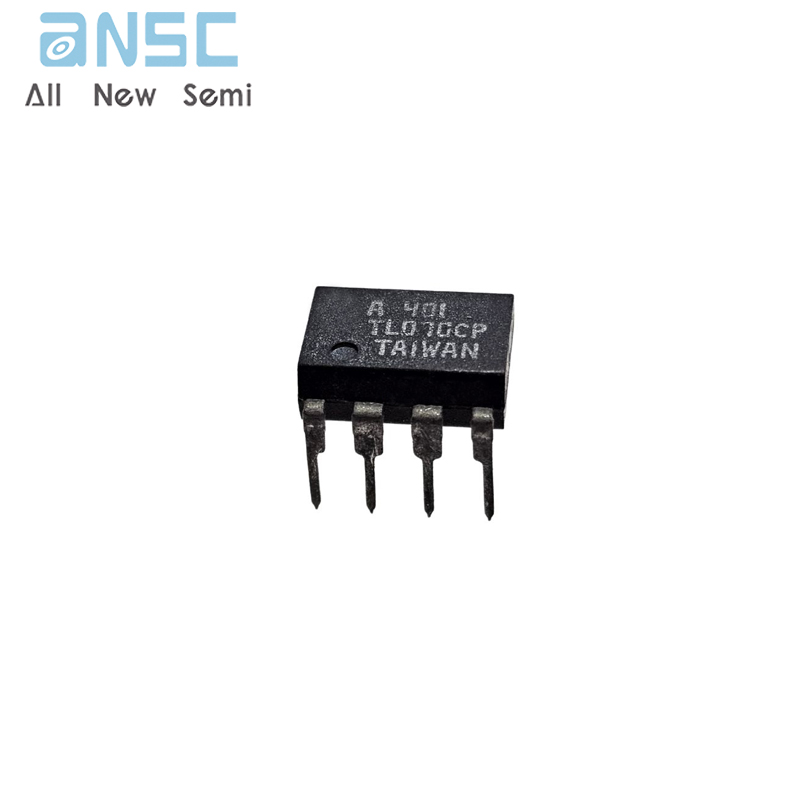

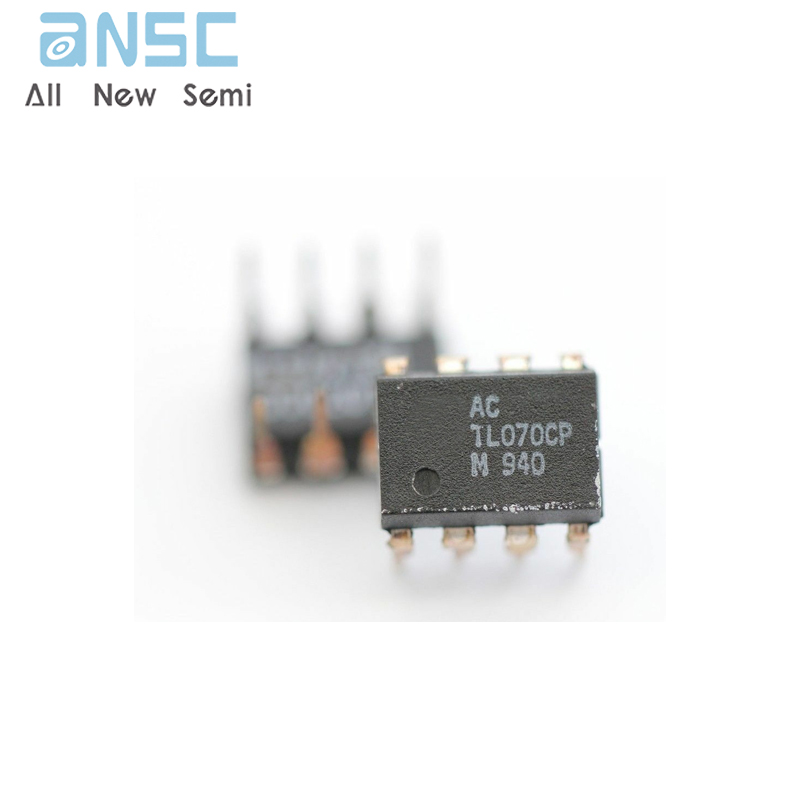

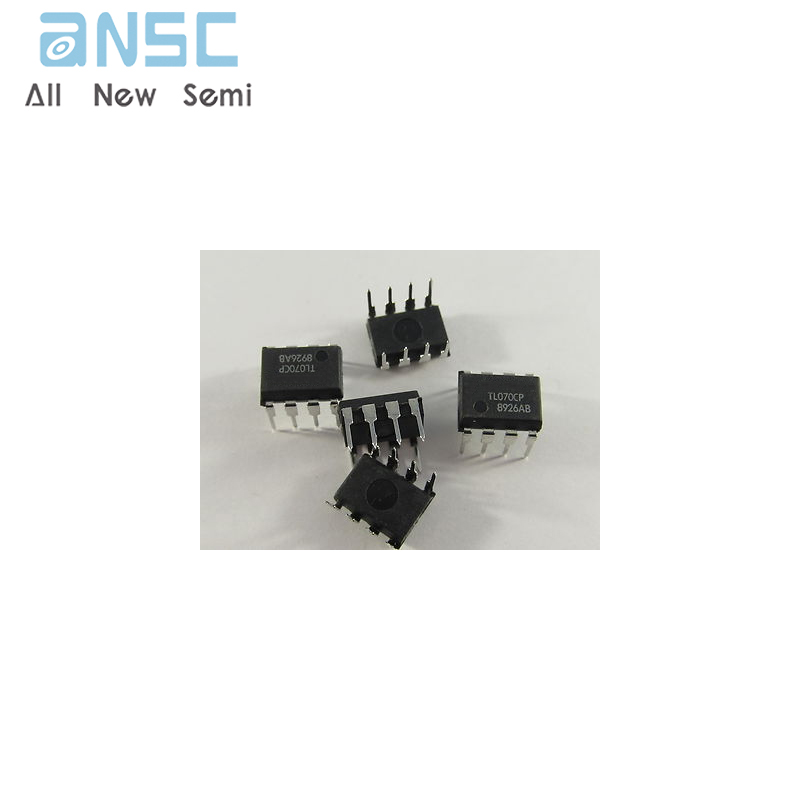

Product Photos

For more product information, please download the PDF
