Product Descriptions

These programmable array logic devices feature high speed and a choice of either standard or half-power devices. They combine Advanced Low-Power Schottky technology with proven titanium-tungsten fuses. These devices will provide reliable, high-performance substitutes for conventional TTL logic. Their easy programmability allow for quick design of ”custom” functions and typically results in a more compact circuit board. In addition, chip carriers are available for further reduction in board space.

The Half-Power versions offer a choice of operating frequency, switching speeds, and power dissipation. In many cases, these Half-Power devices can result in significant power reduction from an overall system level.

The PAL16’ M series is characterized for operation over the full military temperature range of –55°C to 125°C.

Product Features

• Choice of Operating Speeds

High-Speed, A Devices . . . 25 MHz Min

Half-Power, A-2 Devices . . . 16 MHz Min

• Choice of Input/Output Configuration

• Package Options Include Both Ceramic DIP and Chip Carrier in Addition to Ceramic Flat Package

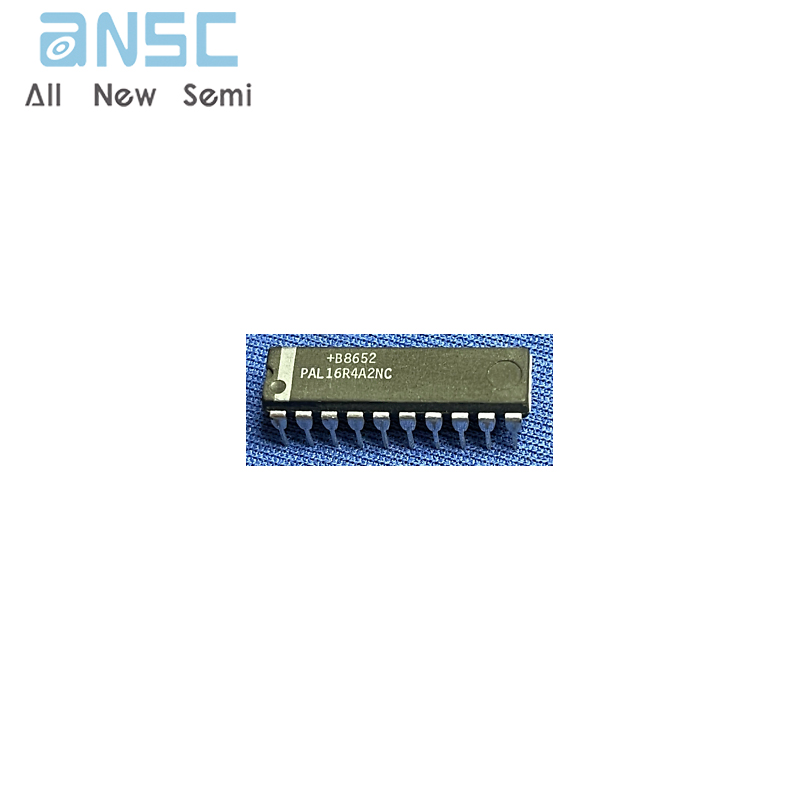

Product Photos

For more product information, please download the PDF
