Product Descriptions

The DP8212/DP8212M is an 8-bit input/output port contained in a standard 24-pin dual-in-line package. The device, which is fabricated using Schottky Bipolar technology, is part of National Semiconductor’s 8080A support family. The DP8212/DP8212M can be used to implement latches, gated buffers, or multiplexers. Thus, all of the major peripheral and input/output functions of a microcomputer system can be implemented with this device.

The DP8212/DP8212M includes an 8-bit latch with TRI-STATEÉ output buffers, and device selection and control logic. Also included is a service request flip-flop for the generation and control of interrupts to the microprocessor.

Product Features

Y 8-Bit data latch and buffer

Y Service request flip-flop for generation and control of interrupts

Y 0.25 mA input load current

Y TRI-STATE TTL output drive capability

Y Outputs sink 15 mA

Y Asynchronous latch clear

Y 3.65V output for direct interface to INS8080A

Y Reduces system package count by replacing buffers, latches, and multiplexers in microcomputer systems

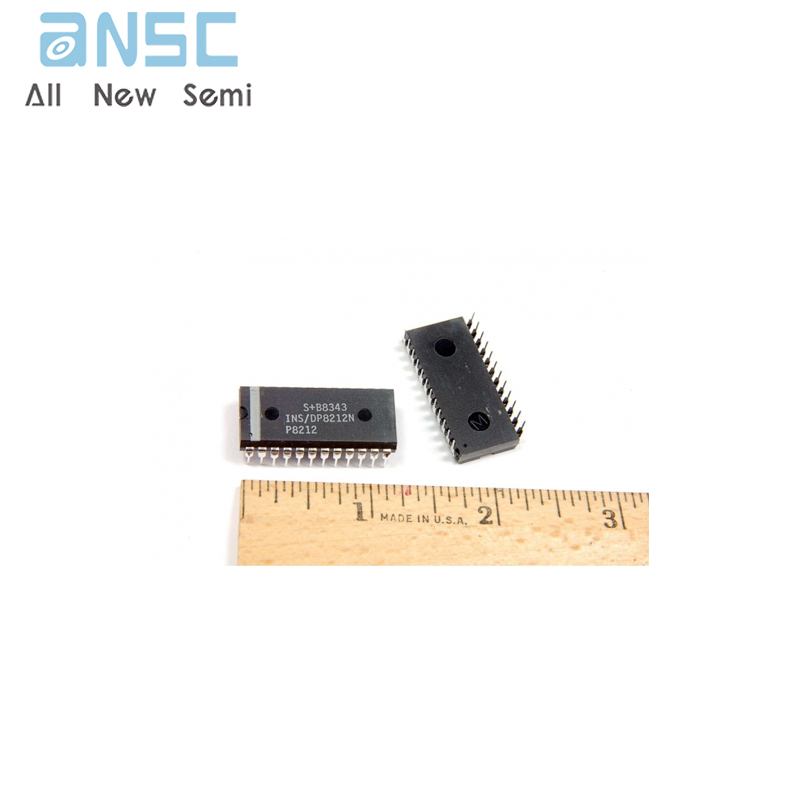

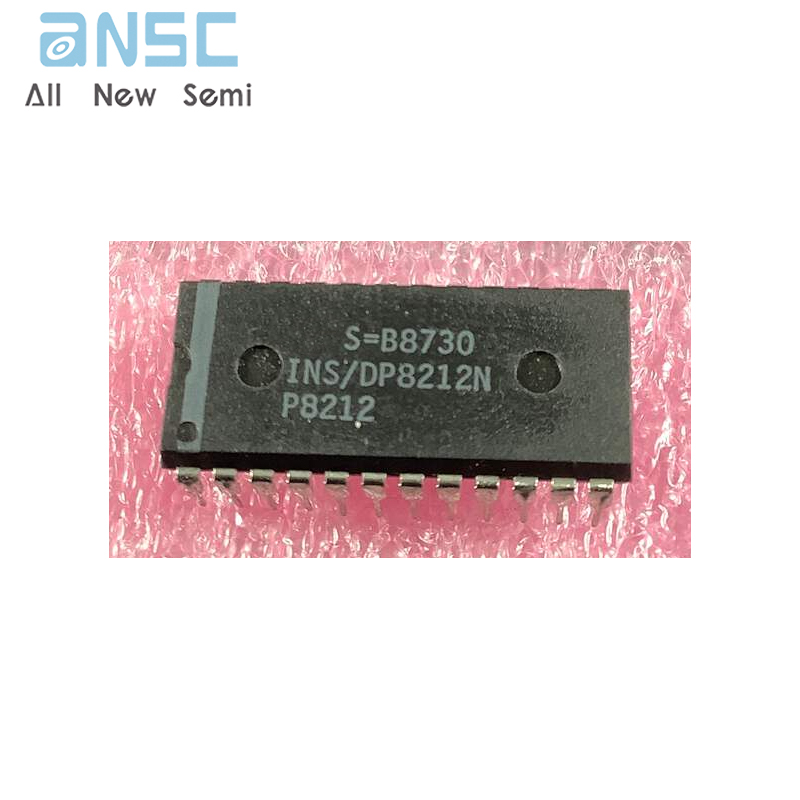

Product Photos

For more product information, please download the PDF
