Product Descriptions

These low cost JFET Input operational amplifiers combine two state-of-the-art linear technologies on a single monolithic integrated circuit. Each internally compensated operational amplifier has well matched high voltage JFET input devices for low input offset voltage. The BIFET technology provides wide bandwidths and fast slew rates with low input bias currents, input offset currents,and supply currents.

The Motorola BIFET family offers single, dual and quad operational amplifiers which are pin-compatible with the industry standard MC1741, MC1458, and the MC3403/LM324 bipolar devices. The MC35001/35002/35004 series are specified over the military operating temperature range of -55° to +125°C and the MC34001/34002/34004 series are specified from 0° to +70°C.

Product Features

Input Offset Voltage Options of 5.0 mV and 10 mV Maximum

Low Input Bias Current: 40 pA

Low Input Offset Current: 10 pA

Wide Gain Bandwidth: 4.0 MHz

High Slew Rate: 13 V/us

Low Supply Current: 1.4 mA per Amplifier

High Input Impedance: 1012 Ω

High Common Mode and Supply Voltage Rejection Ratios: 100 dB

Industry Standard Pinouts

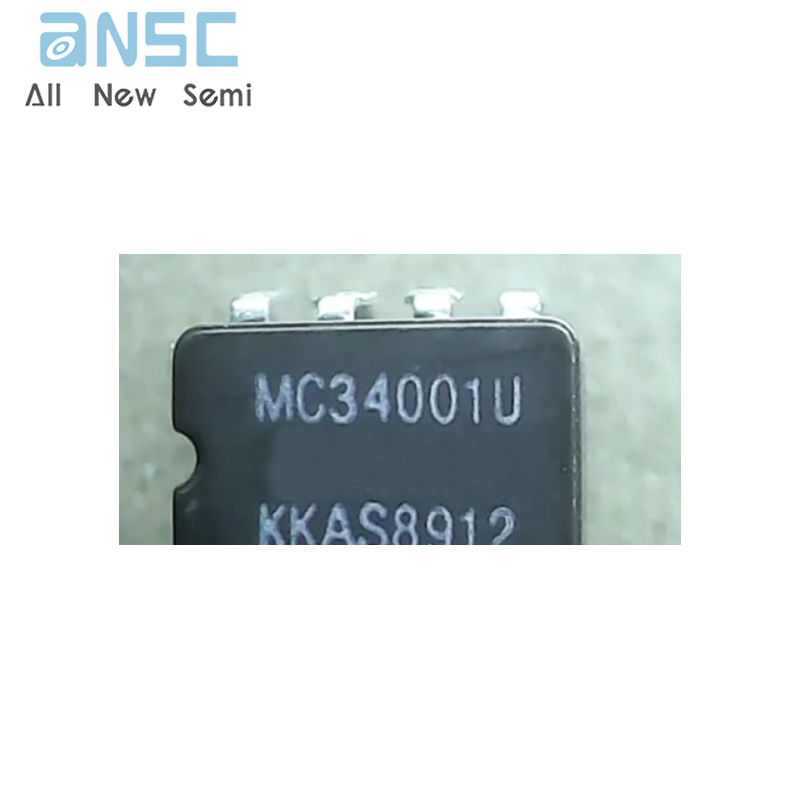

Product Photos

For more product information, please download the PDF
