Product Descriptions
The MC1458 and MC1558 are dual
general-purpose operational amplifiers, with each
half electrically similar to the µA741, except that
offset null capability is not provided.
The high-common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The devices are short-circuit protected and the internal frequency compensation ensures stability without external components.
Product Features
Short-Circuit Protection
Wide Common-Mode and Differential Voltage Ranges
No Frequency Compensation Required
Low Power Consumption
No Latch-Up
Designed to Be Interchangeable With Motorola MC1558/MC1458 and Signetics S5558/N5558
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC1458DR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 3.4mA (x2 Channels) |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MC1458 |

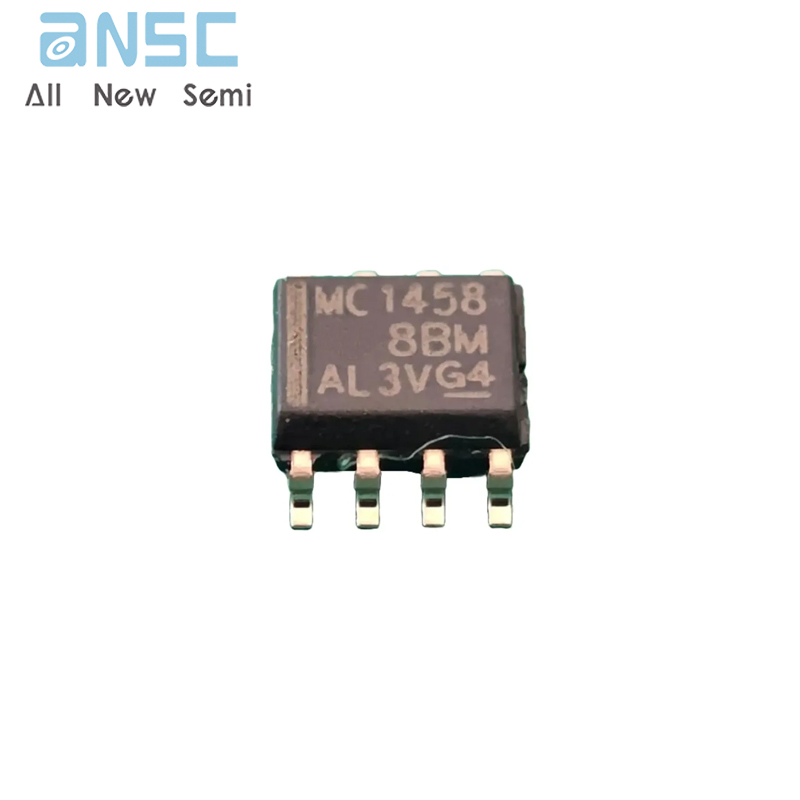

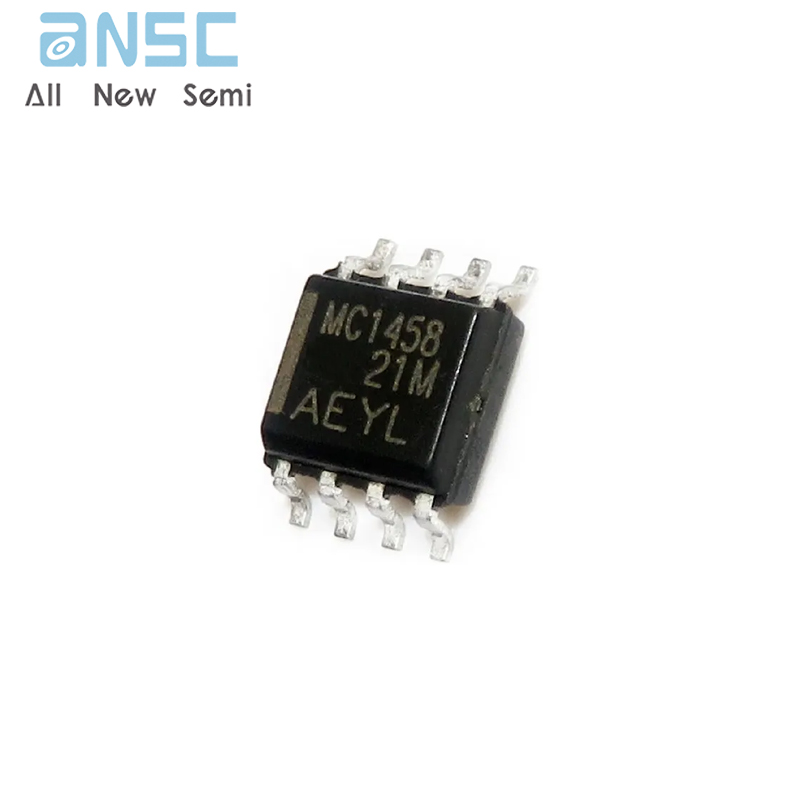

Product Photos
For more product information, please download the PDF
