Product Descriptions

The SAB 8282A and SAB 8283A are 8-bitbipolar latches with 3-state output buffers.

They can be used to implement latches, buffers,or multiplexers. The SAB 8283A inverts the input data at its outputs while the SAB 8282A does not.

Thus, all of the principal peripheral and input/output functions of a microcomputer system can be implemented with these devices.

This device is fabricated in a fast bipolar ASBC(Advanced Standard Buried Collector) processof Siemens.

Product Features

Fully compatible with SAB 8282/SAB 8283

40 percent Less Power Supply Current than Standard SAB 8282/SAB 8283

Address Latch for SAB 80286, SAB 80186, SAB 8086, SAB 8085,SAB 8048 and SAB 8051 Families

High Output Drive Capability for Driving System Data Bus

Fully Parallel 8-Bit Data Register and Buffer

No Output Low Noise when Entering or Leaving High Impedance State

3-State Outputs

Transparent during Active Strobe

20-Pin Package

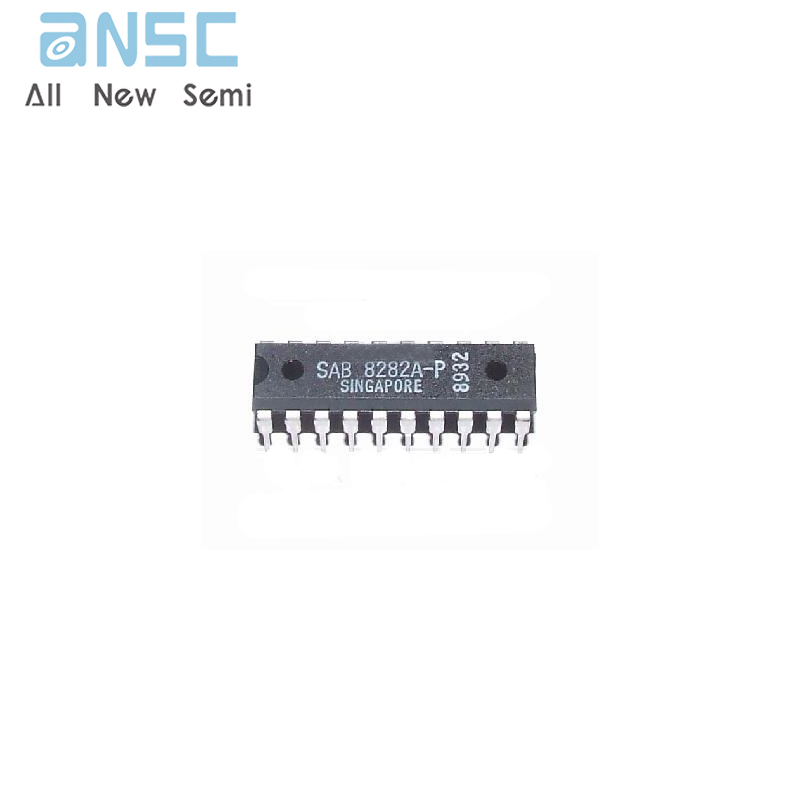

Product Photos
