Product Descriptions

The MC14569B is a programmable divide–by–N dual 4–bit binary or BCD down counter constructed with MOS P–channel and N–channel enhancement mode devices (complementary MOS) in a monolithic structure.

This device has been designed for use with the MC14568B phase comparator/counter in frequency synthesizers, phase–locked loops, and other frequency division applications requiring low power dissipation and/or high noise immunity.

Product Features

• Speed–up Circuitry for Zero Detection

• Each 4–Bit Counter Can Divide Independently in BCD or Binary Mode

• Can be Cascaded With MC14526B for Frequency Synthesizer Applications

• All Outputs are Buffered

• Schmitt Triggered Clock Conditioning

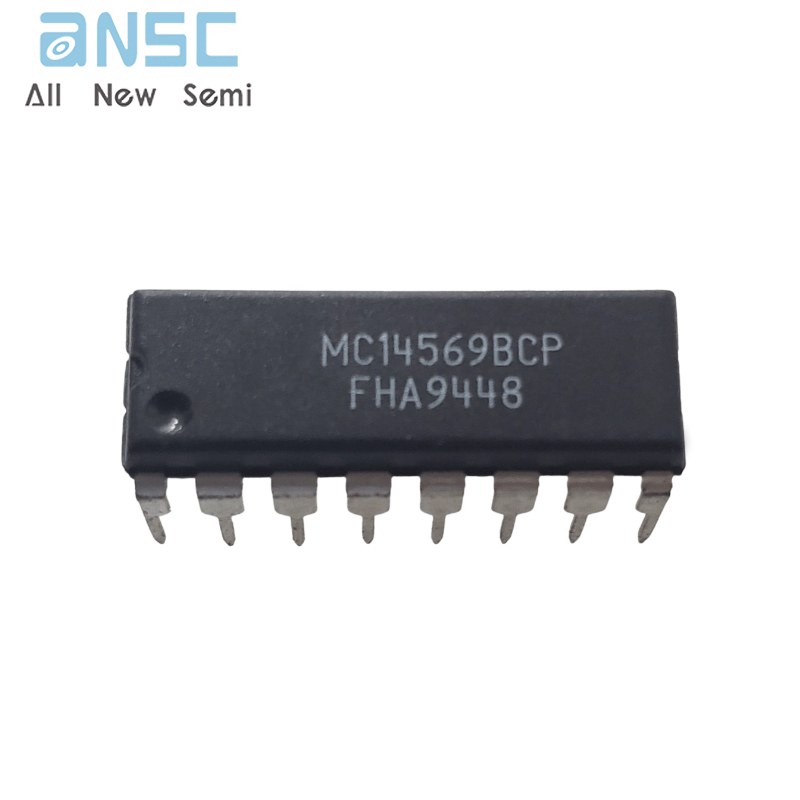

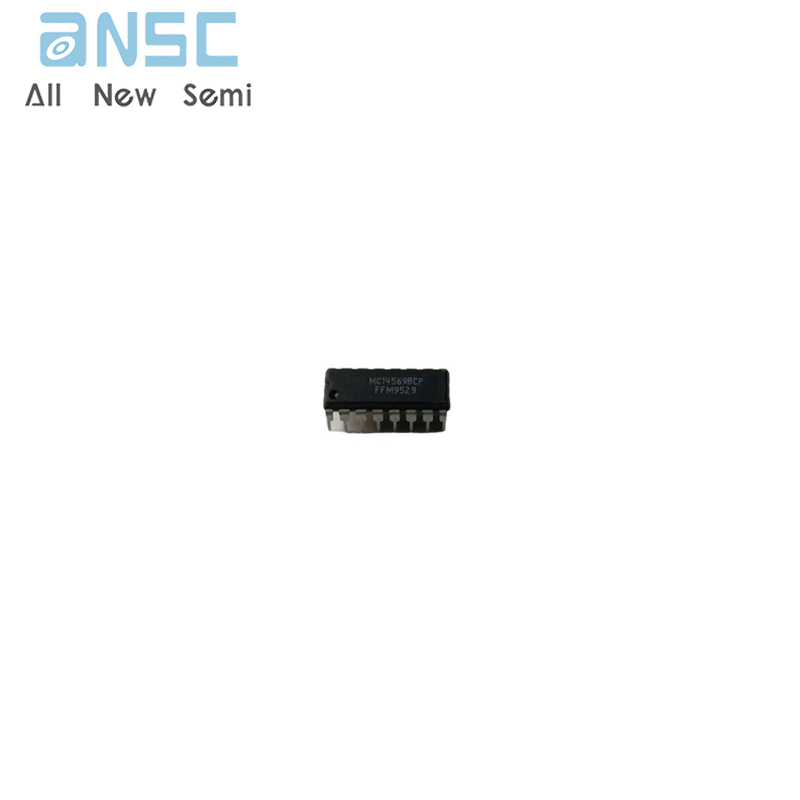

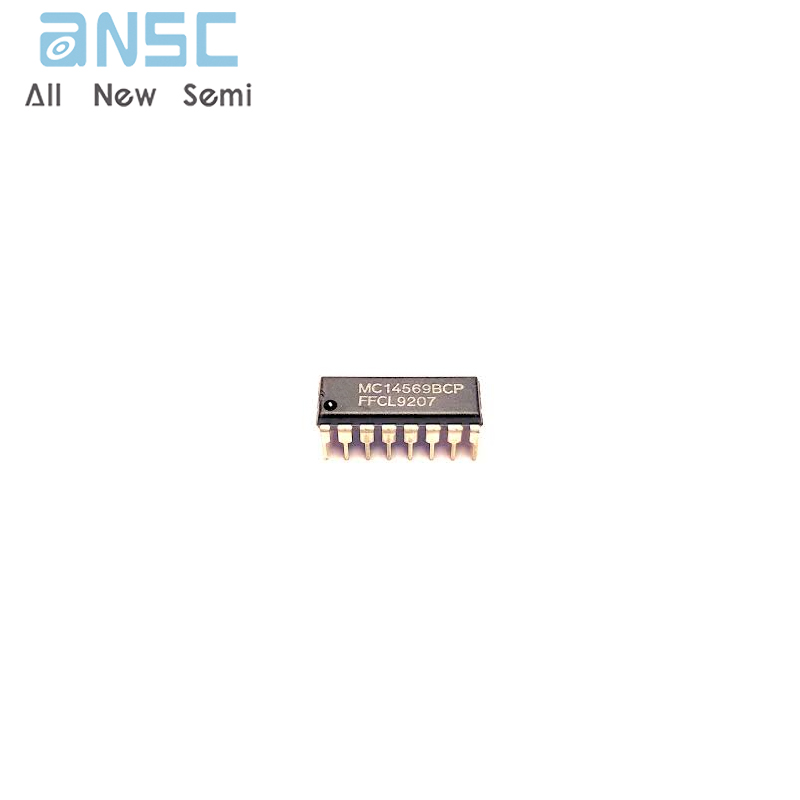

Product Photos
