Product Descriptions
The Intel D8749H/D8748H are totally self-sufficient, 8-bit parallel computers fabricated on single silicon chip susing Intel's advanced N-channel silicon gate HMOS-E process.
The family contains 27 I/O lines, an 8-bit timer/counter, on-chip RAM and on-board oscillator/clock circuits.
For systems that require extra capability, the family can be expanded using MCSe-80/MCS -85 peripherals.
These microcomputers are designed to be efficient controllers as well as arithmetic processors. They have extensive bit handling capability as well as facilities for both binary and BCD arithmetic. Efficient use of program memory results from an instruction set consisting mostly of single byte instructions and no instructions over 2 bytes in length.
Product Features
High Performance HMOS-E
Interval Timer/Event Counter
Two Single Level Interrupts
Single 5-Volt Supply
Over 96 Instructions; 90 percent Single Byte
Compatible with 8080/8085 Peripherals
Easily Expandable Memory and I/O
Up to 1.35 us Instruction Cycle;All Instructions 1 or 2 Cycles
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-D8748H |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | - |
| Packaging | Bulk |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Base Product Number | D8748 |

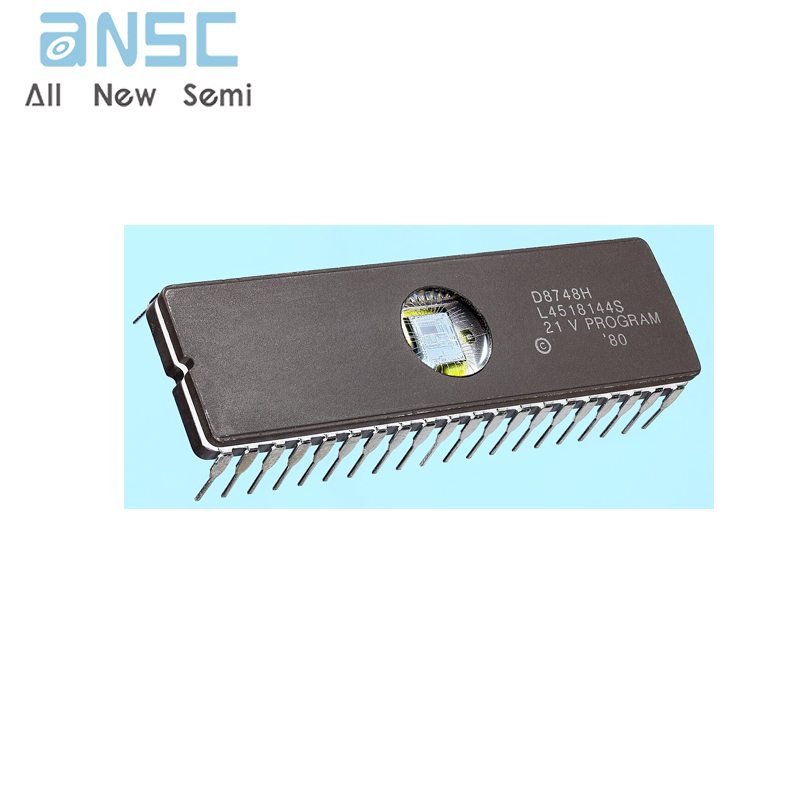

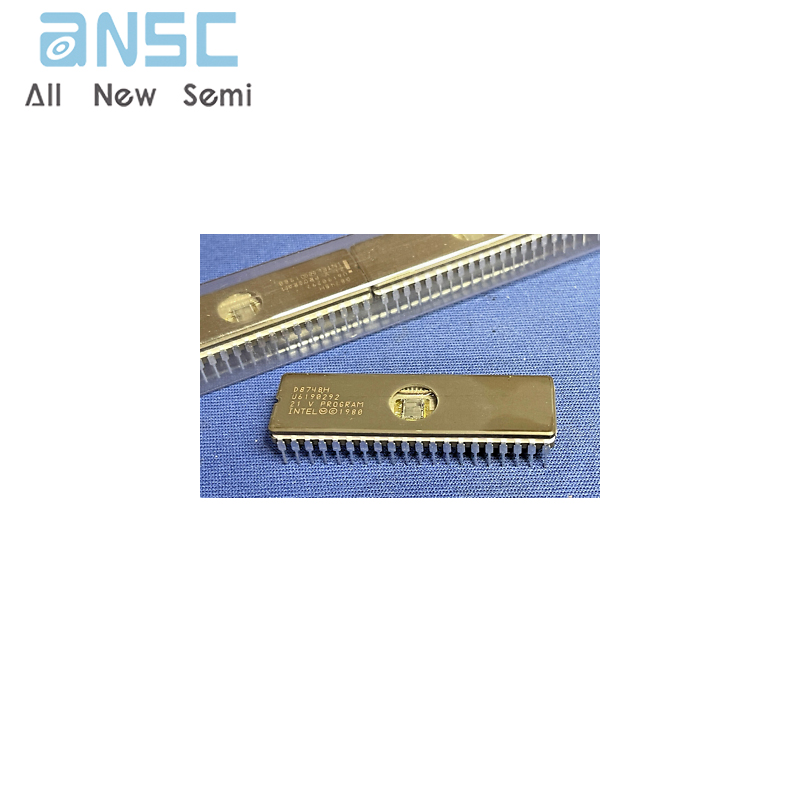

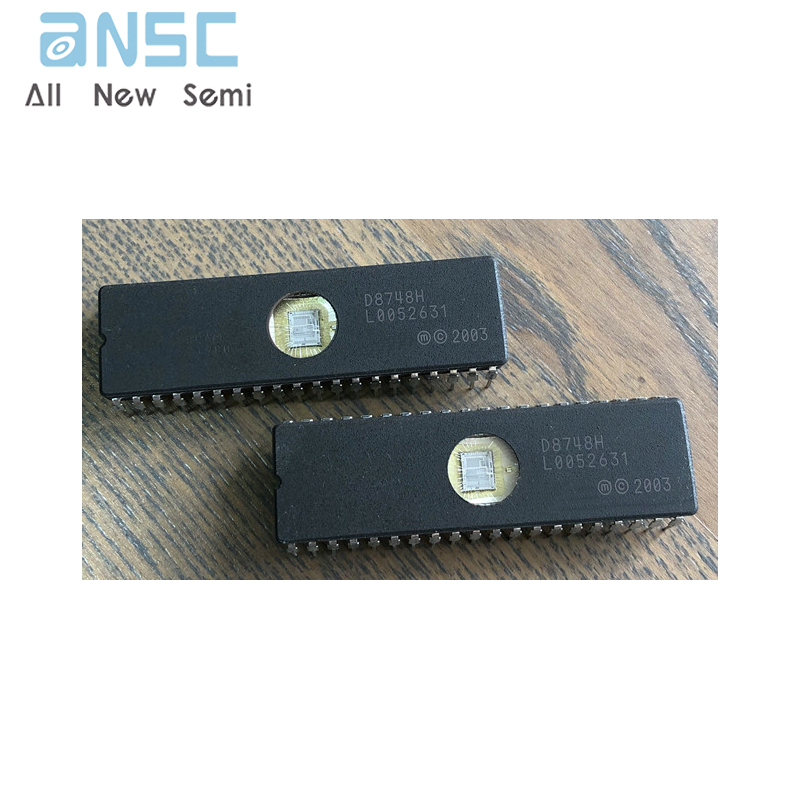

Product Photos
For more product information, please download the PDF
