Product Descriptions
The 2N2218, 2N2219, 2N2221 and 2N2222 are silicon planar epitaxial NPN transistors in Jedec TO-39 (for 2N2218 and 2N2219) and in Jedec TO-18 (for 2N2221 and 2N2222) metal cases. They are designed for high-speed switching applications at collector currents up to 500 mA, and feature useful current gain over a wide range of collector current, low leakage currents and low saturation voltages.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2N2221 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 800 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 10V |
| Power - Max | 500 mW |
| Mounting Type | Through Hole |
| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Supplier Device Package | TO-18 |
| Base Product Number | 2N2221 |

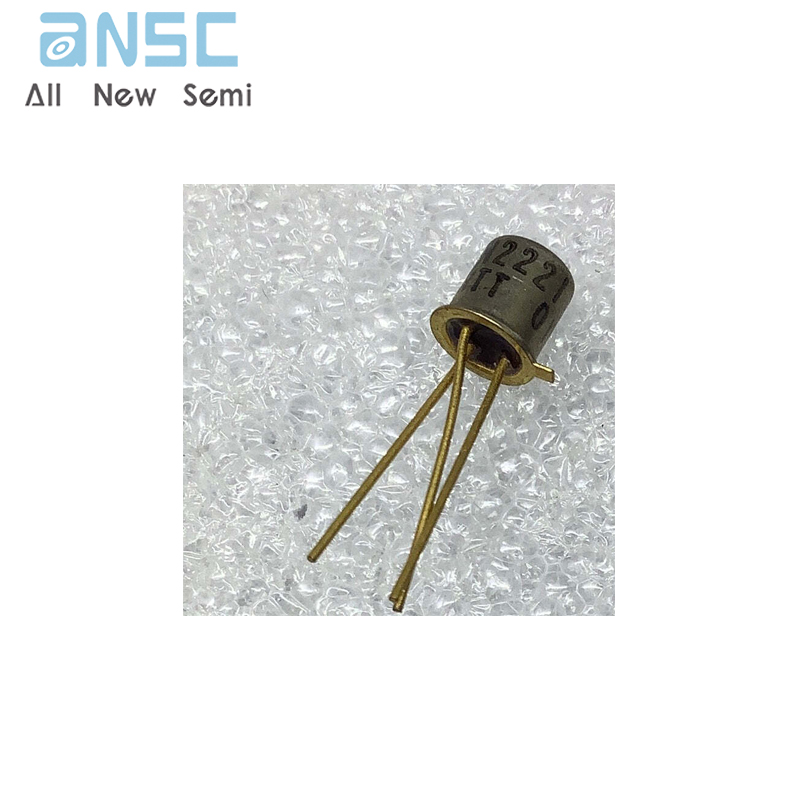

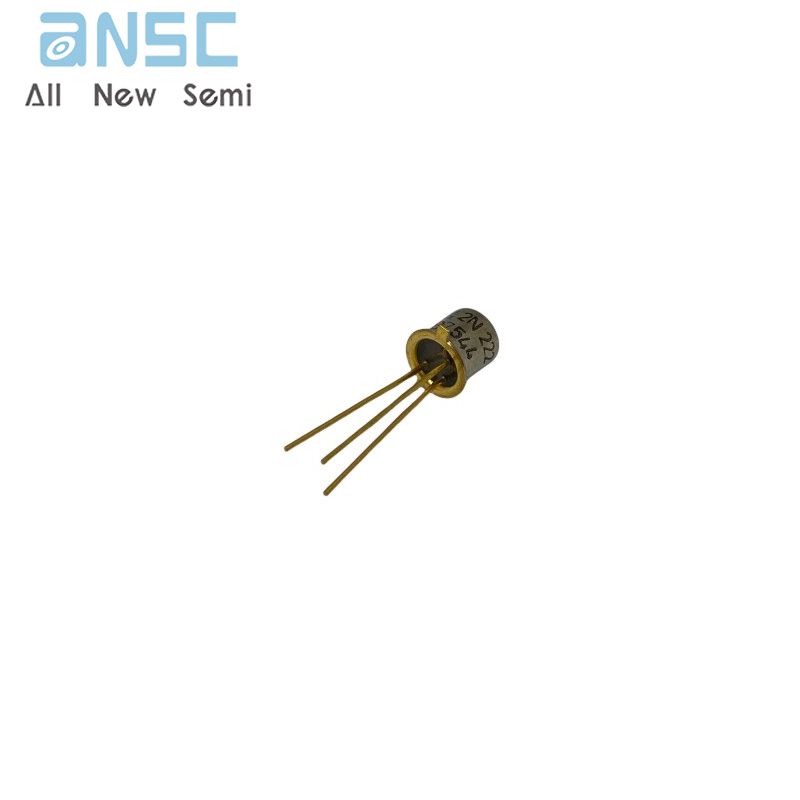

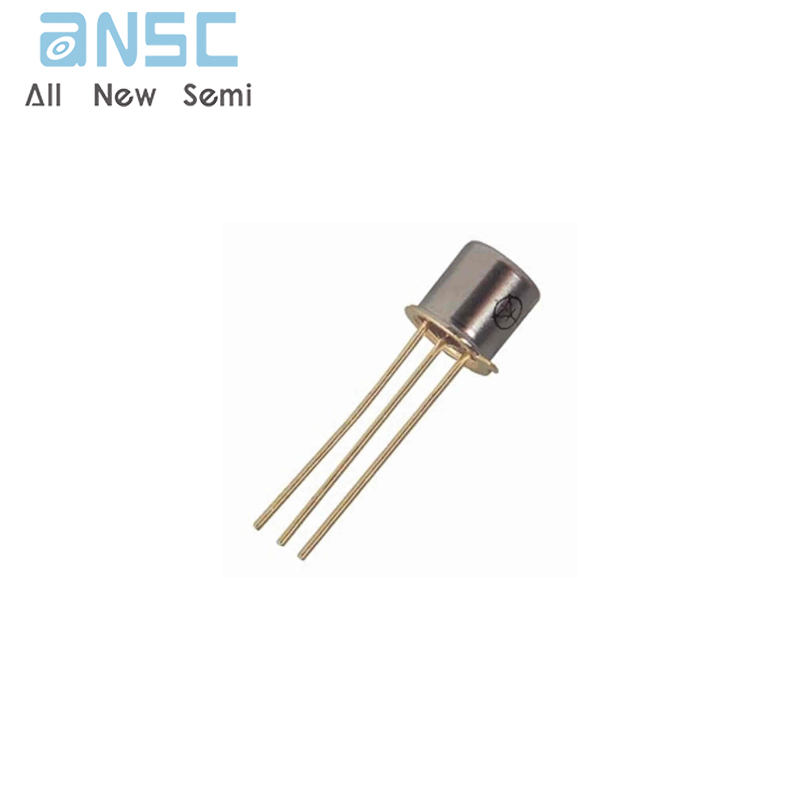

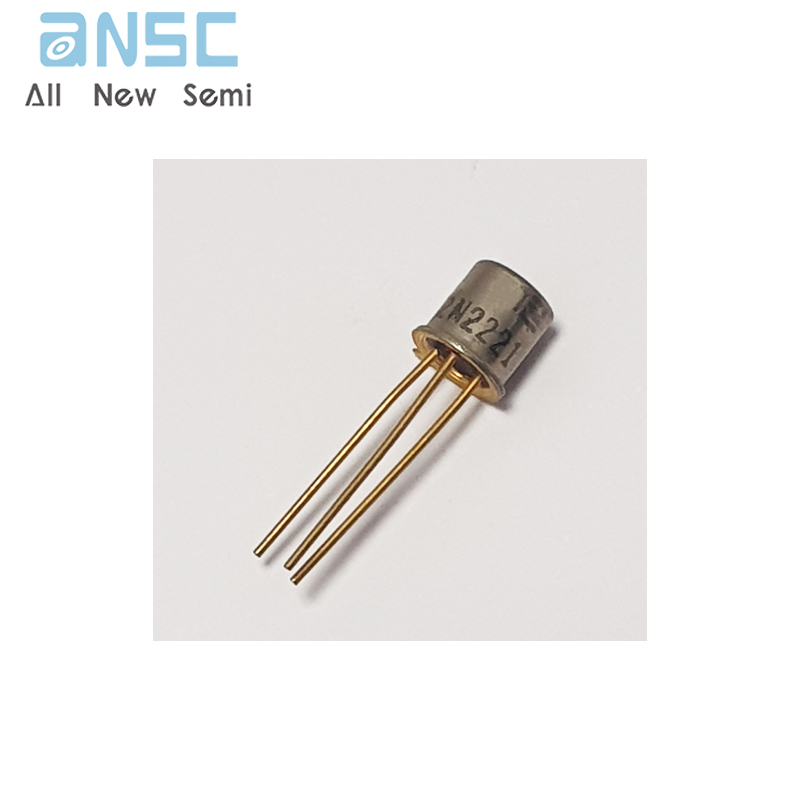

Product Photos
For more product information, please download the PDF
