Product Descriptions
Supports ultra low power ARM based microcontroller with USB feature and ultra small Wafer Level Chip Scale Package. Ideal solution for smart phone accessories, gaming accessories, sensor hub applications, etc.
This product offers:
• Ultra small scale package 2.37mm x 2.46mm with 0.35mm pitch
• USB OTG FS 2.0
• Ultra low dynamic and static power consumption with smart peripherals for low power applications
• Highly integrated peripherals, including high speed and mixed signal interfaces, etc
Product Features
Performance
• 48 MHz ARM® Cortex®-M0+ core
Memories and memory interfaces
• Up to 128 KB program flash memory
• Up to 16 KB SRAM
System peripherals
• Nine low-power modes to provide power optimization based on application requirements
• COP Software watchdog
• 4-channel DMA controller, supporting up to 63 request sources
• Low-leakage wakeup unit
• SWD debug interface and Micro Trace Buffer
• Bit Manipulation Engine
Clocks
• 32 kHz to 40 kHz or 3 MHz to 32 MHz crystal oscillator
• Multi-purpose clock source
Operating Characteristics
• Voltage range: 1.71 to 3.6 V
• Flash write voltage range: 1.71 to 3.6 V
• Temperature range (ambient): -40 to 85°C
Human-machine interface
• Low-power hardware touch sensor interface (TSI)
• 27 general-purpose input/output (GPIO)
Communication interfaces
• USB full-/low-speed On-the-Go controller with onchip transceiver and 5 V to 3.3 V regulator
• Two 16-bit SPI modules
• I2S (SAI) module
• One low power UART module
• Two UART modules
• Two I2C module
Analog Modules
• 16-bit SAR ADC
• 12-bit DAC
• Analog comparator (CMP) containing a 6-bit DAC and programmable reference input
Timers
• Six channel Timer/PWM (TPM)
• Two 2-channel Timer/PWM modules
• Periodic interrupt timers
• 16-bit low-power timer (LPTMR)
• Real time clock
Security and integrity modules
• 80-bit unique identification number per chip
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MKL26Z128CAL4R |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | - |
| Series | Kinetis KL2 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12bit SAR; D/A 12bit |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-WLCSP (2.37x2.46) |
| Package / Case | 36-UFBGA, WLCSP |
| Base Product Number | MKL26Z128 |

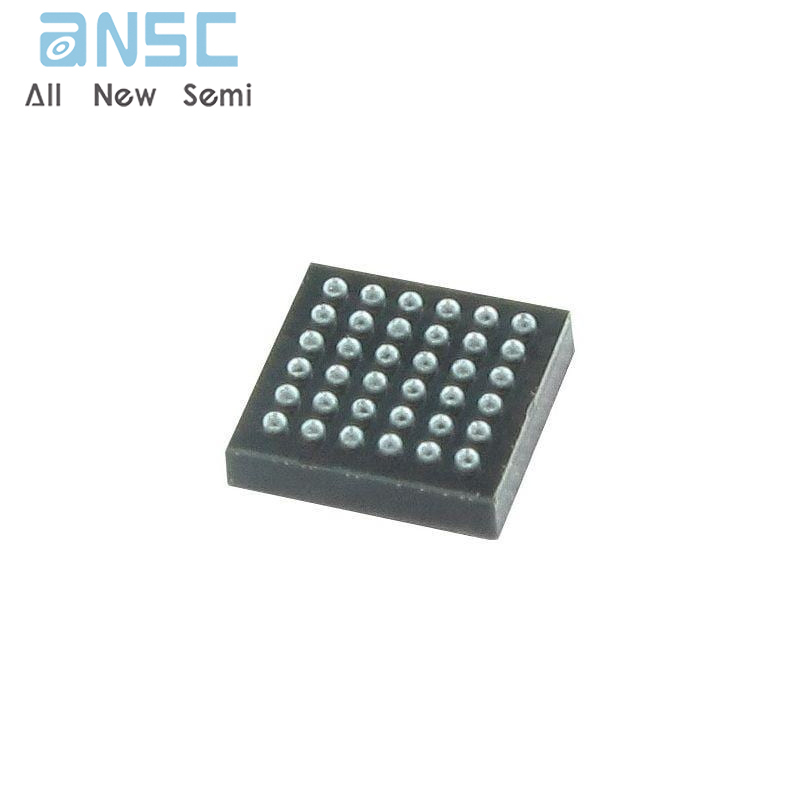

Product Photos
For more product information, please download the PDF
