Product Descriptions

The TOSHIBA TLP628, −2, and −4 consists of a gallium arsenide infrared emitting diode optically coupled to a phototransistor which has a 350V high voltage of collector−emitter breakdown voltage. The TLP628−2 offers two isolated channels in a eight lead plastic DIP package, while the TLP628−4 provide four isolated channels per package.

Product Features

• Collector−emitter voltage: 350 V (min.)

• Current transfer ratio: 50% (min.)

• Isolation voltage: 5000Vrms (min.)

• UL recognized: UL1577, file No. E67349

• BSI approved: BS EN60065:2002, certificate no.7426

BS EN60950-1:2002, certificate no.7427

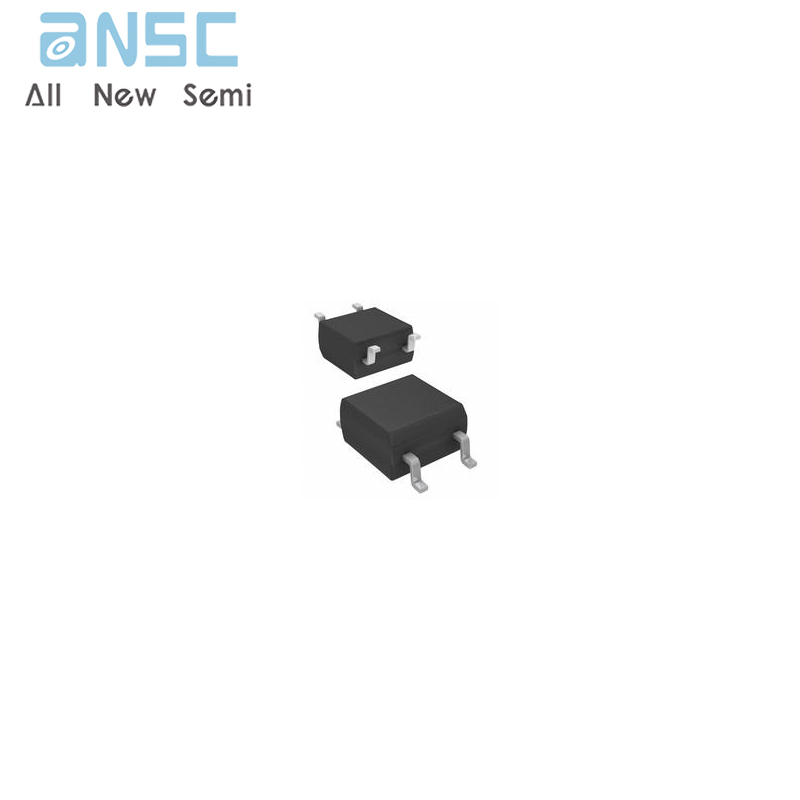

Product Photos

For more product information, please download the PDF
