Product Descriptions

HT1622 is a peripheral device specially designed for I/O type C used to expand the display capability. The max. display segment of the device are 256 patterns (328). It also supports serial interface, buzzer sound, Watchdog Timer or time base timer functions. The HT1622 is a memory mapping and multi-function LCD controller. The software configuration feature of the HT1622 make it suitable for multiple LCD applications including LCD modules and display subsystems. Only three lines are required for the interface between the host controller and the HT1622. The HT162X series have many kinds of products that match various applications.

Product Features

Operating voltage: 2.7V~5.2V

Built-in RC oscillator

1/4 bias, 1/8 duty, frame frequency is 64Hz

Max. 328 patterns, 8 commons, 32 segments

Built-in internal resistor type bias generator

3-wire serial interface

8 kinds of time base/WDT selection

Time base or WDT overflow output

Built-in LCD display RAM

R/W address auto increment

Two selectable buzzer frequencies (2kHz/4kHz)

Power down command reduces power consumption

Software configuration feature

Data mode and Command mode instructions

Three data accessing modes

VLCD pin to adjust LCD operating voltage

Cascade application

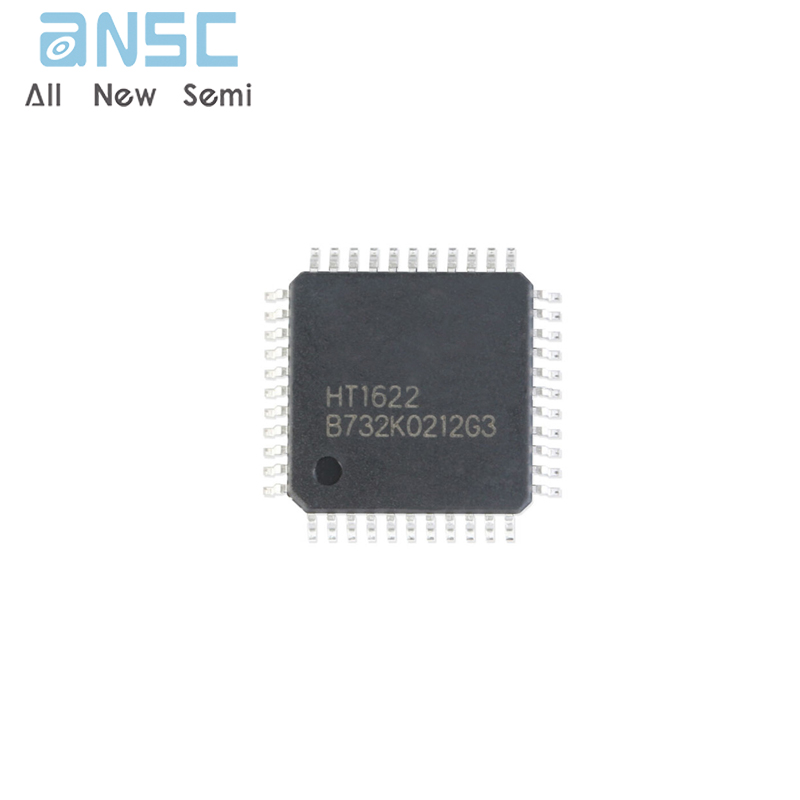

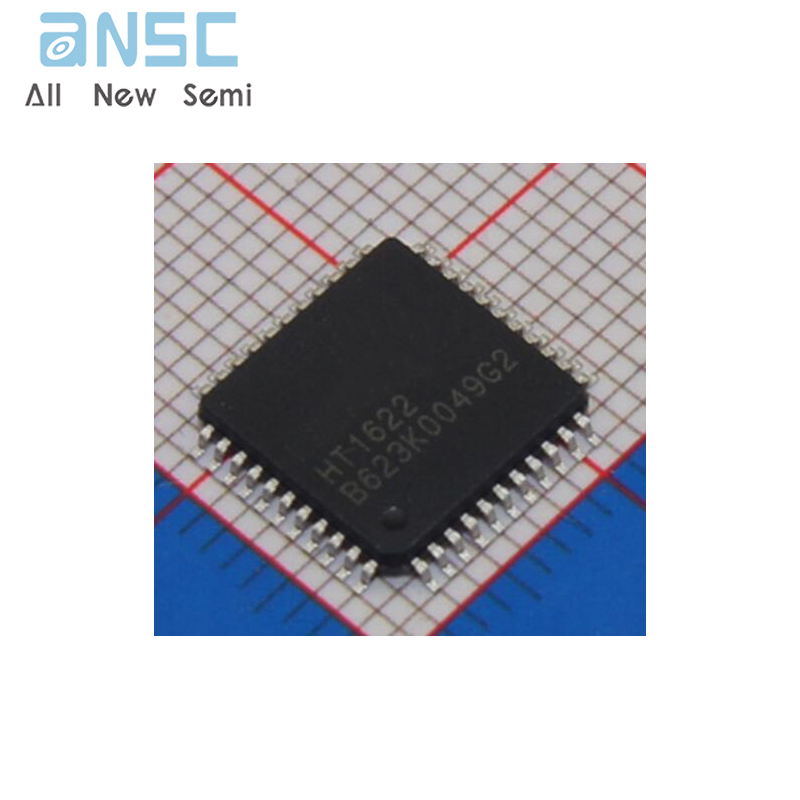

Product Photos

For more product information, please download the PDF
