Product Descriptions

The TDA8020HL is a one-chip dual smart card interface. Controlled by the I2C-bus, it guarantees conformity to ISO 7816 or EMV norms with very few external components.

Product Features

• Two independent 6 contacts smart card interfaces

• Supply voltage to the cards; VCC = 5 or 3 V ±5 PERCENT; ICC up to 65 mA

• Integrated DC/DC converter (doubler, tripler or follower) for allowing power supply from 2.5 to 6.5 V

• Independant supply voltage for interface signals (from 1.5 to 6.5 V)

• Control and status via the I2C-bus

• Four possible devices in parallel due to two I2C-bus address pins

• Electrical specifications according to ISO 7816 or EMV norms

• Automatic activation and deactivation sequences by means of integrated sequencers

• Automatic clock count and reset toggling during warm or cold reset

• Interrupt request output to the controller

• 6 kV ESD protection on cards contacts

• Automatic emergency deactivation in the event of supply drop-out, overload, overheating or card take-off

• Current limitation on pins CLK, RST, I/O and VCC

• Integrated voltage supervisor for power-on reset and drop-out detection

• Power-down mode with several wake-up events.

Product Applications

• Set top boxes

• Banking terminals

• Internet terminals.

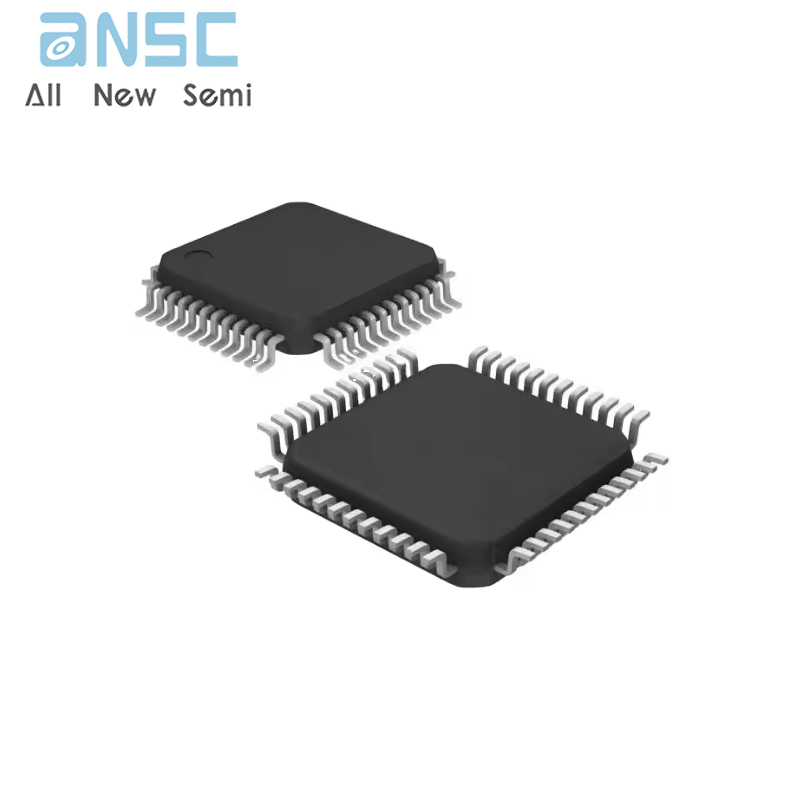

Product Photos

For more product information, please download the PDF
