Product Descriptions

The ICS557-05A is a spread-spectrum clock generator that supports PCI-Express requirements. It is used in PC or embedded systems to substantially reduce electro-magnetic interference (EMI). The device provides four differential HCSL or LVDS high-frequency outputs with spread spectrum capability. The output frequency and spread type are selectable using external pins.

Product Features

• Packaged in 20-pin TSSOP

• Available in RoHS 5 (green) or RoHS 6 (green and lead free) complaint package

• Supports PCI-Express applications

• Four differential spread spectrum clock outputs

• Spread spectrum for EMI reduction

• Uses external 25 MHz clock or crystal input

• Power down pin turns off chip

• OE control tri-states outputs

• Spread and frequency selection via external pins

• Spread Bypass option available

• Industrial temperature range available

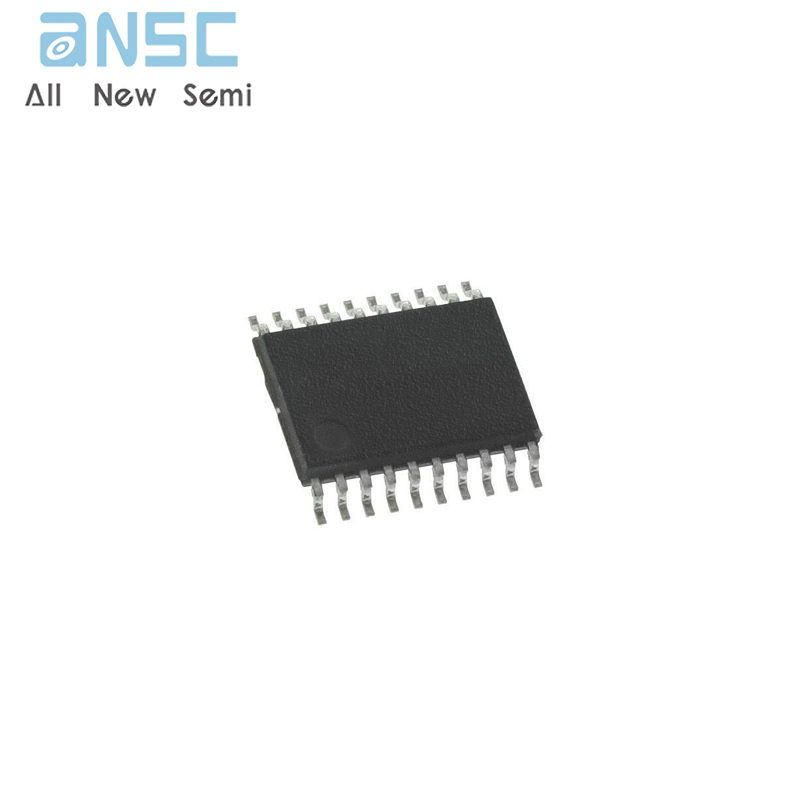

Product Photos

For more product information, please download the PDF
