Product  Descriptions

The TS68230 parallel interface/timer (PI/T) provides versatile double buffered parallel interfaces and a system oriented timer for TS68000 systems. The parallel interfaces operate in unidirectional or bidirectional modes, either 8 or 16 bits wide. In the unidirectional modes, an associated data direction register determines whether each port pin is an input or output. In the bidirectional modes the data direction registers are ignored and the direction is determined dynamically by the state of four handshake pins.

These programmable handshake pins provide an interface flexible enough for connection to a wide variety of low, medium, or high speed peripherals or other computer systems. The PI/T ports allow use of vectored or auto-vectored interrupts, and also provide a DMA request pin for connection to the 68440 direct memory access controller (DMAC) or a similar circuit. The PI/T timer contains a 24-bit wide counter and a 5-bit prescaler. The timer may be clocked by the system clock (PI/T CLK pin) or by an external clock (TIN pin), and a 5-bit prescaler can be used. It can generate periodic interrupts, a square wave, or a single interrupt after a programmed time period. It can also be used for elapsed time measurement or as a device watchdog.

Product Features

. TS68000 BUS COMPATIBLE

. PORT MODES INCLUDE :

BIT I/O

UNIDIRECTIONAL 8 BIT AND 16 BIT

BIDIRECTIONAL 8 BIT AND 16 BIT

. PROGRAMMABLE HANDSHAKING OPTIONS

. 24-BIT PROGRAMMABLE TIMER MODES

. FIVE SEPARATE INTERRUPT VECTORS

. SEPARATE PORT AND TIMER INTERRUPT SERVICE REQUESTS

. REGISTERS ARE READ/WRITE AND DIRECTLY ADDRESSABLE

. REGISTERS ARE ADDRESSED FOR MOVEP (Move Peripheral) AND DMAC COMPATIBILITY

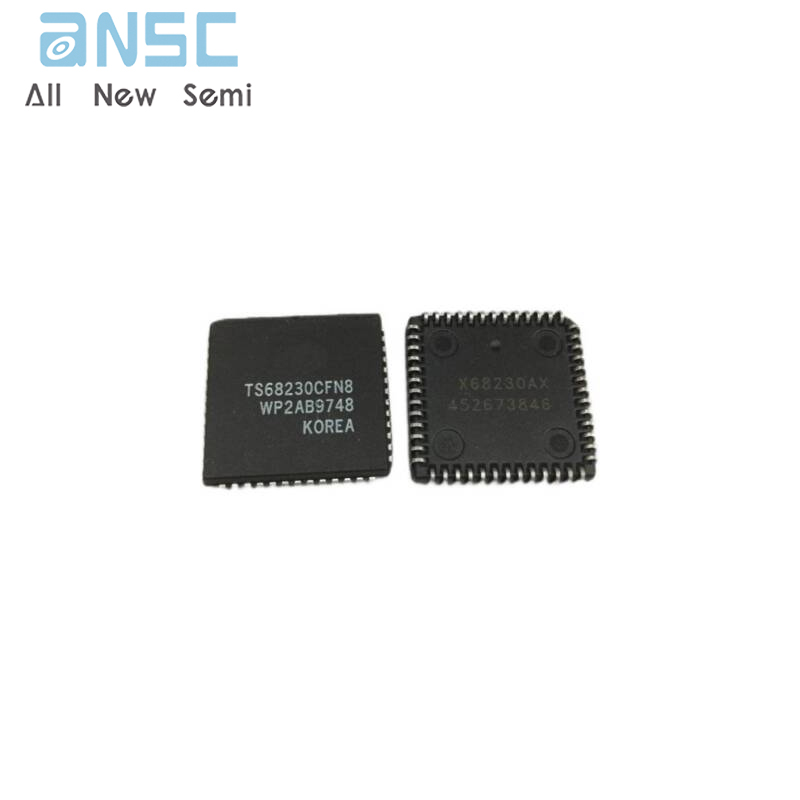

Product Photos

For more product information, please download the PDF
