Product Descriptions
The DS8921, DS8921A, and DS8921AT devices are differential line driver and receiver pairs designed specifically for applications meeting the ST506, ST412, and ESDI disk drive standards. In addition,these devices meet the requirements of the EIA standard RS-422.
The DS8921x receivers offer an input sensitivity of 200 mV over a ±7 V common mode operating range.Hysteresis is incorporated (typically 70 mV) to improve noise margin for slowly changing input waveforms.
The DS8921x drivers are designed to provide unipolar differential drive to twisted-pair or parallel wire transmission lines. Complementary outputs are logically ANDed and provide an output skew of 0.5 ns (typical) with propagation delays of 12 ns.
The DS8921x devices are designed to be compatible with TTL and CMOS.
Product Features
• 12-ns Typical Propagation Delay
• Output Skew: 0.5 ns Typical
• Meets the Requirements of EIA Standard RS-422
• Complementary Driver Outputs
• High Differential or Common-Mode Input Voltage Ranges of ±7 V
• ±0.2 V Receiver Sensitivity Over the Input Voltage Range
• Receiver Input Hysteresis: 70 mV Typical
• DS8921AT Industrial Temperature Operation:(−40°C to +85°C)
Product Applications
• Differential Line Driver and Receiver for:
– ST506 Disk Drive Standard
– ST412 Disk Drive Standard
– ESDI Disk Drive Standard
– RS-422 Interface
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DS8921AN |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full |
| Receiver Hysteresis | 70 mV |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-MDIP |
| Base Product Number | DS8921 |

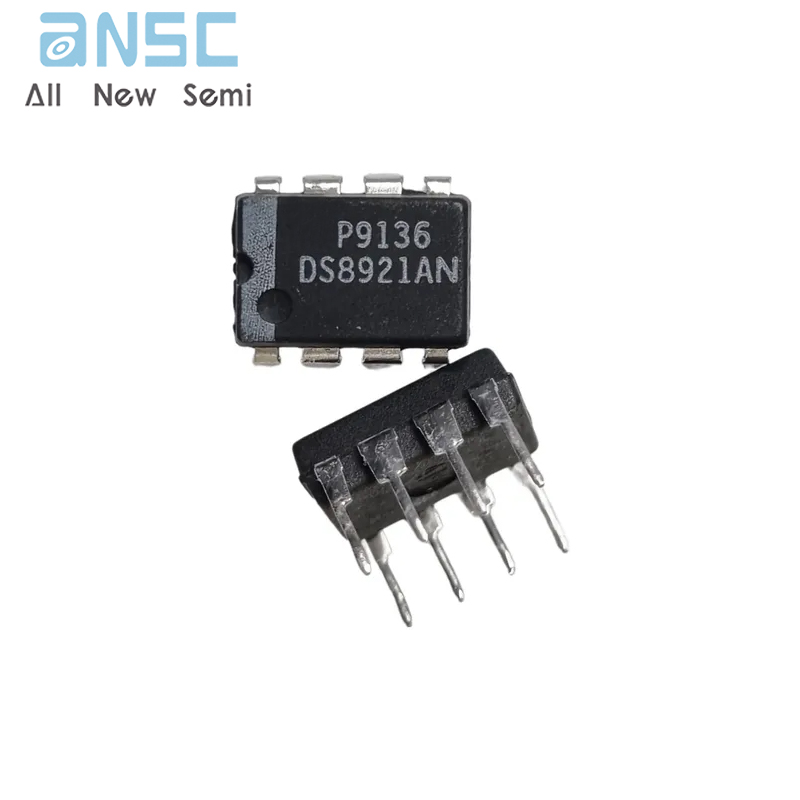

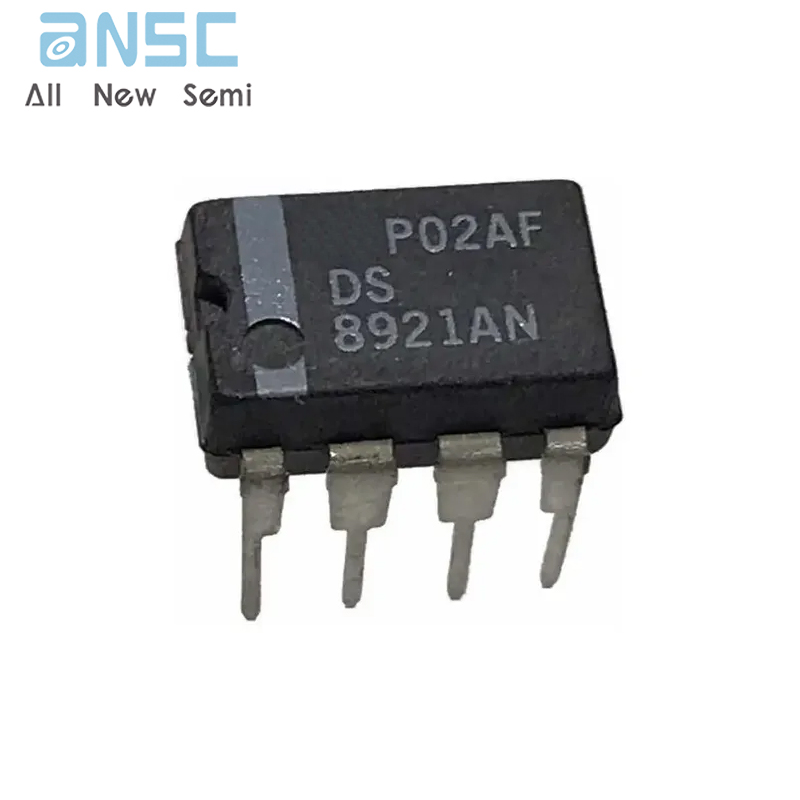

Product Photos
For more product information, please download the PDF
