Product Descriptions
These devices are designed for use in general−purpose amplifier and switching applications.
Product Features
• DC Current Gain Specified to 10 A
• High Current Gain − Bandwidth Product −fT = 2.0 MHz (Min) @ IC= 500 mAdc
• Pb−Free Packages are Available*
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MJE3055T |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 8V @ 3.3A, 10A |
| Current - Collector Cutoff (Max) | 700µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 4A, 4V |
| Power - Max | 75 W |
| Frequency - Transition | 2MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | MJE3055 |

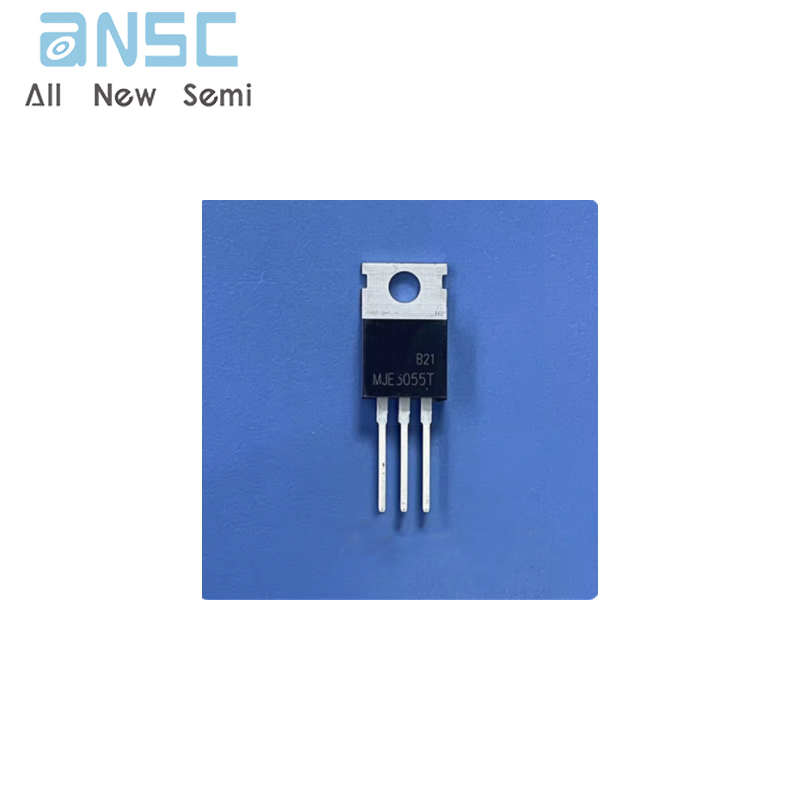

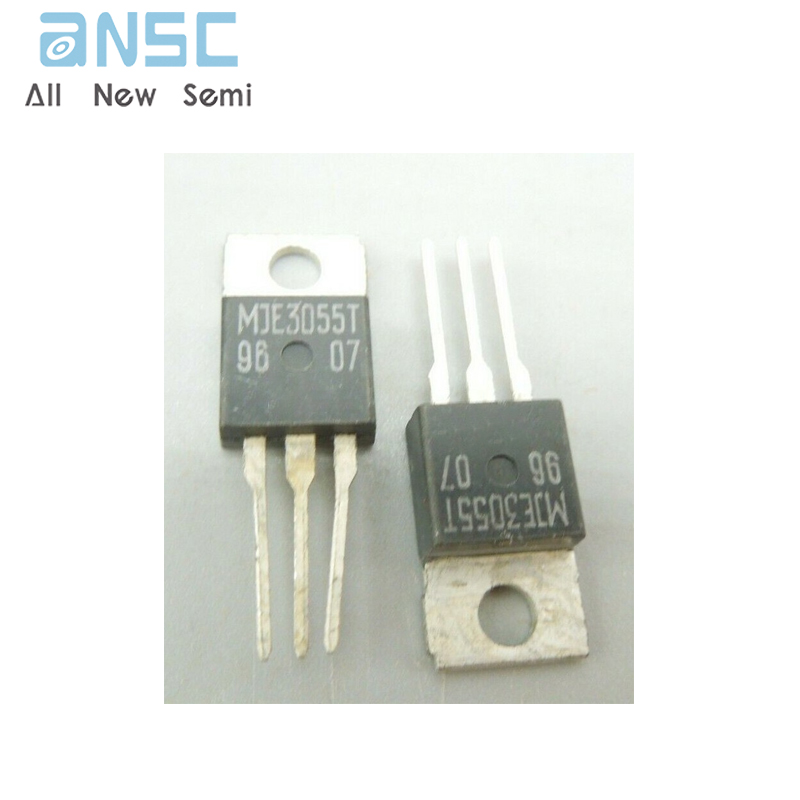

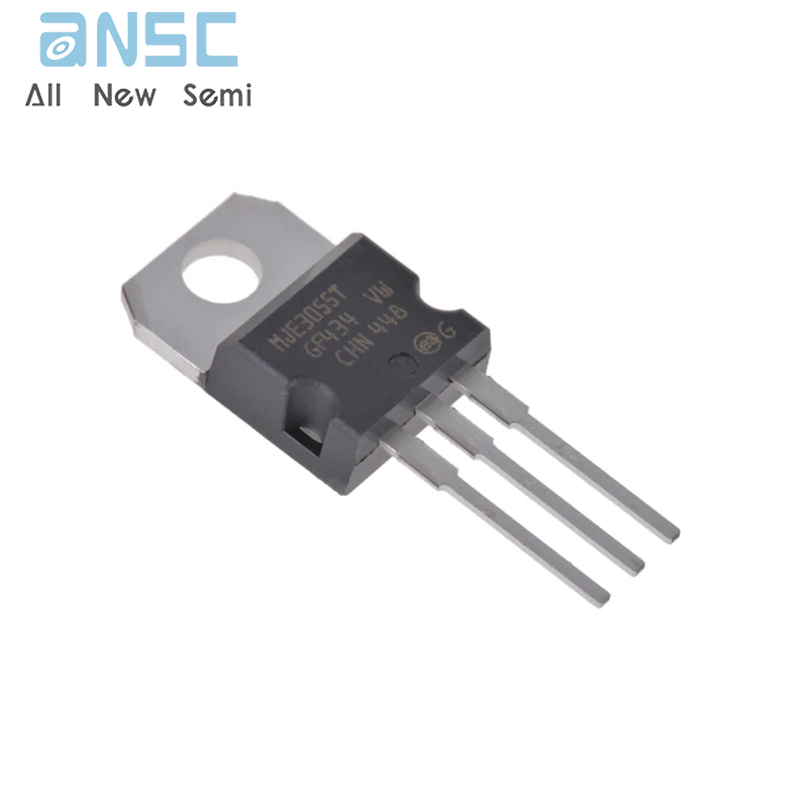

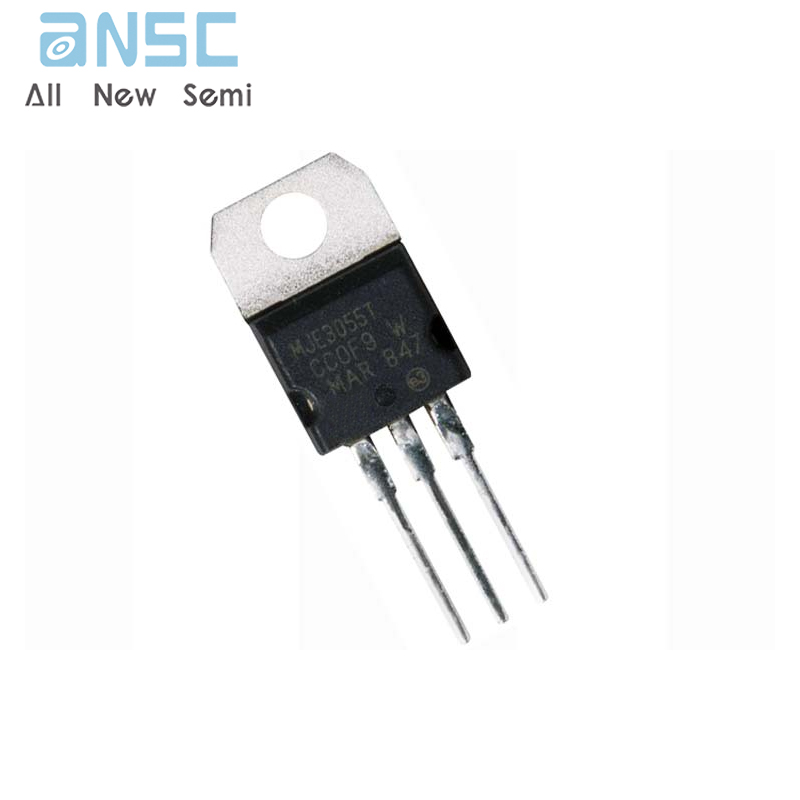

Product Photos
