Product Descriptions
The LM78LXX series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications. When used as a zener diode/resistor combination replacement, the LM78LXX usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. These regulators can provide local on card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow the LM78LXX to be used in logic systems, instrumentation, HiFi, and other solid state electronic equipment.
Product Features
• LM78L05 in DSBGA Package
• Output Voltage Tolerances of ±5 percent Over the Temperature Range
• Output Current of 100mA
• Internal Thermal Overload Protection
• Output Transistor Safe Area Protection
• Internal Short Circuit Current Limit
• Available in TO-92 and SOIC-8 Low Profile Packages
• No External Components
• Output Voltages of 5.0V, 6.2V, 8.2V, 9.0V, 12V,15V
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LM78L05ACM |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 3 mA |
| PSRR | 62dB (120Hz) |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM78L05 |

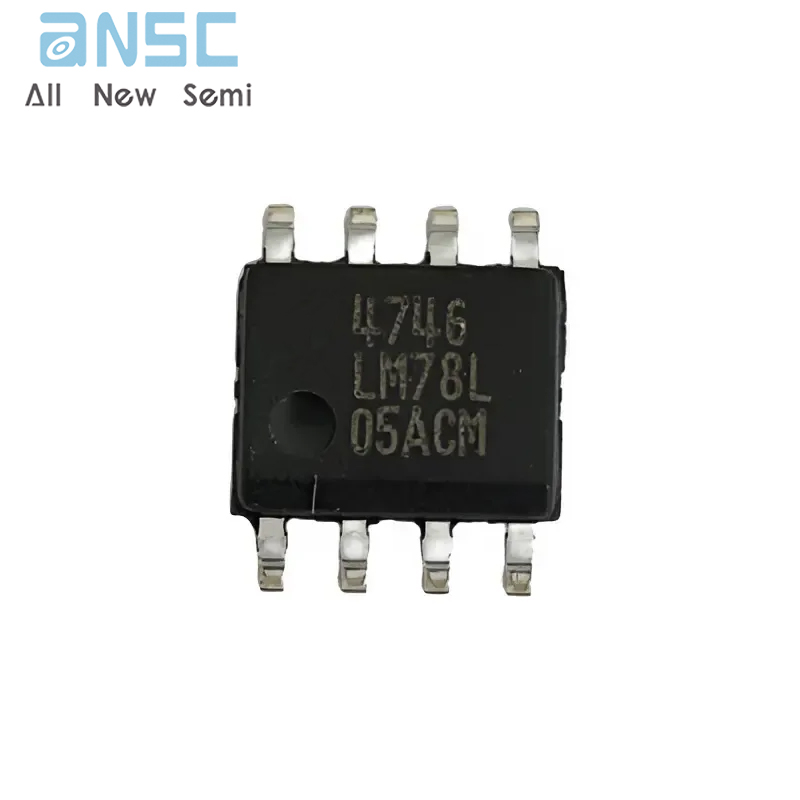

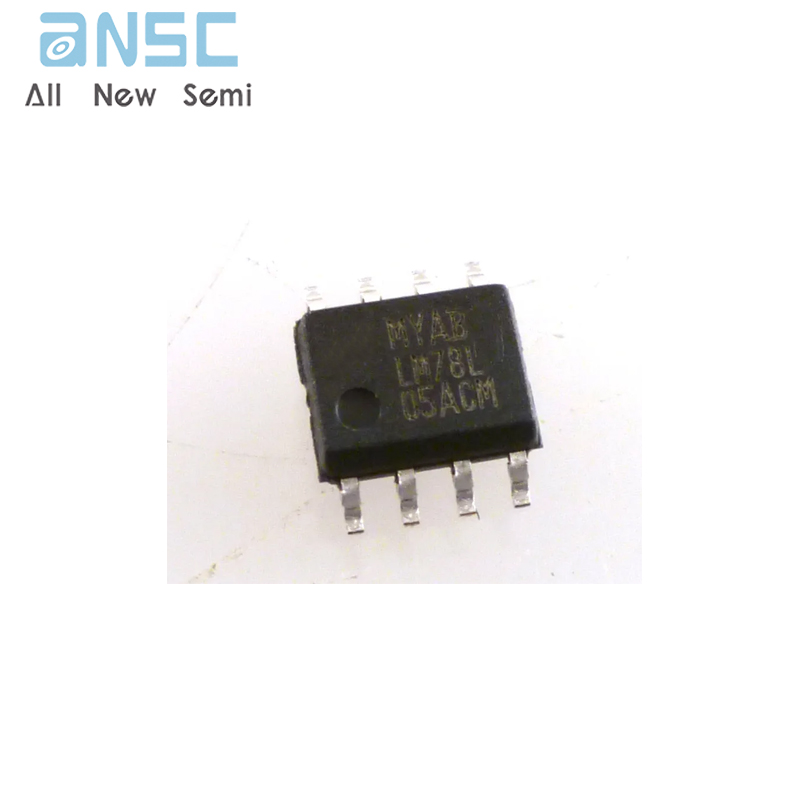

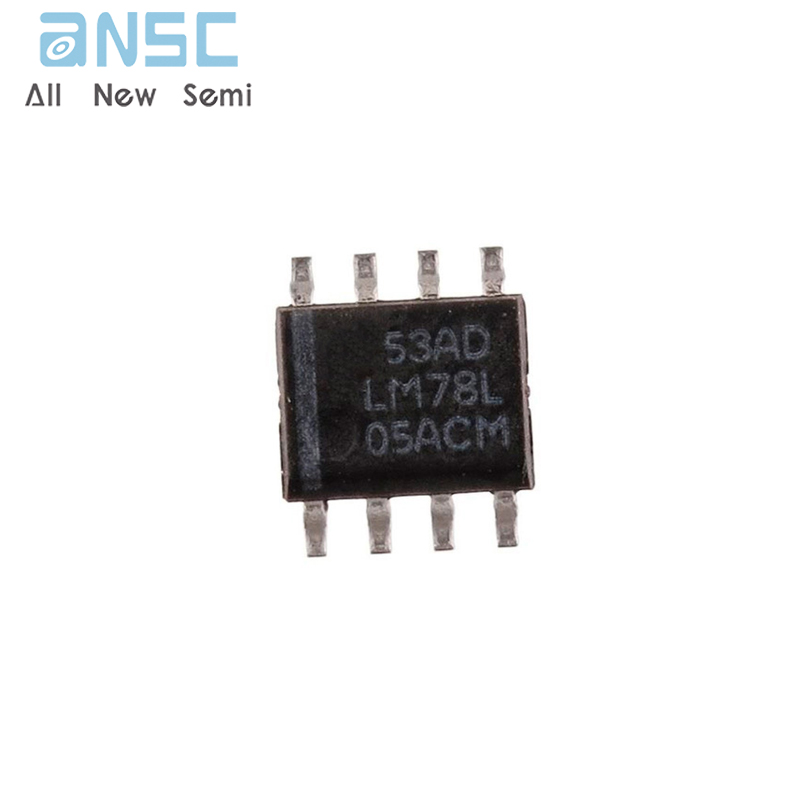

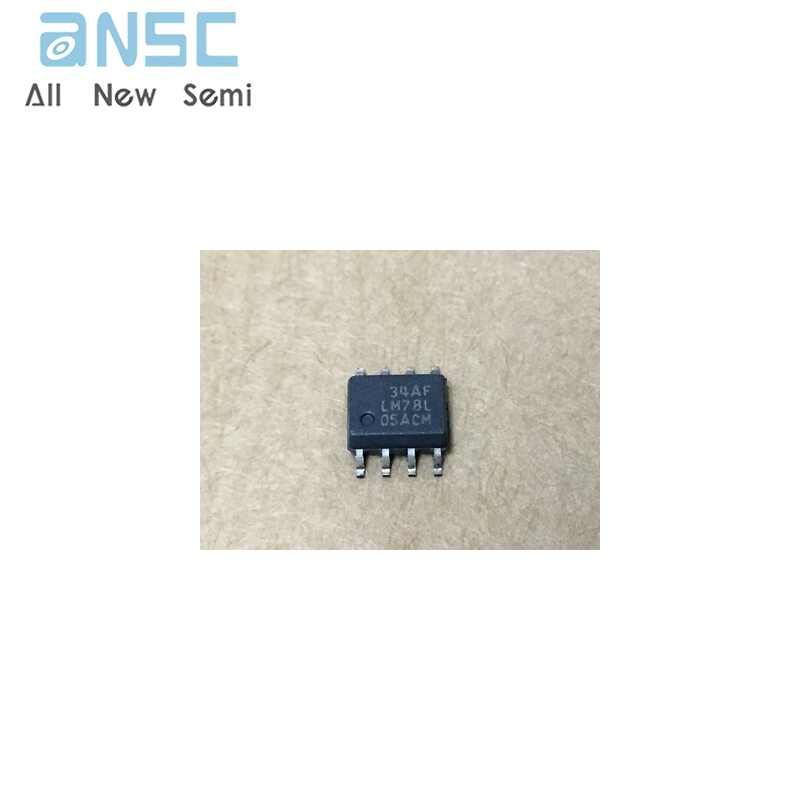

Product Photos
