Product Descriptions
The TIP105 is a silicon Epitaxial-Base PNP transistor in monolithic Darlington configuration mounted in TO-220 plastic package intented for use in power linear and switching applications.
The preferred complementary NPN type is the TIP102.
Product Features
■ STMicroelectronics PREFERRED SALESTYPE
■ INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE
■ hFE CLASSIFICATION
Product Applications
■ LINEAR AND SWITCHING INDUSTRIAL EQUIPMENT
■ AUDIO POWER AMPLIFIER
■ GENERAL POWER SWITCHING
■ DC-AC CONVERTER
■ EASY DRIVER FOR LOW VOLTAGE DC MOTOR
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TIP105 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Transistor Type | PNP - Darlington |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 80mA, 8A |
| Current - Collector Cutoff (Max) | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 2000 @ 3A, 4V |
| Power - Max | 2 W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | TIP105 |

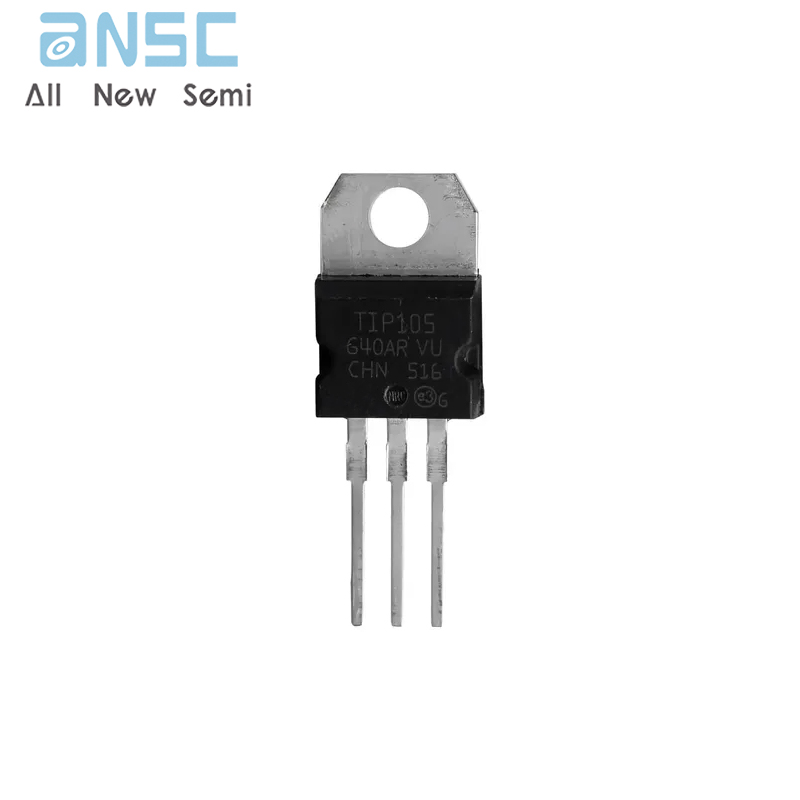

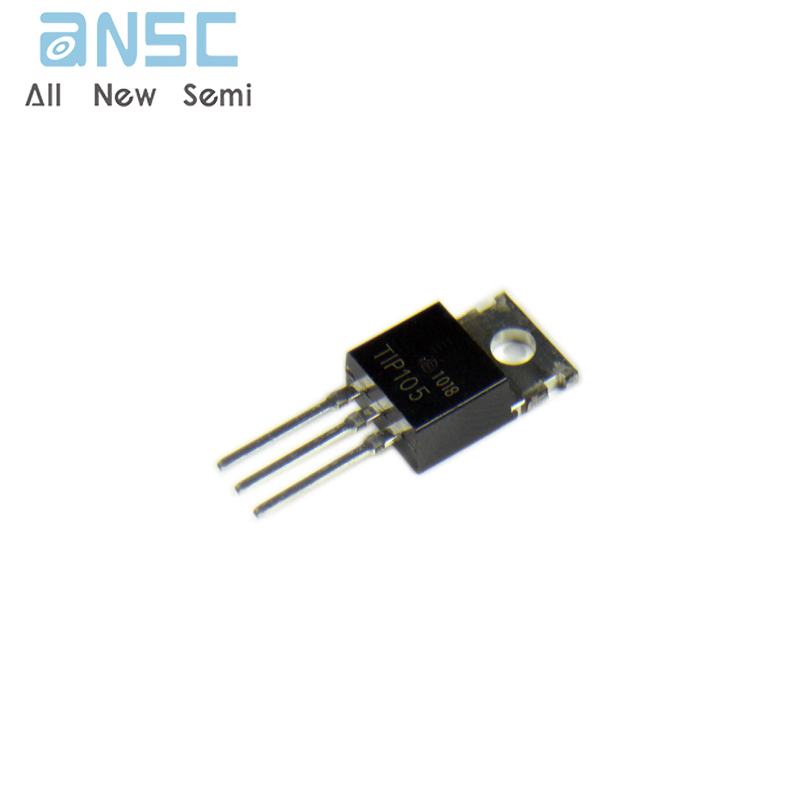

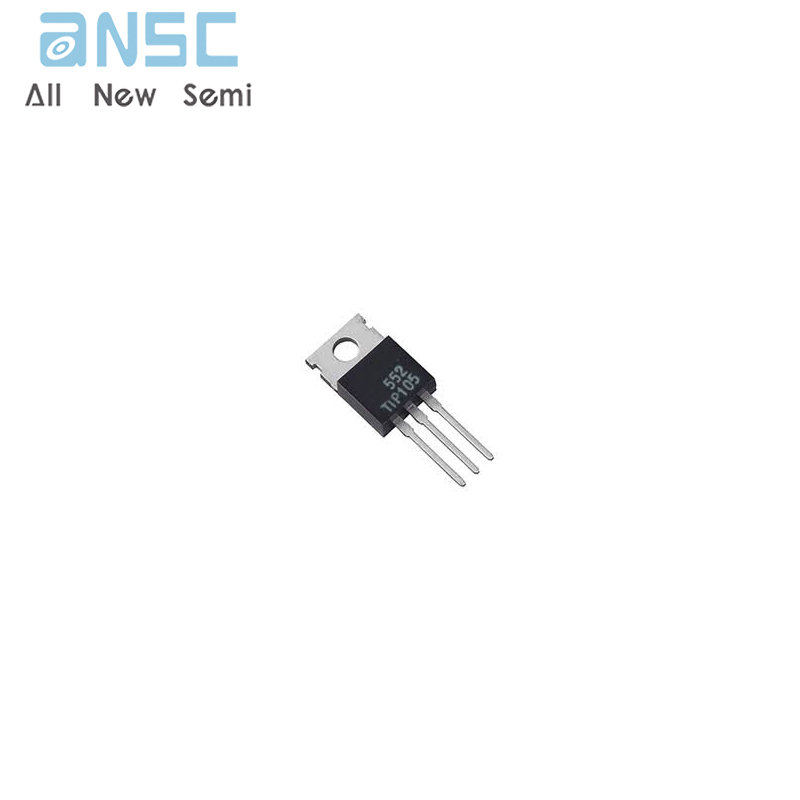

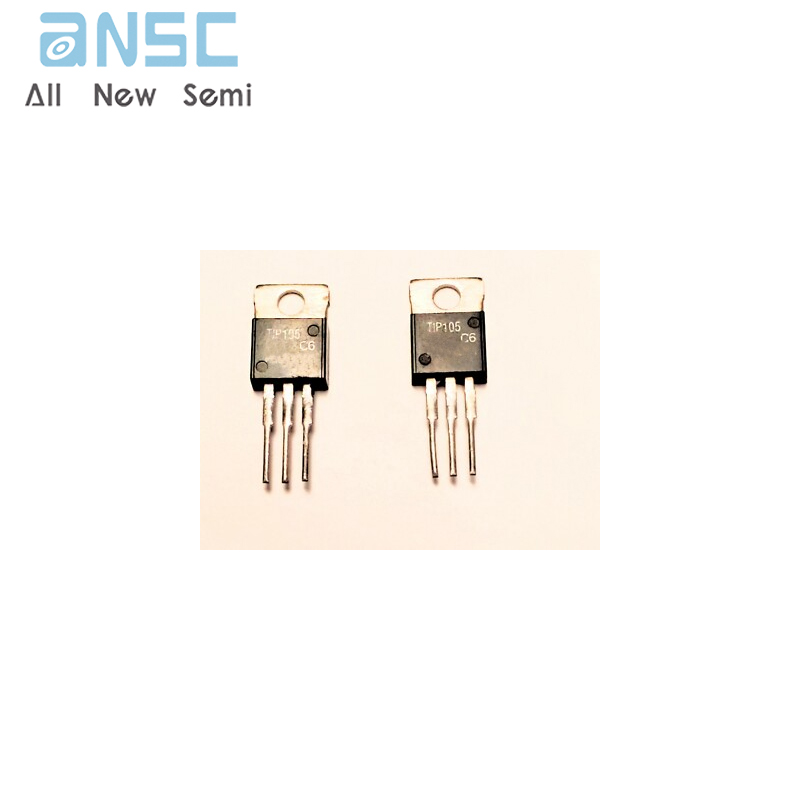

Product Photos
For more product information, please download the PDF
