Product Descriptions
This monolithic integrated circuit is an adjustable 3-terminal positive-voltage regulator designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 V to 37 V range. It employs internal current limiting, thermal shutdown, and safe area compensation.
Product Features
• Output-Current In Excess of 1.5 A
• Output-Adjustable Between 1.2 V and 37 V
• Internal Thermal Overload Protection
• Internal Short-Circuit Current Limiting
• Output-Transistor Safe Operating Area Compensation
• TO-220 Package
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LM317T |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 12 mA |
| PSRR | 75dB ~ 60dB (120Hz) |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Base Product Number | LM317 |

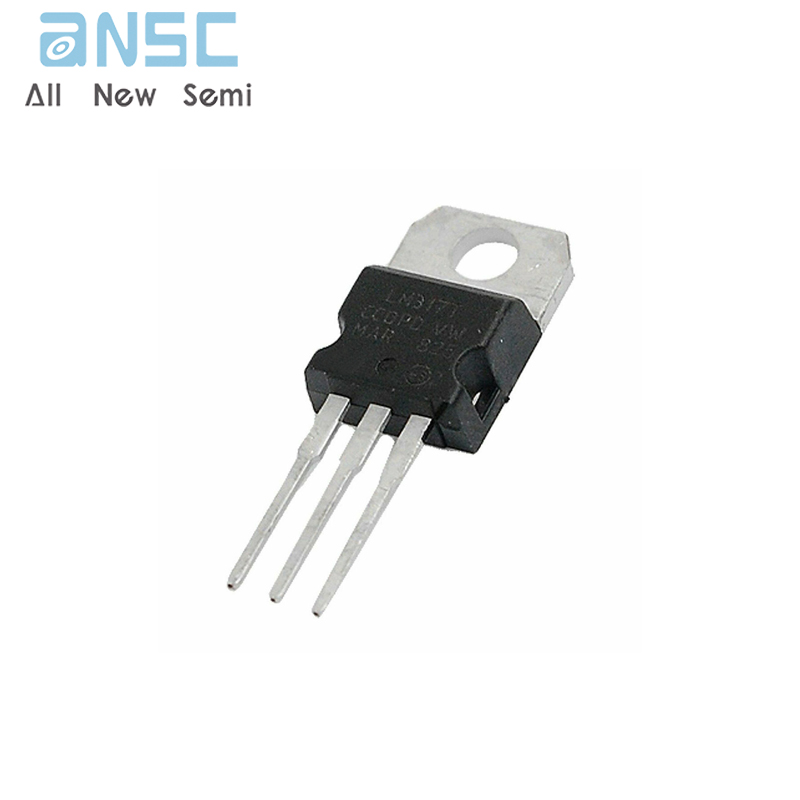

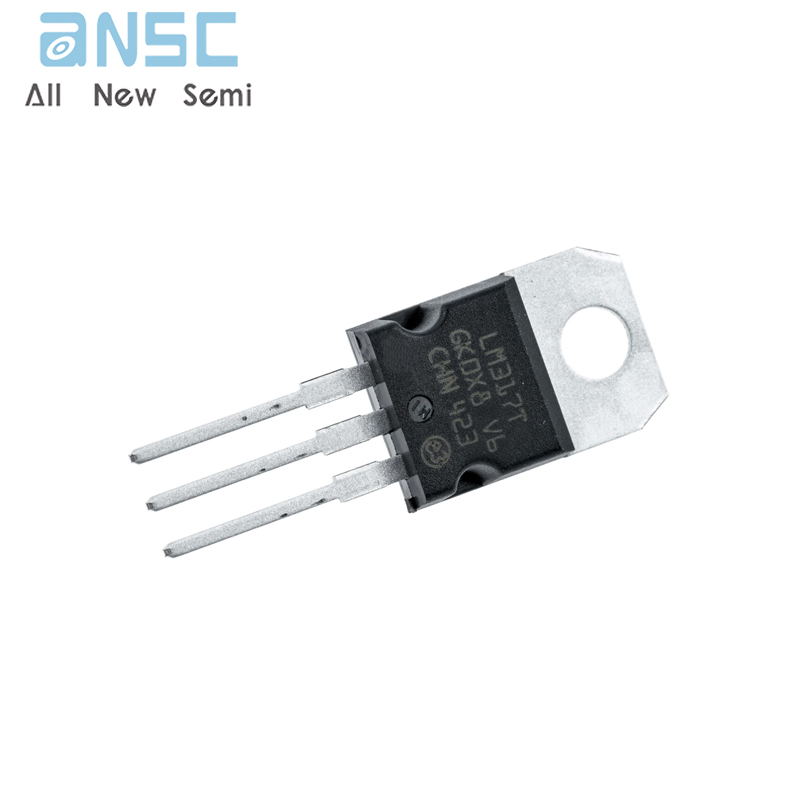

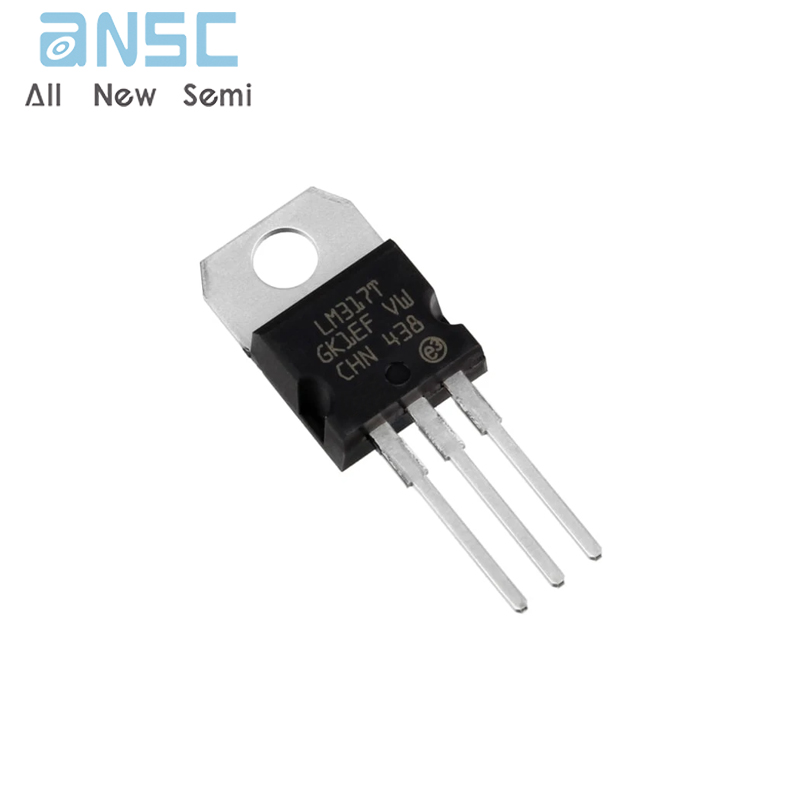

Product Photos
