Product Descriptions
The MAX1658/MAX1659 linear regulators maximize battery life by combining ultra-low supply currents and low dropout voltages. They feature Dual Mode™ operation, which presets the output to 3.3V (MAX1658) or 5V (MAX1659), or permits it to be adjusted between 1.25V and 16V. The regulator supplies up to 350mA, with a typical dropout of 650mV for the MAX1658 and 490mV for the MAX1659. With their P-channel MOSFET pass transistor, these devices maintain a low quiescent current from zero output current to the full 350mA, even in dropout. They support input voltages ranging from 2.7V to 16.5V.
The MAX1658/MAX1659 feature a 1µA shutdown mode, reverse battery protection, short-circuit protection, and thermal shutdown. They are available in a special highpower (1.2W), 8-pin SO package designed specifically for compact applications.
Product Features
♦ Wide Input Voltage Range: 2.7V to 16.5V
♦ Low, 490mV Dropout at 350mA Output Current (MAX1659)
♦ 30µA Supply Current
♦ 1µA Max Shutdown Current
♦ High-Power (1.2W) 8-Pin SO Package
♦ Dual Mode Operation Output:
Fixed 3.3V (MAX1658)
Fixed 5.0V (MAX1659) or Adjustable (1.25V to 16V)
♦ Thermal Overload Protection
♦ Current-Limit Protection
♦ Reverse Battery Protection
Product Applications
Digital Cordless Phones
PCS Phones
Cellular Phones
PCMCIA Cards
Modems
Hand-Held Instruments
Palmtop Computers
Electronic Planners
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX1658ESA |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output (Min/Fixed) | 1.25V (3.3V) |
| Voltage - Output (Max) | 16V |
| Voltage Dropout (Max) | 1.5V @ 350mA |
| Current - Output | 350mA |
| Current - Quiescent (Iq) | 60 µA |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MAX1658 |

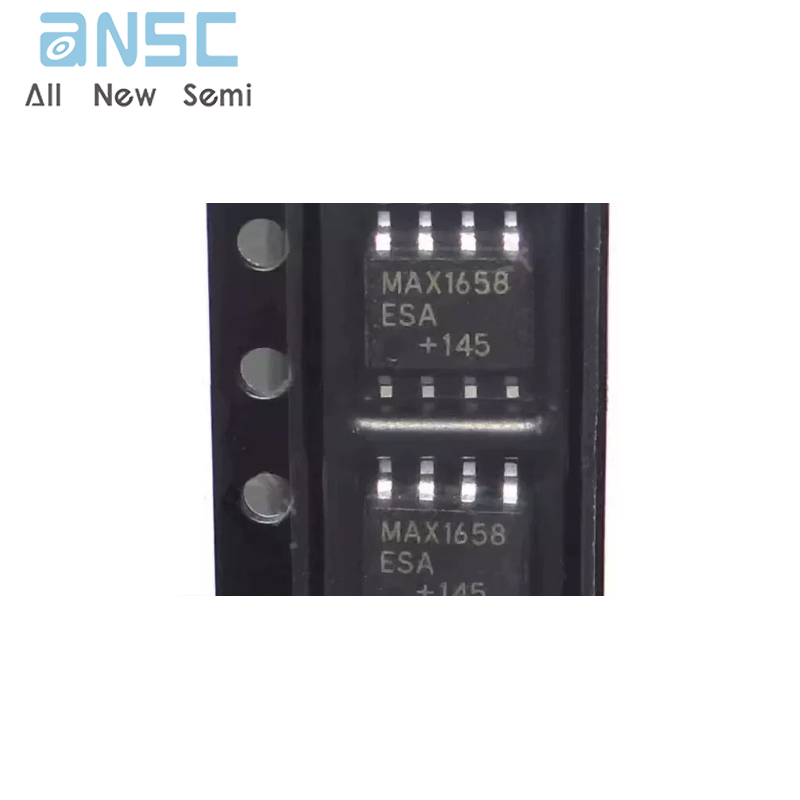

Product Photos
