Product Descriptions
OPA343 series rail-to-rail CMOS operational amplifiers are designed for low-cost, miniature applications. They are optimized for low-voltage, single-supply operation. Rail-to-rail input/output and high-speed operation make them ideal for driving sampling Analog-to-Digital (A/D) converters. They are also well suited for general-purpose and audio applications as well as providing I/V conversion at the output of Digital-to-Analog (D/A) converters. Single, dual, and quad versions have identical specifications for design flexibility.
The OPA343 series operates on a single supply as low as 2.5V, and input common-mode voltage range extends 500mV beyond the supply rails. Output voltage swings to within 1mV of the supply rails with a 100kΩ load. They offer excellent dynamic response (BW = 5.5MHz, SR = 6V/µs), yet quiescent current is only 850µA. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.
The single (OPA343) packages are the tiny SOT-23-5 surface mount and SO-8 surface mount. The dual (OPA2343) comes in the miniature MSOP-8 surface mount and SO-8 surface mount. The quad (OPA4343) packages are the space-saving SSOP-16 surface mount, SO-14 surface mount, and TSSOP-14 surface mount. All are specified from –40°C to +85°C and operate from –55°C to +125°C. A SPICE macromodel is available for design analysis.
Product Features
● RAIL-TO-RAIL INPUT/OUTPUT
● MICRO SIZE PACKAGES
● WIDE BANDWIDTH: 5.5MHz
● HIGH SLEW RATE: 6V/µs
● LOW THD+NOISE: 0.0007 PERCENT (f = 1kHz)
● LOW QUIESCENT CURRENT: 850µA/chan
● SINGLE, DUAL, AND QUAD VERSIONS
Product Applications
● DRIVING A/D CONVERTERS
● PCMCIA CARDS
● DATA ACQUISITION
● AUDIO PROCESSING
● COMMUNICATIONS
● ACTIVE FILTERS
● TEST EQUIPMENT
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-OPA2343UA |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | MicroAmplifier™ |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 6V/µs |
| Gain Bandwidth Product | 5.5 MHz |
| Current - Input Bias | 0.2 pA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 850µA (x2 Channels) |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | OPA2343 |

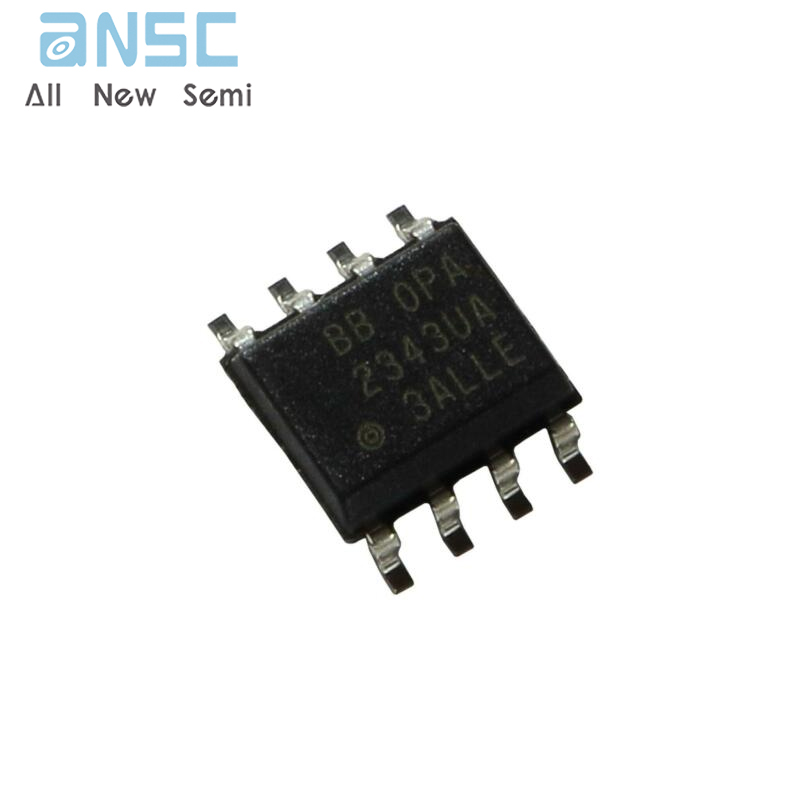

Product Photos
