Product Descriptions

The HLCP-X100 and HLMP-2XXX series light bars are rectangular light sources designed for a variety of applications where a large bright source of light is required. These light bars are configured in singlein-line and dual-in-line packages that contain either single or segmented light emitting areas. The AlGaAs Red HLCP-X100 series LEDs use double heterojunction AlGaAs on a GaAs substrate. The HER HLMP-2300/2600 and Yellow HLMP-2400/2700 series LEDs have their p-n junctions diffused into a GaAsP epitaxial layer on a GaP substrate. The Green HLMP2500/2800 series LEDs use a liquid phase GaP epitaxial layer on a GaP substrate. The bicolor HLMP2900 series use a combination of HER/Yellow or HER/ Green LEDs.

Product Features

• Large bright, uniform light emitting areas

• Choice of colors

• Categorized for light output

• Yellow and Green categorized for dominant wavelength

• Excellent ON-OFF contrast

• X-Y stackable

• Flush mountable

• Can be used with panel and legend mounts

• Light emitting surface suitable for legend attachment per Application Note 1012

• HLCP-X100 Series designed for low current operation

• Bicolor devices available

Product Applications

• Business machine message annunciators

• Telecommunications indicators

• Front panel process status indicators

• PC board identifiers

• Bar graphs

Product Specification

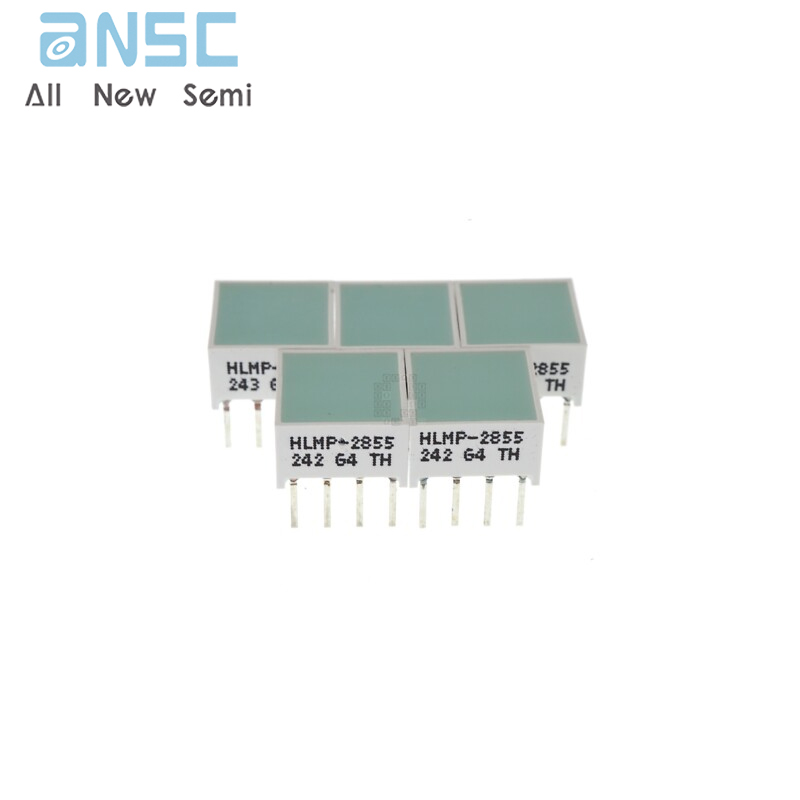

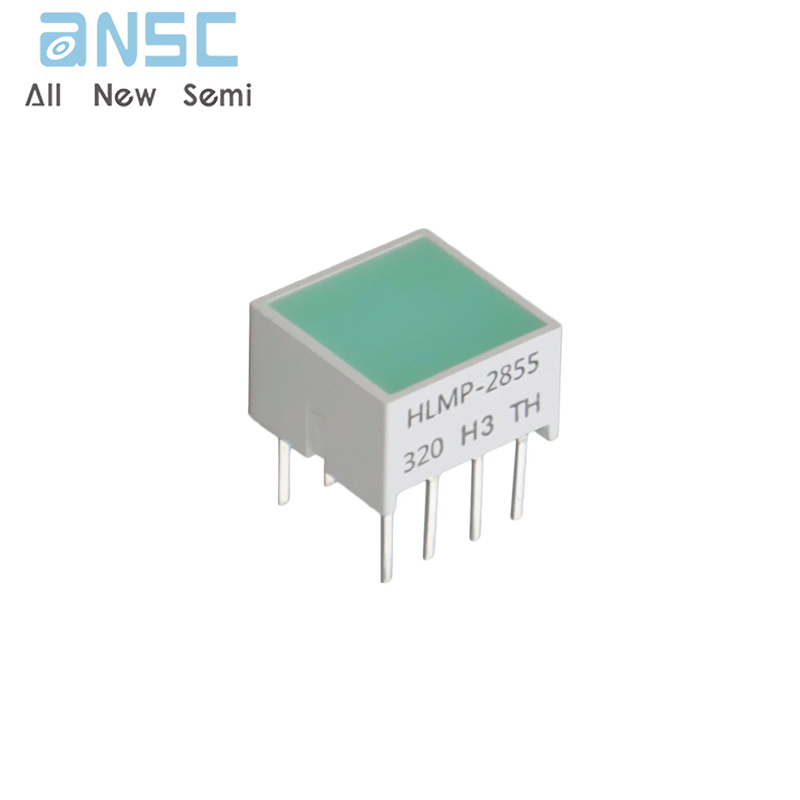

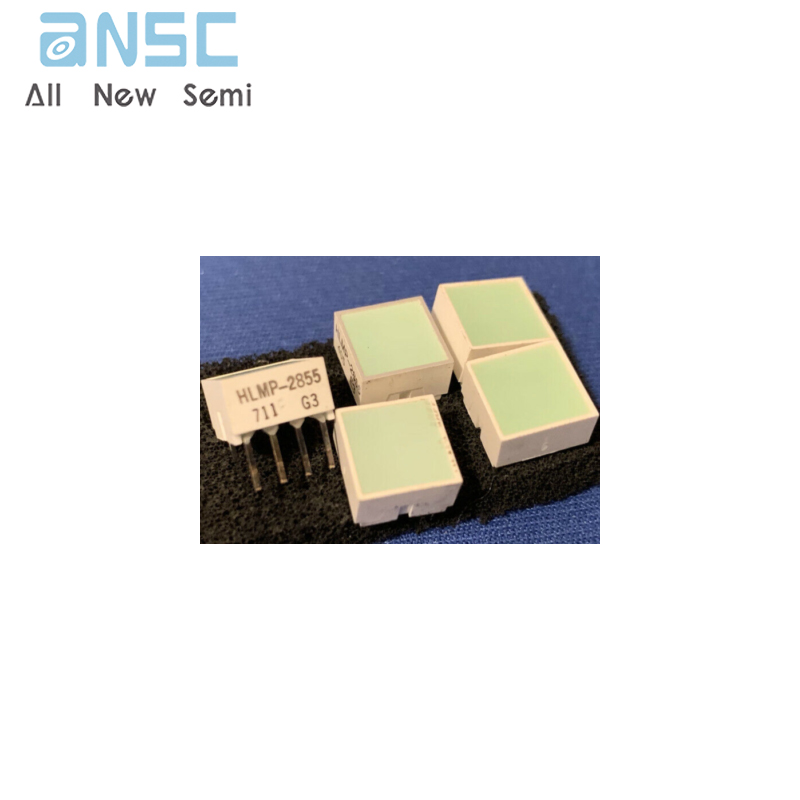

Product Photos
