Product Descriptions
The ADG528A and ADG529A are CMOS monolithic analog multiplexers with eight channels and four dual channels, respectively. On-chip latches facilitate microprocessor interfacing. The ADG528A switches one of eight inputs to a common output, depending on the state of three binary addresses and an enable input. The ADG529A switches one of four differential inputs to a common differential output, depending on the state of two binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.
The ADG528A and ADG529A are designed on an enhanced LC2 MOS process, which gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The devices can comfortably operate anywhere in the 10.8 V to 16.5 V single- or dual-supply range. These multiplexers also feature high switching and low RON.
Product Features
44 V Supply Maximum Rating
VSS to VDD Analog Signal Range
Single-/Dual-Supply Specifications
Wide Supply Ranges (10.8 V to 16.5 V)
Microprocessor Compatible (100 ns WR Pulse)
Extended Plastic Temperature Range
(–40°C to +85°C)
Low Leakage (20 pA typ)
Low Power Dissipation (28 mW max)
Available in 18-Lead DIP/SOIC and 20-Lead PLCC Packages
Superior Alternative to:
DG528
DG529
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADG528AKPZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching(ΔRon) | 22.5Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Base Product Number | ADG528 |

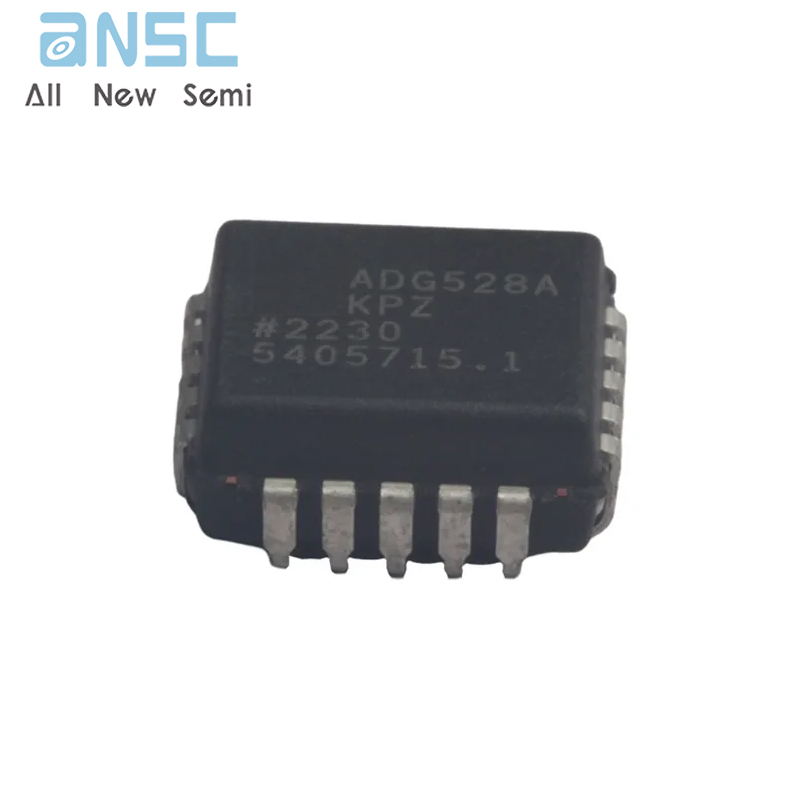

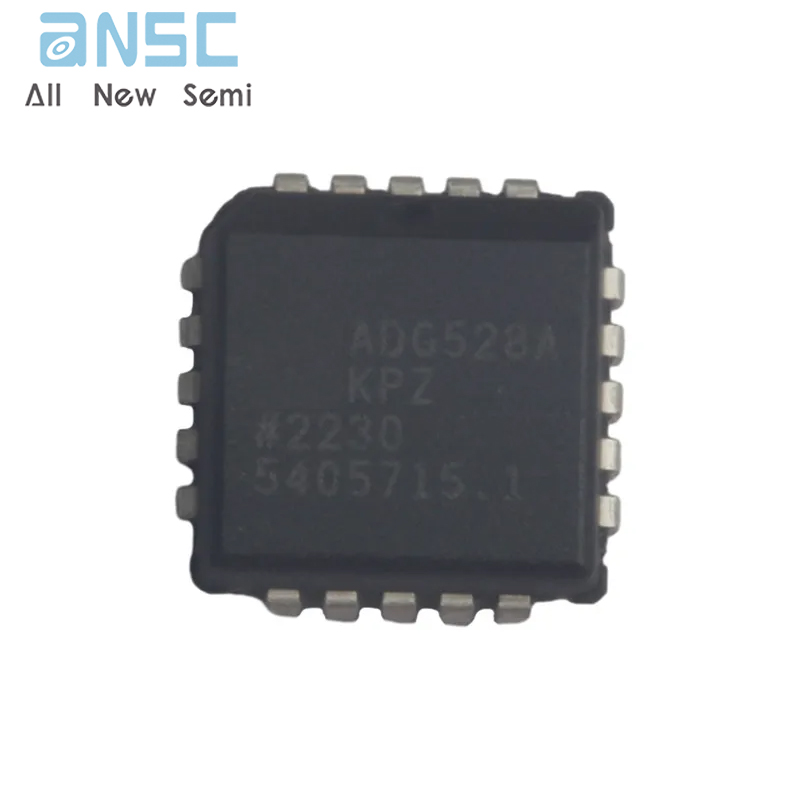

Product Photos
