Quad 2-input OR gate Electronic components BOM Integrated circuit IC 74HC32D_Integrated Circuit

Product Descriptions

• Quad 2-Input OR Gate

The 74HC32D is a high speed CMOS 2-INPUT OR GATE fabricated with silicon gate C 2MOS technology.

It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.

The internal circuit is composed of 2 stages including buffer output, which provide high noise immunity and stable output.

All inputs are equipped with protection circuits against static discharge or transient excess voltage.

(1) High speed: tpd = 6 ns (typ.) at VCC = 5 V

(2) Low power dissipation: ICC = 1.0µA (max) at Ta = 25℃

(3) Balanced propagation delays: tPLH≈ tPHL

(4) Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V

ANSM-Part#	74HC32D
category	Integrated Circuit (IC)
	Logic - Gate and Inverter
	Toshiba Semiconductor and Storage
series	74HC
Package	Tape and Reel (TR)
Package	Shear Band (CT)
product status	in stock
logical type	OR gate
Number of circuits	4
input number	2
characteristic	-
Voltage - Powered	2V ~ 6V
Current - Static (Maximum)	1 µA
Current - Output High, Low	5.2mA,5.2mA
logic level - low	0.5V ~ 1.8V
Logic Level - High	1.5V ~ 4.2V
Maximum propagation delay at different V, maximum CL	13ns @ 6V,50pF
Operating temperature	-40°C ~ 125°C
installation type	Surface Mount Type
Supplier Device Packaging	14-SOIC
Package/Enclosure	14-SOIC (0.154", 3.90mm wide)
Basic product number	74HC32

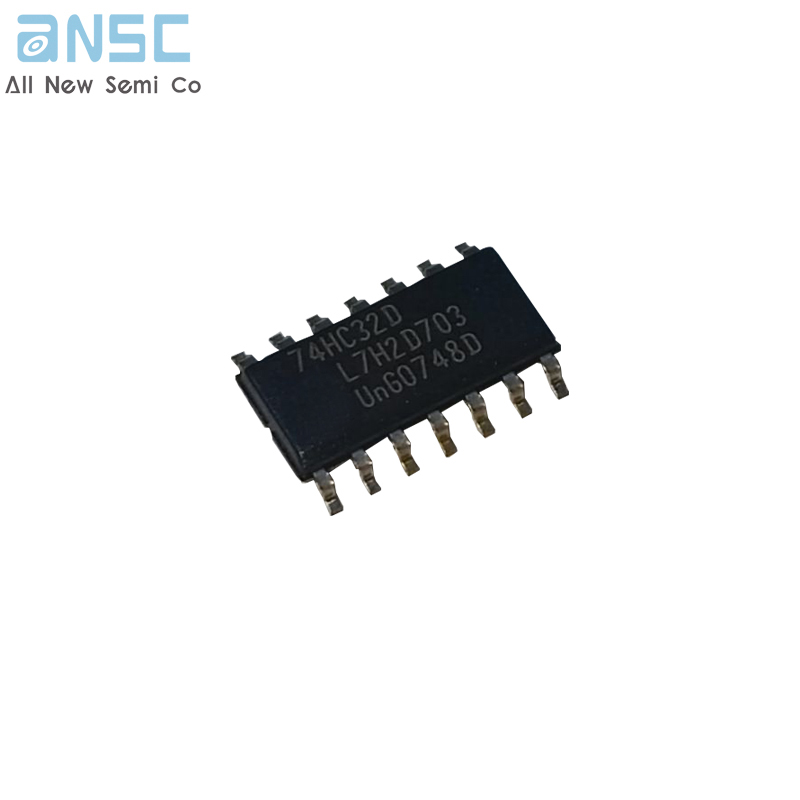

74HC32D
