Product Description
These octal transparent D-type latches feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads.
The HCT573 devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Product Features
• Operating voltage range of 4.5V to 5.5V
• High-Current 3-State Outputs Drive Bus Lines
Directly or Up To 15 LSTTL Loads
• Low power consumption, 80-µA max ICC
• Typical tpd = 21ns
• ±6-mA output drive at 5V
• Low input current of 1µA max
• Inputs are TTL-Voltage compatible
• Bus-structured pinout
Specifications
| ANSM-Part# | SN74HCT573DWR |
| category | Integrated Circuit (IC) |
| Logic - Latches | |
| manufacturer | Texas Instruments |
| series | 74HCT |
| Package | Tape and Reel (TR) |
| Shear Band (CT) | |
| product status | in stock |
| logical type | D-type transparent latch |
| circuit | 0.338888889 |
| output type | Tri-state |
| Voltage - Powered | 4.5V ~ 5.5V |
| independent circuit | 1 |
| Delay Time - Propagation | 25ns |
| Current - Output High, Low | 6mA,6mA |
| Operating temperature | -40°C ~ 85°C |
| installation type | Surface Mount Type |
| Package/Enclosure | 20-SOIC (0.295", 7.50mm wide) |
| Supplier Device Packaging | 20-SOIC |
| Basic product number | 74HCT573 |

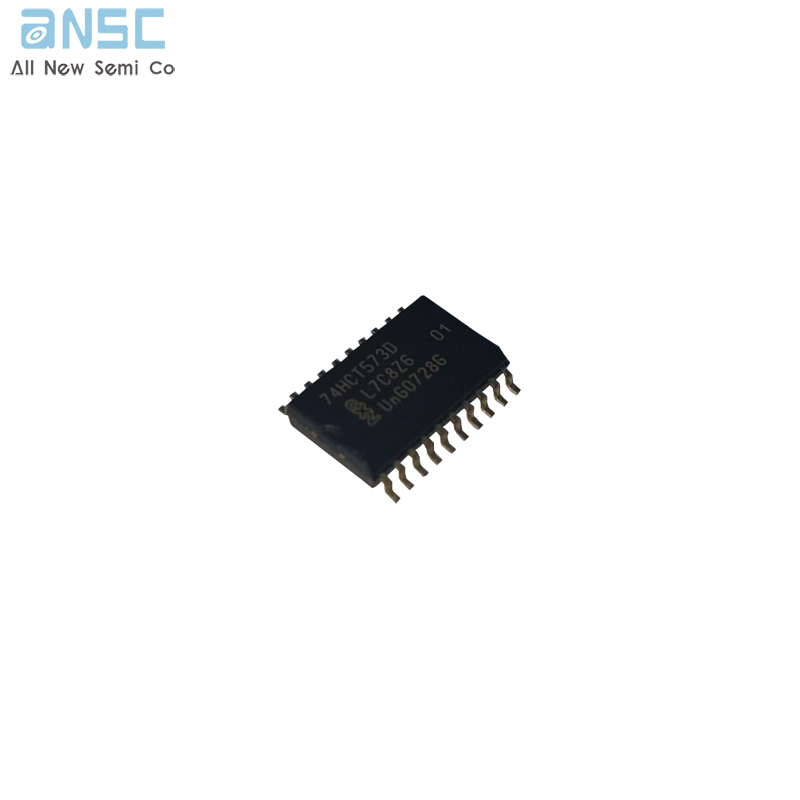

Actual image of the product
