Product Overview
This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-261-4, TO-261AA package. There are 4 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at 0°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 3 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 4. FYI, the basic part number for this IC regulator is LM1117. The way of packing the voltage regulator IC is TR. It works in 800mA output current at mostIt operates in the 10mA Quiescent Current state. It is part of the LM1117-3.3 Series. The IC voltage regulator can work with a supply voltage of 10V volts at top.
Product Features
1.2V dropout voltage
TR method of packing
Product Applications
Home electric appliance
Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC -LM1117MP-3.3/NOPB |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | LM1117-3.3 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| Base Product Number | LM1117 |

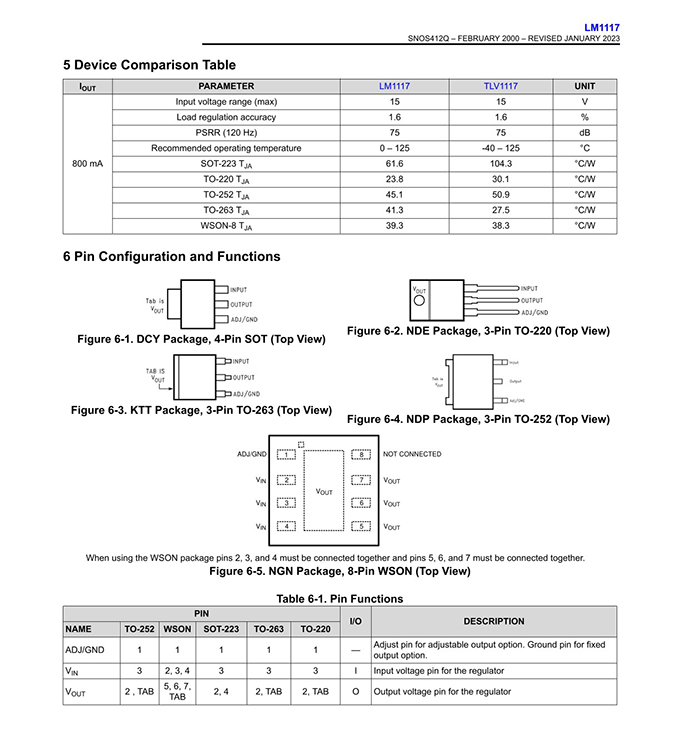

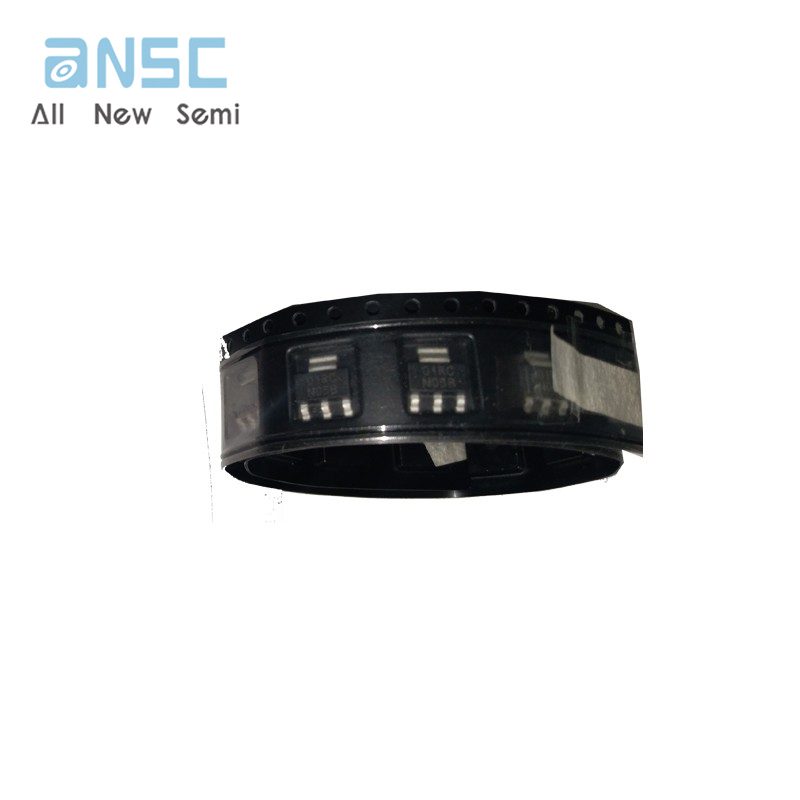

Actual image of the product

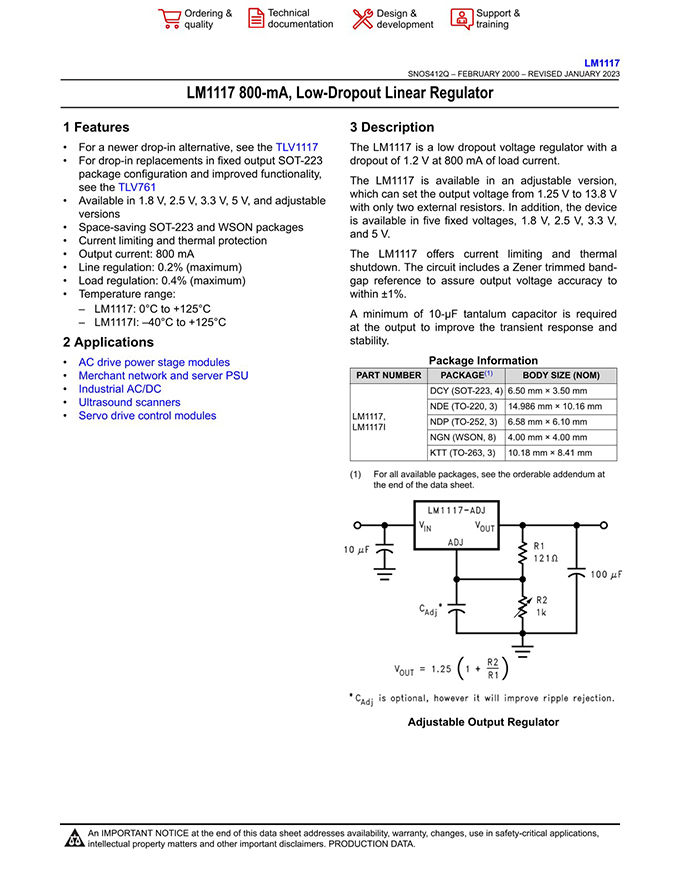

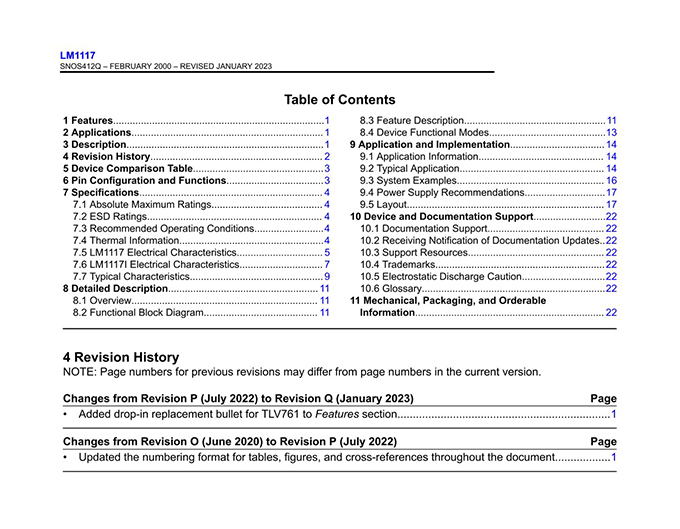

Product datasheet
