Product Details
| DESCRIPTION Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged either in TO-220AC, ISOWATT220AC, TO-220FPAC or D2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. FEATURES AND BENEFITS ■ Very small conduction losses ■ Negligible switching losses ■ Extremely fast switching ■ Insulated package: ISOWATT220AC, TO-220FPAC Insulating voltage = 2000V DC Capacitance = 12pF |
Product Description
| Type# | Description |

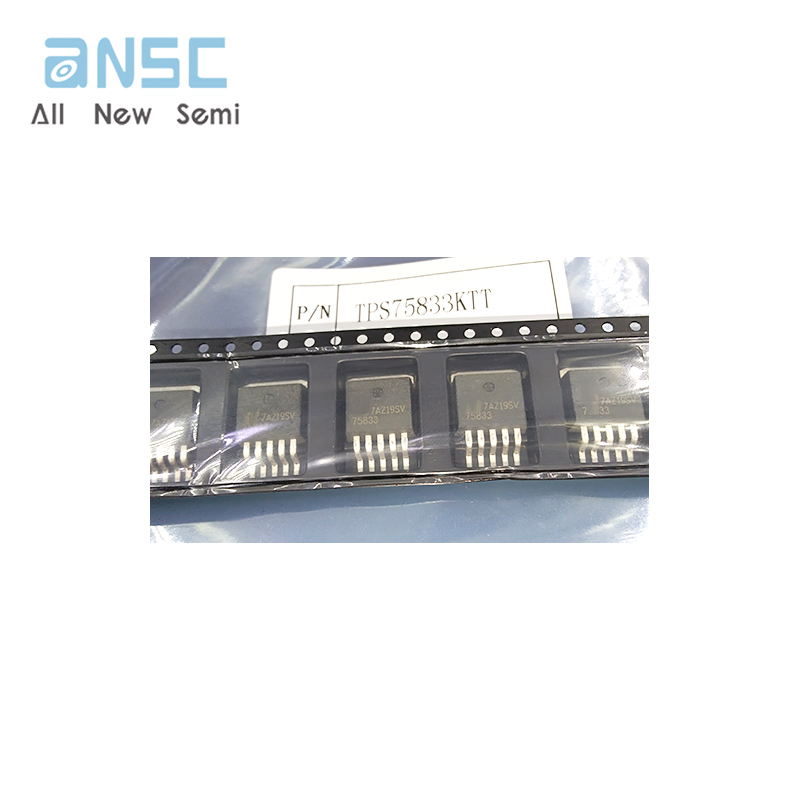

| PART# | TPS75833KTT |
| Ihs Manufacturer | Original |
| Part Package Code | D2PAK |
| Package Description | PLASTIC, D2PAK-5 |
| Pin Count | 5 |
| Adjustability | FIXED |
| Dropout Voltage1-Max | 0.3 V |
| Dropout Voltage1-Nom | 0.15 V |
| Input Voltage Absolute-Max | 6 V |
| Input Voltage-Max | 5.5 V |
| Input Voltage-Min | 4.3 V |
| JESD-30 Code | R-PSSO-G5 |
| Length | 10.16 mm |
| Line Regulation-Max | 0.00% |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 5 |
| Operating Temperature TJ-Max | 125 °C |
| Operating Temperature TJ-Min | -40 °C |
| Output Current1-Max | 0.3 A |
| Output Voltage1-Max | 3.399 V |
| Output Voltage1-Min | 0.099 V |
| Output Voltage1-Nom | 3.3 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TO-263 |
| Package Equivalence Code | SMSIP5H,.6,67TB |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Seated Height-Max | 5.13 mm |
| Surface Mount | YES |
| Technology | CMOS |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.7 mm |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Voltage Tolerance-Max | 3% |
| Width | 8.925 mm |
