Product Overview

The BS62LV8001 is a high performance , very low power  CMOS  Static Random Access Memory  organized  as  1,048,576  words by 8 bits and operates from a wide range of 2.4V to 5.5V supply voltage.Advanced CMOS technology and  circuit  techniques  provide  both  highspeed and low  power features with a typical  CMOS  standby current  of1.5uA at 3V/25oC and maximum access time of 55ns at 3.0V/85oC.Easy memory expansion is provided by an active LOW chip enable (CE1), an active HIGH chip enable (CE2) and  active LOW output  enable (OE) and three-state output drivers.

The BS62LV8001 has an automatic  power  down  feature, reducing thepower consumption significantly when chip is deselected.

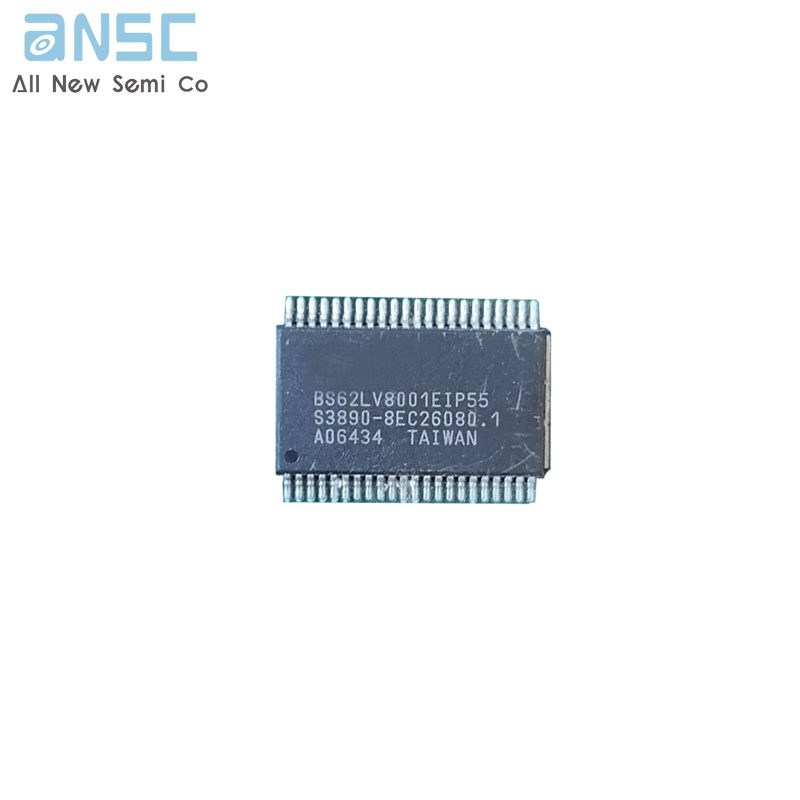

The BS62LV8001 is available in 48B BGA and 44L TSOP2 packages.

Product Features

• Wide Vcc operation voltage : 2.4V ~ 5.5V

• Very low power consumption :

Vcc = 3.0V

C-grade: 30mA (@55ns) operating current

I -grade: 31mA (@55ns) operating current

C-grade: 24mA (@70ns) operating current

I -grade: 25mA (@70ns) operating current

1.5uA (Typ.) CMOS standby current

Vcc = 5.0V

C-grade: 75mA (@55ns) operating current

I -grade: 76mA (@55ns) operating current

C-grade: 60mA (@70ns) operating current

I -grade: 61mA (@70ns) operating current

8.0uA (Typ.) CMOS standby current

• High speed access time :

-55          55ns

-70          70ns

• Automatic power down when chip is deselected

• Three state outputs and TTL compatible

• Fully static operation

• Data retention supply voltage as low as 1.5V

• Easy expansion with CE1, CE2 and OE options
