Products Features

Highly accurate; supports EN 50470-1, EN 50470-3,

IEC 62053-21, IEC 62053-22, and IEC 62053-23 standards Compatible with 3-phase, 3- or 4-wire (delta or wye), and other 3-phase services

Supplies total (fundamental and harmonic) active, reactive

(ADE7878, ADE7868, and ADE7858 only), and apparentenergy, and fundamental active/reactive energy (ADE7878 only) on each phase and on the overall system

Less than 0.1percent error in active and reactive energy over a dynamic range of 1000 to 1 at TA = 25°C

Less than 0.2percent error in active and reactive energy over a dynamic range of 3000 to 1 at TA = 25°C

Supports current transformer and di/dt current sensors

Dedicated ADC channel for neutral current input(ADE7868 and ADE7878 only)

Less than 0.1percent error in voltage and current rms over a dynamic range of 1000 to 1 at TA = 25°C

Supplies sampled waveform data on all three phases and on neutral current

Selectable no load threshold levels for total and fundamental active and reactive powers, as well as for apparent powers

Low power battery mode monitors phase currents for antitampering detection (ADE7868 and ADE7878 only)

Battery supply input for missing neutral operation

Phase angle measurements in both current and voltage channels with a typical 0.3° error

Wide-supply voltage operation: 2.4 V to 3.7 V

Reference: 1.2 V (drift +5 ppm/°C typical) with external overdrive capability

Single 3.3 V supply

40-lead lead frame chip scale package (LFCSP), Pb-free

Operating temperature: −40°C to +85°C

Flexible I2C, SPI, and HSDC serial interfaces

Products Applications

Energy metering systems

Products Descriptions

The ADE7854/ADE7858/ADE7868/ADE7878 are high accuracy, 3-phase electrical energy measurement ICs with serial interfaces and three flexible pulse outputs. The ADE78xx devices incorporate second-order sigma-delta (Σ-∆) analog-to-digital converters (ADCs), a digital integrator, reference circuitry, and all of the signal processing required to perform total (fundamental and harmonic) active, reactive (ADE7878, ADE7868, and ADE7858), and apparent energy measurement and rms calculations, as well as fundamental-only active and reactive energy measurement (ADE7878) and rms calculations. A fixed function digital signal processor (DSP) executes this signal processing. The DSP program is stored in the internal ROM memory.

Specifications

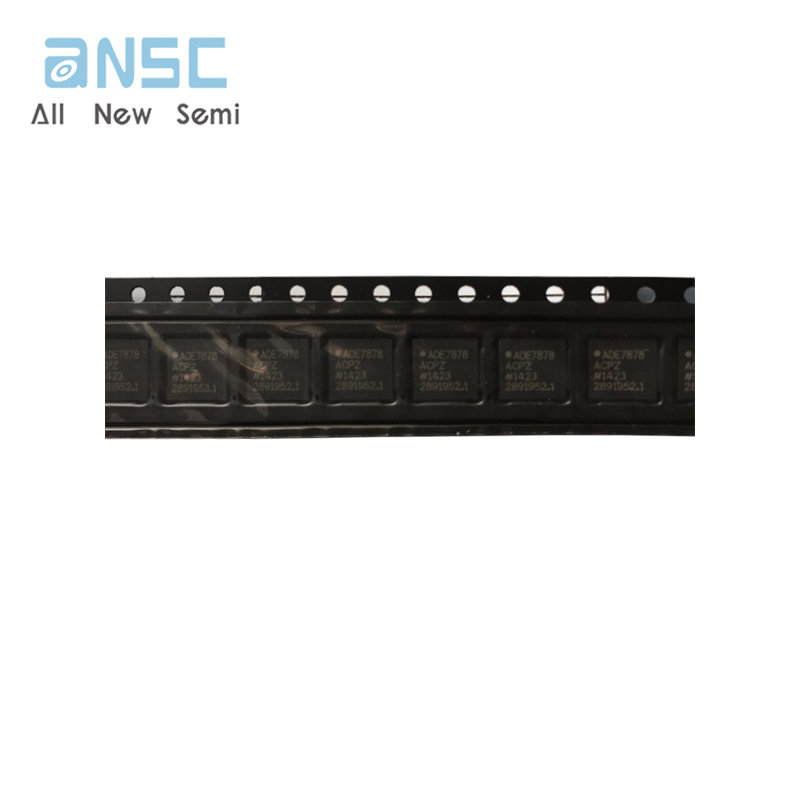

Actual product photos
