Product Description
| Type | Description |
| PART# | AD9789BBCZ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Settling Time | 13ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.14V ~ 3.47V |
| Voltage - Supply, Digital | 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V |
| INL/DNL (LSB) | - |
| Architecture | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 164-LFBGA, CSPBGA |
| Supplier Device Package | 164-CSPBGA (12x12) |
| Mounting Type | Surface Mount |
| Base Product Number | AD9789 |

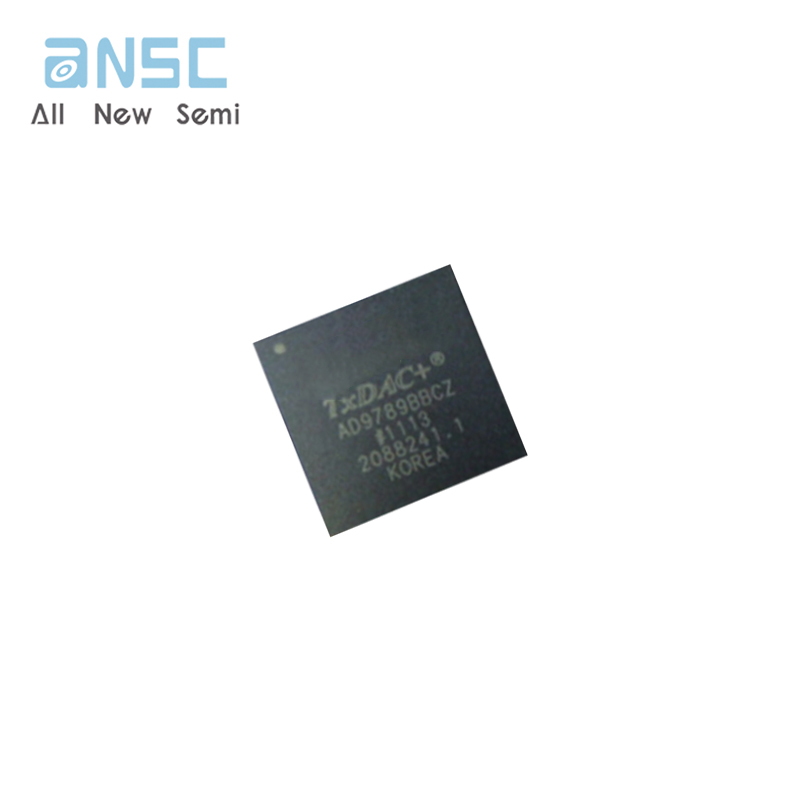

Product Photos
